Flexible Ventilation Duct

Quantity:
SKU: 1137644559
Model: 7374153694

{{ variable.name }}

{{ value.name }}

Product Specification

TypeLay Flat Duct, Oval Duct, Twin Duct, Tee Duct, Y-Piece Duct, Bend Duct, Adapter Duct.ModelФ760mm×10m, Ф1015mm×10m, Ф1400mm×10m, Ф1600mm×10m, Ф2800mm×100m etc.
ParamsDiameter: Ф200mm to Ф3200mm Section Length: 1m to 300m Tensile Strength: 1,000 N - 4,200 N Material Weight: 300 gsm - 2,000 gsm Performance: FR or FRAS Manufacturing process: Seamless one-piece fish-back welding automation technology Certification: ISO 9001, ATEX, CE, CNMA, SGS Test Reports.MaterialPVC Coated Fabric, PVC Laminated Fabric

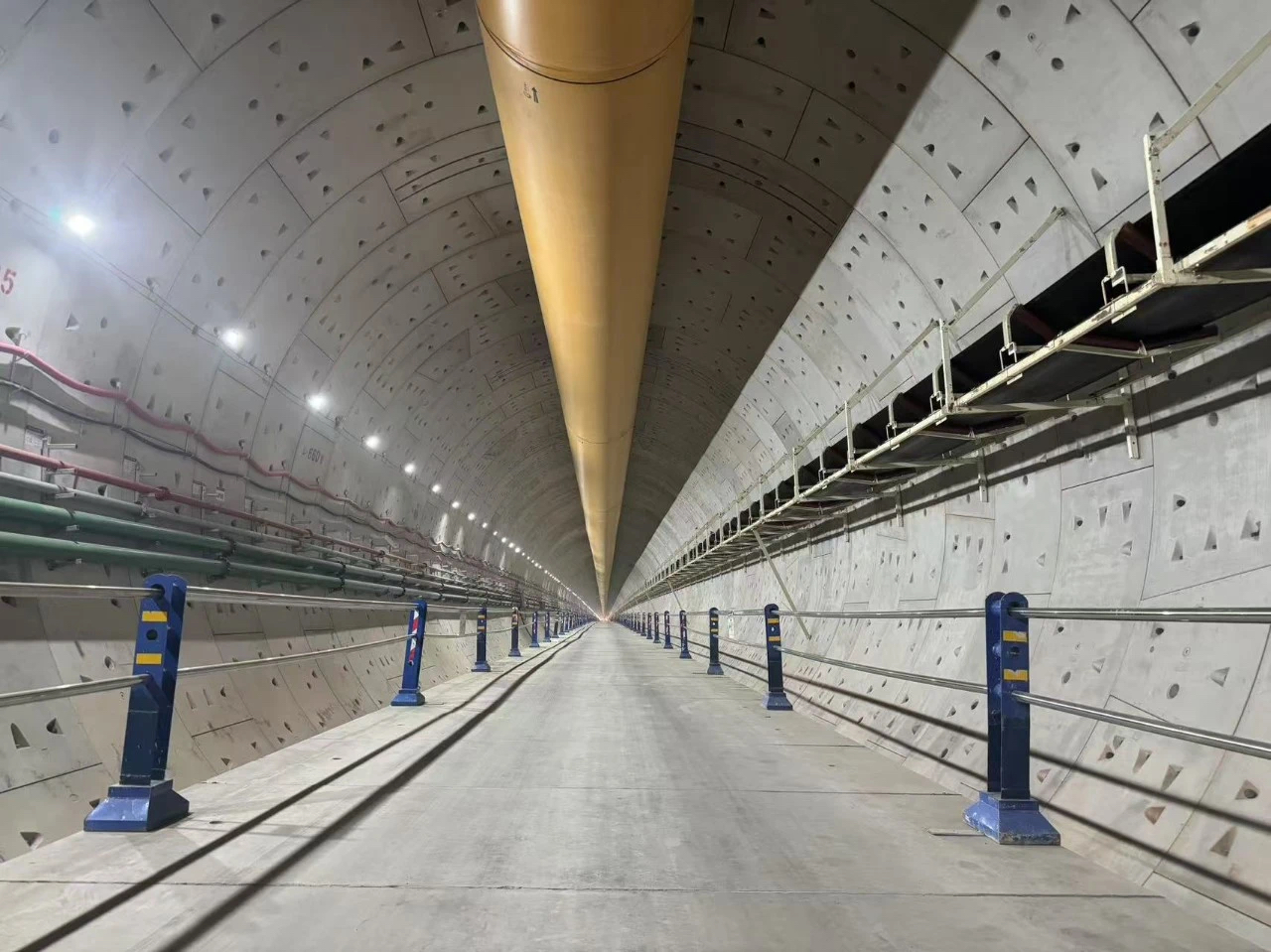

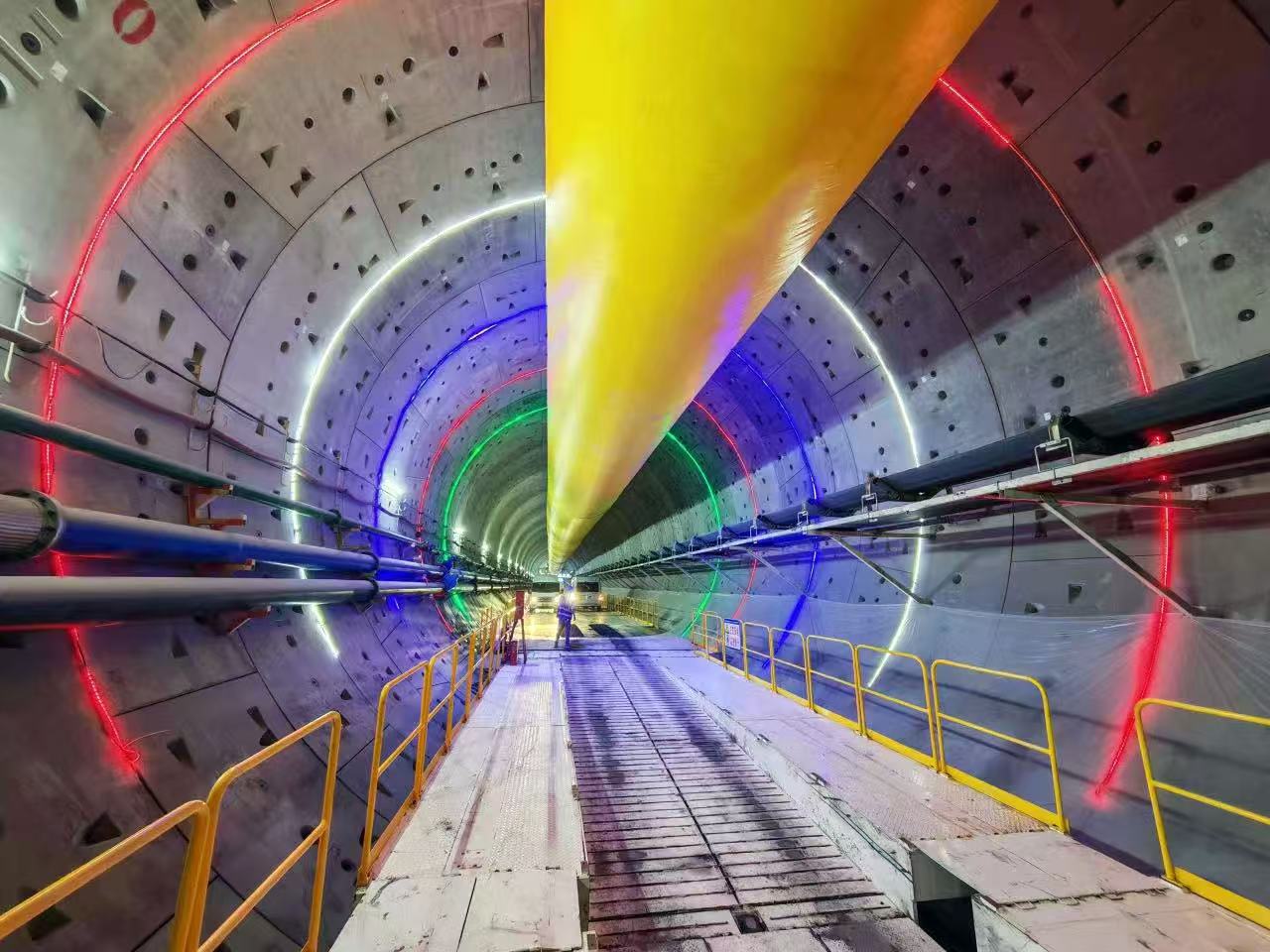

Applicable IndustryUnderground engineering projects such as mine projects, high-speed rail, subway, highway, hydropower station, rock cave, etc

Selling Point

• Nylon fabric with both sides PVC coated, Low friction loss, easy-installed. • High-strength welded construction provides exceptional airflow performance. • Flame retardant standards NFPA701:2015 and DIN 4102 B2 approved. • High tensile strength and tear strength approved by DIN53354 and DIN53363 test methods. • Diameter: 200 mm-3,200 mm (Custom diameter available). • Standard Length:1 m-300 m (Custom length available). • End connection: zipper / Velcro/ steel ring / eyelets. • Antistatic fabric optional.
