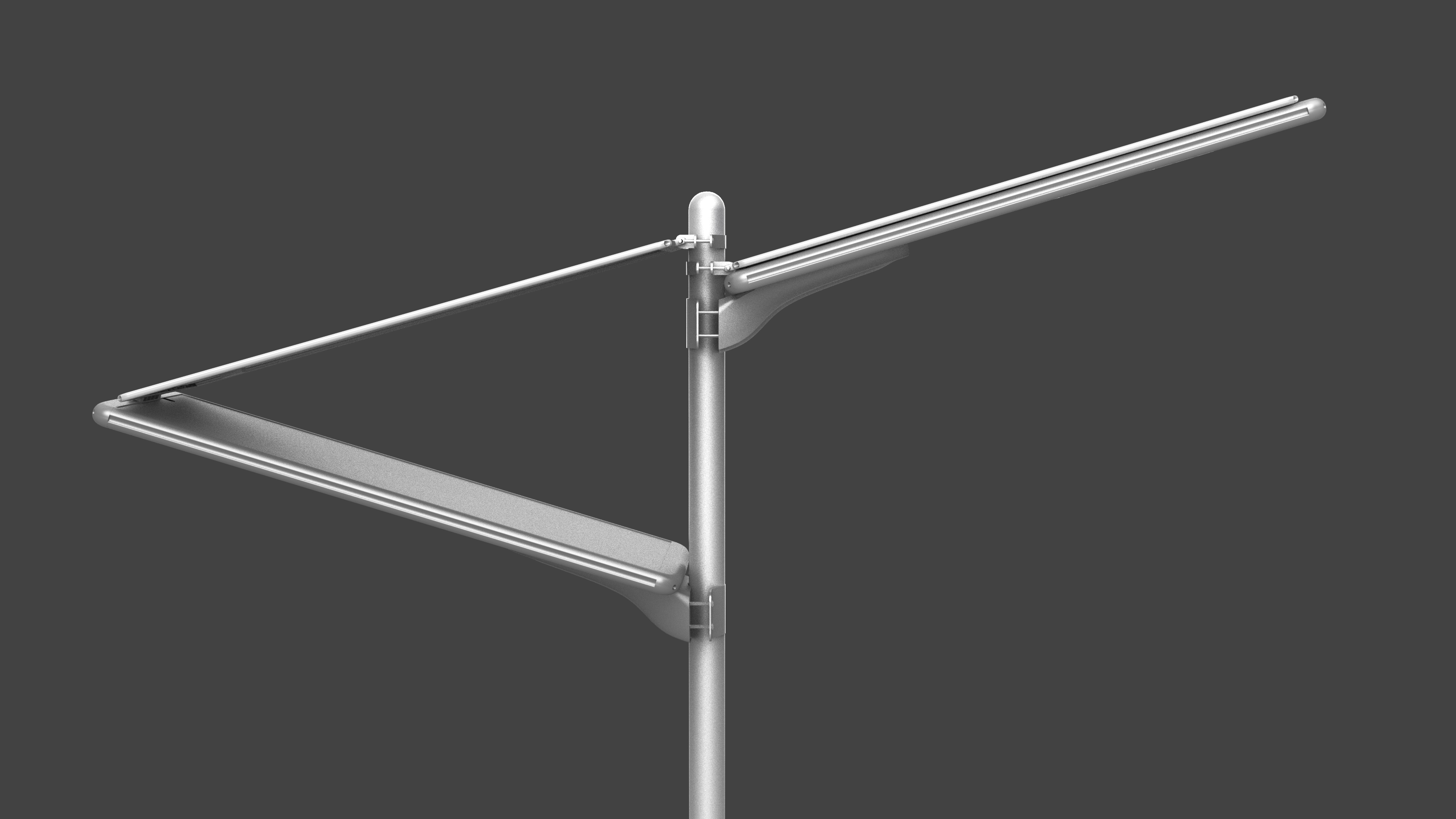

Palm Series ML-PALM-120: Foldable All-in-One Solar Street Light (60W LED)
This integrated solar street light combines a 160W double-sided monocrystalline solar panel, 60W LED light source, and 60Ah LiFePO4 battery in a die-cast aluminum housing. Designed for road and municipal lighting, it ensures reliable operation even during continuous rainy days.
Key Features
- ✔ High-Efficiency Solar Panel: Double-sided 160W monocrystalline panel captures more sunlight, increasing energy harvest.
- ✔ Long-Lasting Battery: LiFePO4 60Ah×12.8V battery provides stable power for 3-5 rainy days.
- ✔ Smart MPPT Controller: Maximizes solar charging efficiency and protects battery life.
- ✔ Versatile Control: Light, time, and microwave sensor control for adaptive lighting.
- ✔ Durable Construction: Die-cast aluminum housing with IP67 waterproof rating and IK10 impact protection.
Technical Specifications
| Parameter | Value |
|---|
| Solar Panel | 160W Double-sided Monocrystalline |
| LED Power | 60W (5050 Cree LED chip) |
| Battery | LiFePO4, 60Ah×12.8V |
| Controller | MPPT |
| CCT | 5000K (customizable 3500-6000K) |
| Working Time | 12 hours/night, 3-5 rainy days |
| Control Mode | Light/Time/Microwave sensor |
| Installation Height | 8-12m |
| Installation Distance | 30-35m |
| Certifications | CB, CE, IK10, FCC, IP67, SGS, COC, NSS |
| Housing | Die-cast Aluminum |
| Product Size | 1610*550*63mm |
Models and Options
Model ML-PALM-120 is part of the Palm Series, available in 40W/64W/100W/120W LED options. This specific variant features a 60W LED with 160W panel.
Materials and Structure
The lamp housing is made of die-cast aluminum, ensuring heat dissipation and durability. The foldable design allows for compact packaging and easy installation.
Applications
Ideal for municipal and public facilities, road lighting, and energy-saving projects. Suitable for highways, streets, parking lots, and residential areas.
Case Study
Peru City Road Lighting: A contractor purchased 1800 units of this solar street light for city roads. After 10 years, the lights have maintained stable operation with no decrease in brightness and long lighting time at night.
Qatar Seaside Road: 200 units were installed on a seaside road. The lights have been running stably for 10 years, with consistent brightness and extended nighttime illumination.
Customization
CCT (3500-6000K) and lighting modes can be customized. MOQ: 50 units. Delivery: EXW/FOB/CIF options.
FAQ
1. What is the MOQ?
The minimum order quantity is 50 units.
2. Can the color temperature be customized?
Yes, the CCT can be customized between 3500K and 6000K.
3. How does the microwave sensor control work?
The sensor detects movement and adjusts brightness automatically to conserve energy.
4. What certifications does the product hold?
CB, CE, IK10, FCC, IP67, SGS, COC, and NSS certifications are available.
5. How long does the battery last?
The LiFePO4 battery supports 3-5 rainy days of continuous operation.
6. What is the recommended installation height?
8-12 meters.
Inquiry Information
Contact Kim at +86 18823328907 or info@cmoonlight.com for pricing and delivery. Payment: 30% deposit, 70% balance before shipment.
