FreeScan Combo+ Wireless Handheld 3D Scanner with VPG and 93 Laser Lines

Name: "FreeScan Combo+ Wireless Handheld 3D Scanner with VPG and 93 Laser Lines"
Rating: 5 (466 reviews)

Quantity:

SKU: 5194561695

Model: FreeScan Combo+ Wireless / FreeScan Combo Wireless

SHINING 3D

Enter Shop

Product Details

Product Summary

The FreeScan Combo+ Wireless is a wireless hybrid light source metrology handheld 3D scanner featuring 93 laser lines, scan speeds up to 9,106,000 points/s, and built-in Video Photogrammetry (VPG). It delivers certified 0.02 mm accuracy in an ultra-compact 550g body, offering cable-free operation via Wi-Fi 7 for industrial inspection and reverse engineering.

Key Selling Points

High-Speed Scanning: 93 laser lines deliver up to 9,106,000 points/s at 180 FPS, accelerating data capture.
Built-in VPG: Patented video photogrammetry ensures volumetric accuracy of 0.02 mm + 0.015 mm/m, ideal for large parts.
Wireless Freedom: Wi-Fi 7 protocol provides stable, anti-interference data transmission across complex environments.
Compact & Lightweight: 550g body enables easy handling and access to confined spaces.
Versatile Scanning Modes: Five modes (93-line, 25-line, single-line, IR rapid) adapt to diverse part geometries.
Certified Accuracy: 0.02 mm accuracy per ISO 10360, tested in ISO/IEC 17025 accredited lab.

Technical Specifications

Accuracy	0.02 mm (0.0008 in)
Volumetric Accuracy	0.02 mm + 0.03 mm/m
Volumetric Accuracy with VPG	0.02 mm + 0.015 mm/m
Scan Speed	up to 9,106,000 points/s
Max FOV	580 x 650 mm
Working Distance	300 mm
Light Source	Blue laser + Infrared VCSEL
Scan Modes	93 laser lines (high-speed), 25 parallel lines (detailed), 1 single line (deep pockets), IR rapid scan
Frame Rate	180 FPS
Connection	Wi-Fi 7 / USB 3.0
Dimensions	189 x 81 x 53 mm
Net Weight	550 g
Working Temperature	-10 ~ 40 ℃
Working Humidity	10 ~ 90%
Battery	up to 2 hours continuous, hot-swappable with rapid-charging dock
VPG	Built-in (patented)
Real-time Mesh Display	Included
AI Feature Recognition	Included (holes, slots)
Intelligent Resolution	Included (auto-adjust based on curvature)
Data Quality Visualization	Included
Certifications	CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
Acceptance Test	ISO 10360 certified

Models and Options

FreeScan Combo+ Wireless (93 laser lines, 9,106,000 points/s) and FreeScan Combo Wireless (50 laser lines, 7,344,000 points/s). Both share 0.02 mm accuracy and VPG technology.

Materials and Structure

Compact body with blue laser and infrared VCSEL light sources. Lightweight 550g housing designed for handheld portability. Battery hot-swappable with rapid-charging dock.

Applications

Automotive, heavy industry, transportation, energy, aerospace, and manufacturing. Ideal for on-site quality control, inspection of large components, reverse engineering, and field measurements.

Automotive parts inspection without cable constraints
Large-scale casting and forging inspection with VPG
Confined space scanning (engine compartments, narrow structures)
Energy sector turbine and pipeline inspection
Reverse engineering of legacy parts in remote locations

Customization

Options for software integration and ancillary equipment. Consult our team for your specific application requirements.

FAQ

How does Wi-Fi 7 transmission work?

It uses next-generation Wi-Fi 7 with anti-interference technology for stable wireless data transfer in industrial environments, with USB 3.0 as a backup.

What is the difference between Combo+ and Combo Wireless?

The Combo+ has 93 laser lines and 9.1M points/s; the Combo has 50 lines and 7.3M points/s. Accuracy and VPG are the same.

How long does the battery last?

Up to 2 hours of continuous scanning, hot-swappable with optional rapid-charging dock.

Does it require coded markers for large objects?

No, built-in VPG eliminates coded markers while maintaining accuracy.

What software is compatible?

SHINING3D Inspect, FreeScan Software, Polyworks, Geomagic Control X, and more.

Is it suitable for outdoor use?

Yes, works in -10°C to 40°C and 10-90% humidity, ideal for field environments.

Inquiry Information

MOQ: 1 unit. Delivery: FOB / CFR / DAP / FCA. Payment: 100% Advance / Installment. Contact us for a quote and lead time.

Product Images

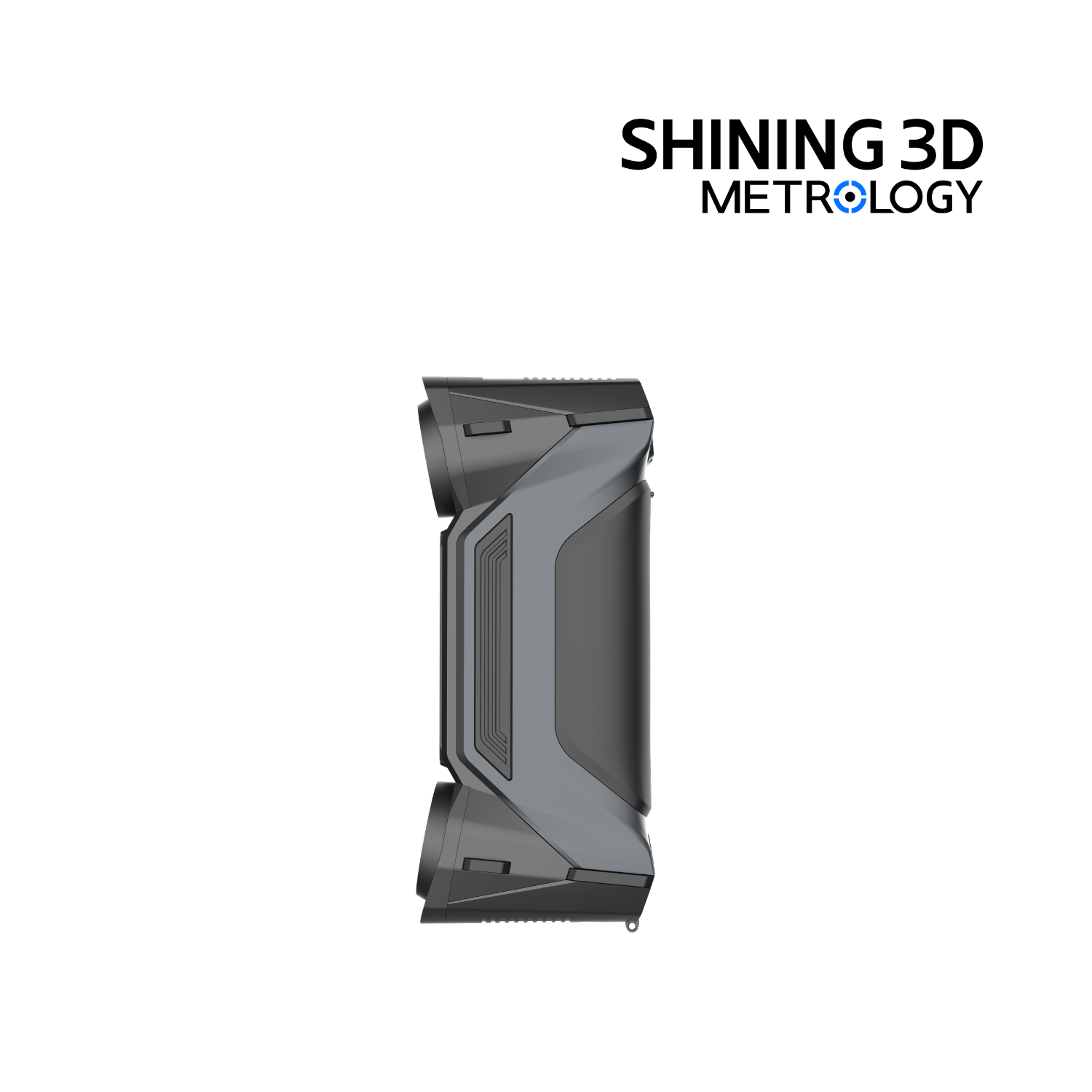

FreeScan Combo+ Wireless 3D scanner front view — FreeScan Combo+ Wireless main unit

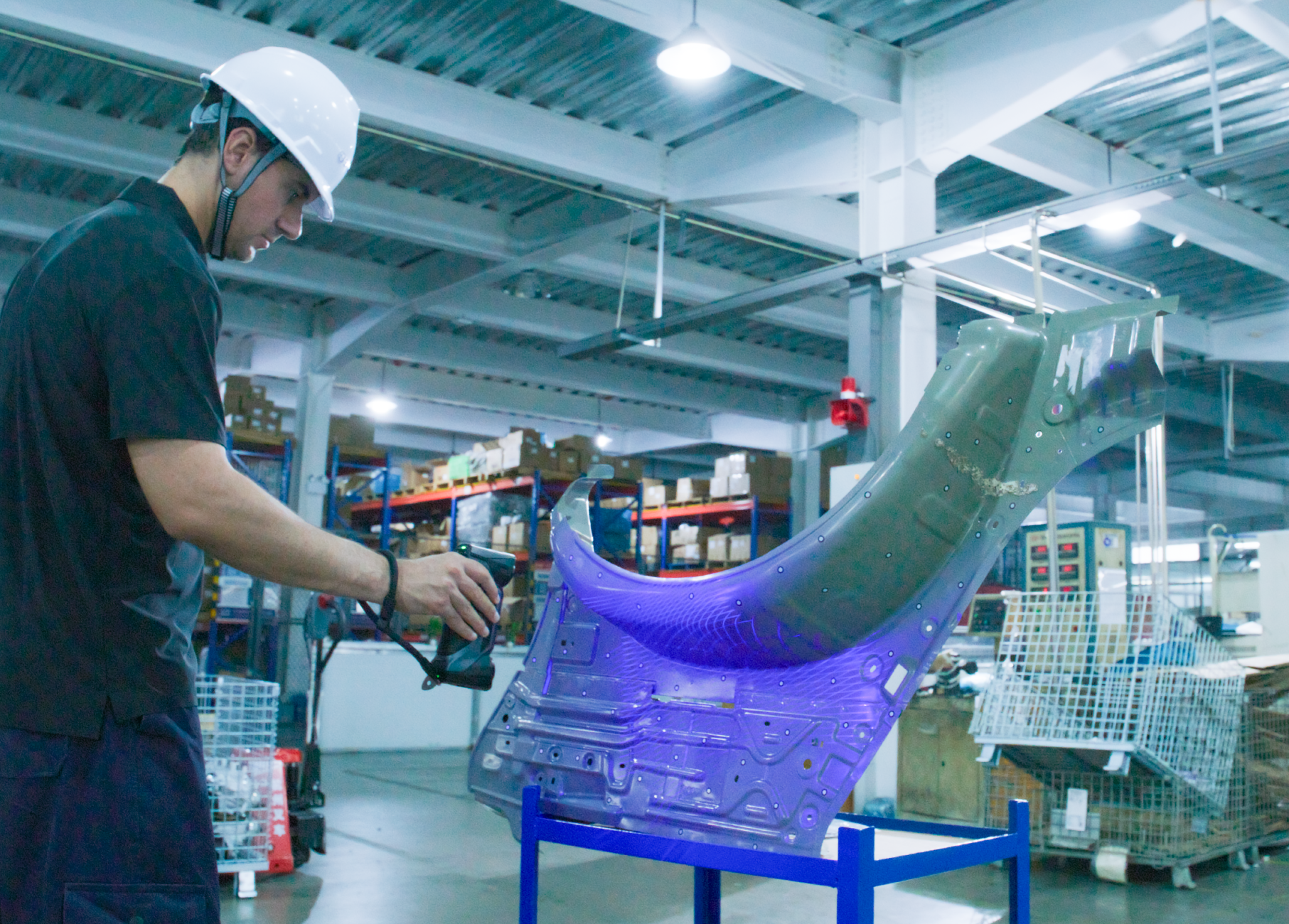

Wi-Fi 7 wireless data transmission on FreeScan Combo+ Wireless — Wireless data transfer capability

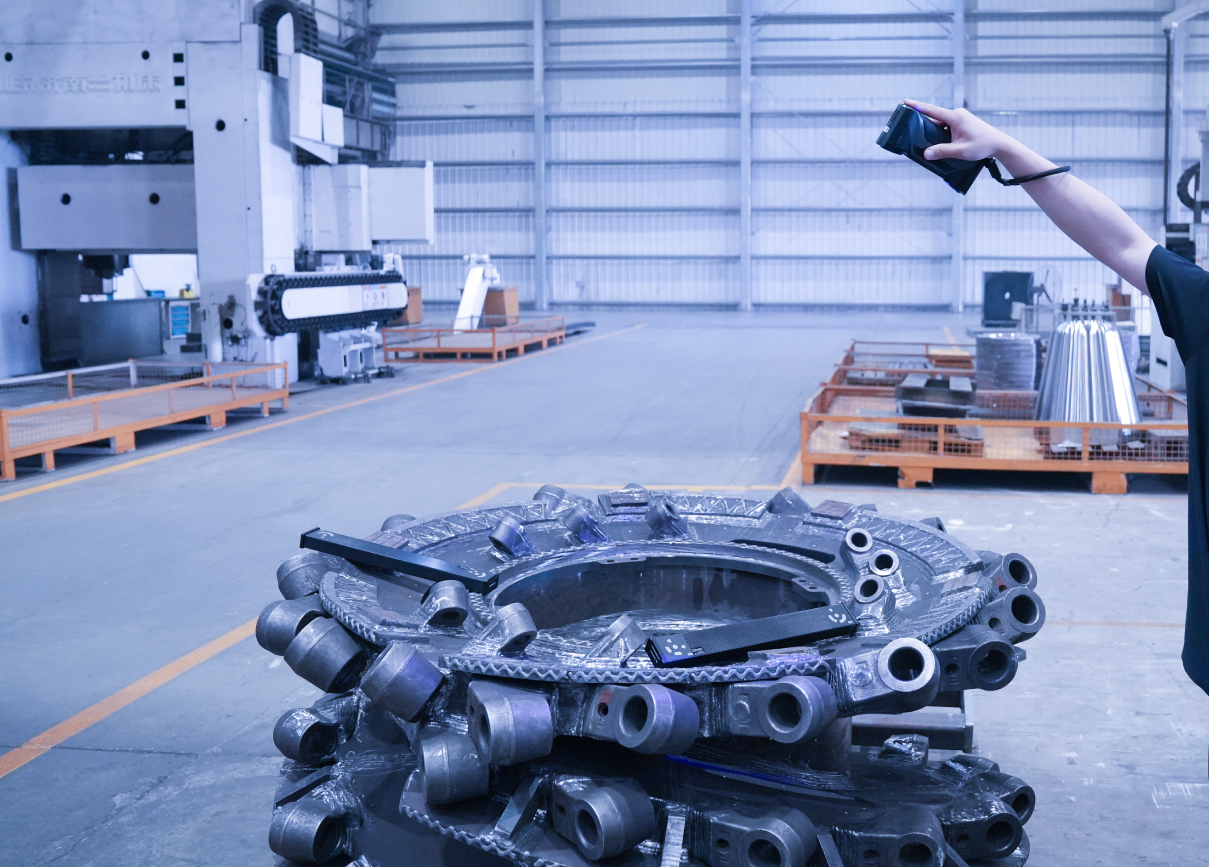

Built-in Video Photogrammetry on FreeScan Combo+ Wireless — VPG technology for marker-free accuracy
