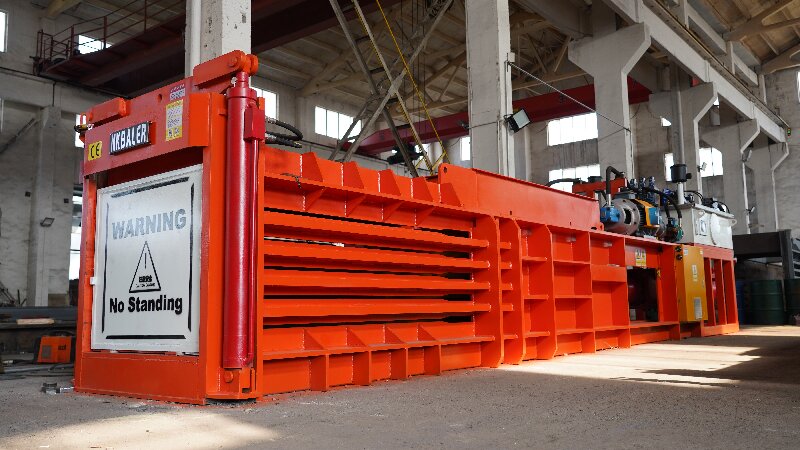

The NKW125BD fully automatic horizontal baler delivers high-volume baling with PLC-controlled continuous operation. This machine is engineered for 24/7 industrial duty, processing up to 7 tons per hour with a powerful 125-ton hydraulic press. Designed with a carbon steel structure and advanced cooling systems, it meets the demands of modern recycling and waste management facilities.
High Capacity: Capable of processing 5-7 tons per hour, ideal for large-scale operations.
Energy Efficient: Uses 30KW power, balancing performance with energy consumption.
Robust Cooling: Water/oil chiller prevents overheating, even under high ambient temperatures.
CE Certified: Compliance with EN ISO 12100:2010 and EN 60204-1:2018 for safety and reliability in European markets.
Technical Specifications
Parameter
Value
Model
NKW125BD
Hydraulic Power
125 Ton
Cylinder Size
Ø250-4300 mm
Bale Size (W×H×L)
1100×1250×1700 mm
Feed Opening (L×W)
2000×1100 mm
Capability
5-7 T/hour
Power
30 KW / 40 HP
Bale Wire
10# × 5 PCS
Cooling System
Cooling Fan / Water Cooling / Oil Chiller
Machine Weight
18,000 KG
Conveyor Length×Width
12,000 mm × 1,800 mm
Conveyor Power
4.5 KW
Conveyor Weight
4,500 KG
Working Pressure
20 MPa
Material
Carbon Steel
Models and Options
Full-Automatic Configuration
Standard model includes PLC control for automatic bale cycle, reducing manual intervention.
Semi-Automatic Configuration
Available for operations preferring manual loading and tying control, offering cost savings.
Materials and Structure
Constructed with a heavy-duty carbon steel frame, the NKW125BD ensures durability in rigorous environments. The machine incorporates a 12-meter conveyor for efficient material feeding, and the hydraulic cylinder has a diameter of 250 mm and stroke of 4300 mm. Cooling options can be selected based on installation environment.
Applications
Suitable for applications requiring continuous compaction and packaging, including waste treatment, recycling centers, chemical plants, and metal processing. The machine's PLC control enables precise cycle management, making it ideal for high-volume operations that run around the clock.
Customization
We offer customization in automation level (semi- or full-automatic), conveyor length, cooling system type, and bale wire configuration. This allows the baler to be tailored to specific material types and production goals.
FAQ
Q: Can the baler be operated continuously?
A: Yes, it is designed for 24/7 continuous operation with PLC control.
Q: What is the machine's power consumption?
A: The power is 30KW (40HP).
Q: How does it handle hot environments?
A: The water/oil chiller cooling system maintains optimal oil temperature.
Q: What is the MOQ?
A: MOQ is 1 unit.
Q: What payment terms are accepted?
A: Payment is 40% deposit and 60% before shipment.
Q: Is pre-shipment testing available?
A: Yes, we perform pre-shipment testing on all machines.
Q: What certifications are held?
A: The machine has CE certification per EN ISO 12100:2010 and EN 60204-1:2018.
Q: Can the machine handle different materials?
A: Yes, it is adaptable for food, pharmaceuticals, chemicals, metals, and waste materials.
