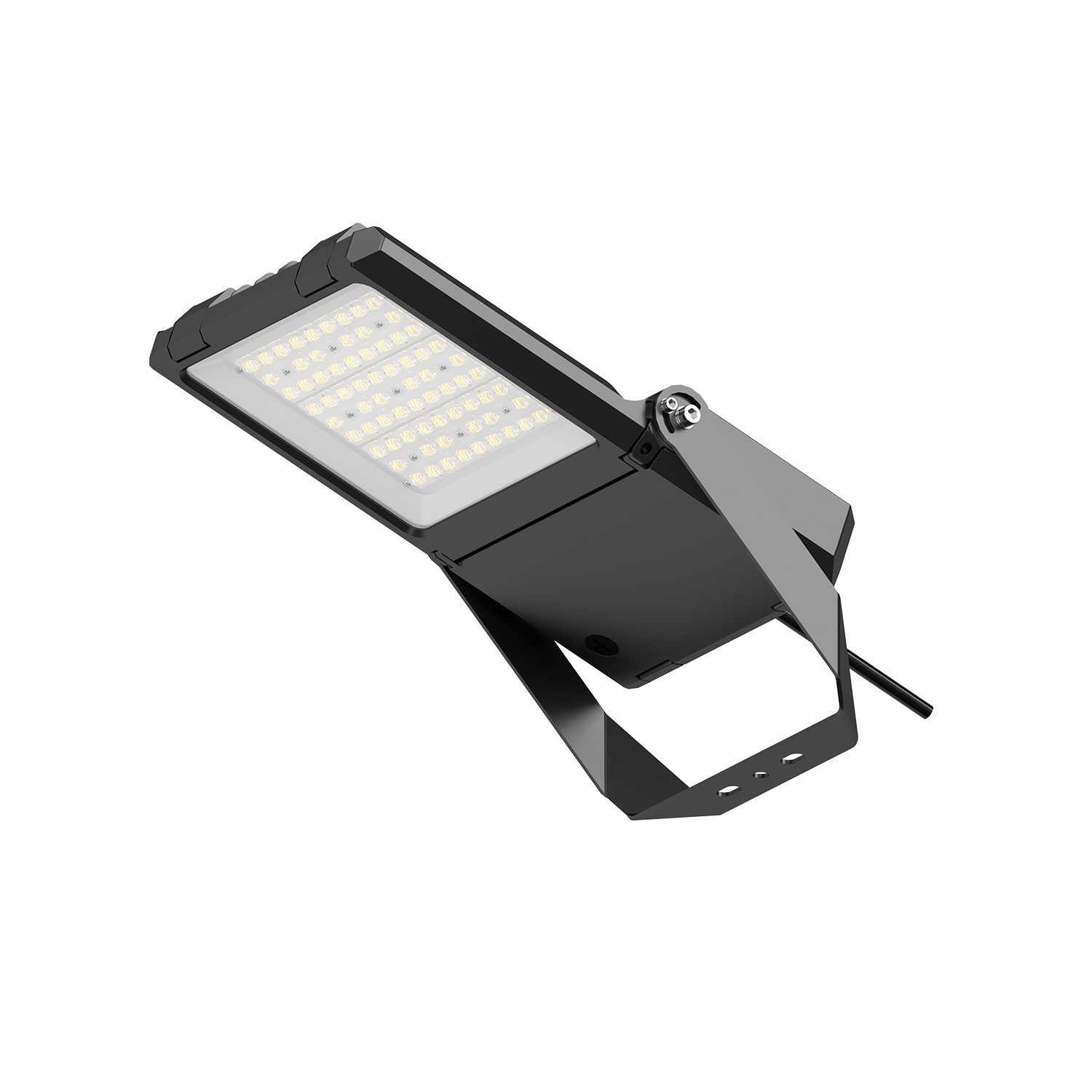

High Efficiency IP66 LED Flood Light with Trunnion Mount
Product Summary
This LED Flood Light (model FLC) features a trunnion mount for fixed installations. It provides up to 200 lm/W efficacy and comes with IP66 and IK08 ratings, ensuring reliability in outdoor environments. The die-casting aluminum housing and glass lens offer robust protection. This variant is ideal for applications where a fixed angle is required, such as building facades, billboards, and perimeter lighting.
Key Selling Points
- Energy Efficient: Up to 200 lm/W reduces power consumption significantly.
- Durable Design: IP66 dustproof and water-resistant, IK08 impact resistance.
- Fixed Mounting: Trunnion mount provides a stable, adjustable-angle installation.
- Long Lifespan: 5-year standard warranty and optional 10-year extension ensure lasting performance.
- Smart Control Compatible: Works with 0-10V dimming systems.
Technical Specifications
| Parameter | Value |
|---|
| Efficacy | Up to 200 lm/W |
| CCT | 3000K / 4000K / 5000K |
| CRI | Ra70 / Ra80 |
| IP / IK Rating | IP66 / IK08 (with glass) |
| Beam Angles | 15° / 30° / 45° / 60° / 90° / 120° / T2 (60×150°) / T3 (70×150°) / T4 (70×150°) |
| Dimming | 0-10V, dim down to 10% |
| LED Types | 2835 / 3030 / 5050 |
| Warranty | 5-year standard, 10-year optional |
Models and Options
The FLC series offers multiple CCT and CRI options, as well as a wide range of beam angles to suit different lighting designs. LED types can be customized.
Materials and Structure
Die-casting aluminum body with tempered glass lens. The trunnion mount allows precise aiming and is made of galvanized steel for corrosion resistance.
Applications
Suitable for sports facilities, industrial plants, parking lots, and security lighting. Used in projects such as the wood processing factory lighting in Germany (96 units).
Customization
Custom beam angles, mounting accessories, and color temperatures available on request.
Case Study
Wood Processing Factory (Germany): 96 units installed, improving night visibility and energy efficiency while replacing traditional HID lamps.
FAQ
Can I adjust the angle after installation?
Yes, the trunnion mount allows vertical adjustment from -45° to +45°.
What is the input voltage?
Standard voltages are 100-277V AC or 200-480V AC, please specify.
Does it come with surge protection?
Yes, optional SPD for circuit protection is available.
What are the available beam angles?
We provide 15° to 120° plus asymmetric distributions like T2/T3/T4.
Can it be used in marine environments?
Yes, with optional UV-resistant powder coating, it is suitable for seaports.
What is the MOQ?
MOQ varies depending on product type; contact us for details.
Inquiry Information
Contact Wally at info@aokledlight.com or +86-755-23579418. Payment terms: 30% T/T advance, 70% before shipment, or LC.
