Aluminum Honeycomb Plate CNC Nesting Machine HK Model
The HK model CNC nesting machine is specifically engineered for processing aluminum honeycomb plates used in panel furniture. With a working area of 2800x1220mm, it handles large panels efficiently. The machine achieves a rapid X-axis speed of 120m/min and Z-axis speed of 30m/min, ensuring high throughput. Constructed with a robust carbon steel frame, it offers stability and precision for demanding woodworking applications.
Key Selling Points
- High-Speed Machining: X-axis speed of 120m/min reduces processing time, increasing productivity for panel furniture manufacturers.
- Comprehensive Drilling: Equipped with 10 vertical top drills, 8 horizontal top drills, and 9 bottom vertical drills, enabling complex hole patterns in a single setup.
- Large Work Area: Handles panels up to 2800x1220mm, accommodating standard sheet sizes for furniture production.
- Sturdy Construction: Carbon steel frame provides durability and reduces vibration, ensuring consistent accuracy.
- Woodworking Optimized: Designed specifically for woodworking, with dust-proof features suitable for workshops.
Technical Specifications
| Working Length X-axis | 2800mm |
| Working Length Y-axis | 1220mm |
| Working Height Z-axis | 50mm |
| Max Speed X-axis | 120m/min |
| Max Speed Z-axis | 30m/min |
| Max Speed Y-axis | 80m/min |
| Min Processing Size | 140x40mm |
| Max Processing Size | 2800x1220mm |
| Top Drilling Tools (Vertical) | 10 pcs |
| Top Drilling Tools (Horizontal) | 8 pcs (XY) |
| Bottom Drilling Tools (Vertical) | 9 pcs |
| Machine Size | 5200x2900x2300mm |
| Weight | 3500 KGS |
Models and Options
This HK model is the standard configuration. Variations may be available based on specific requirements; contact us for details.
Materials and Structure
The machine frame is made of carbon steel, ensuring structural integrity and longevity for industrial use.
Applications
Primarily used in the woodworking industry for panel furniture manufacturing, especially for processing aluminum honeycomb plates used in cabinets and doors.
Customization
Customization options may be available to suit specific production needs. Please contact our sales team for more information.
Case Study
A panel furniture manufacturer in Kenya (KE) operates 3 units of this machine in their edge banding and CNC router workshops for 2 years. The result: edge banding quality improved significantly, and output increased.
FAQ
What is the maximum panel size the machine can process?
The maximum processing size is 2800x1220mm, suitable for standard large panels.
Does the machine come with CE certification?
Yes, the machine complies with EU CE standards (Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU), certificate number HTT202405661L.
What is the minimum order quantity (MOQ)?
The MOQ is 1 unit.
What are the payment terms?
The payment term is TT (Telegraphic Transfer).
Is pre-shipment testing available?
Yes, pre-shipment testing is available to ensure quality.
What is the delivery method?
The delivery method is FOB.
Does the machine come with a warranty?
Warranty details are not specified; please contact us for more information.
Inquiry Information
For more details or to request a quote, please contact us at:
Email: zywoodmachine@163.com / vanessa293199@139.com
Phone/WhatsApp: +86 15019677504 / +86 13929919431

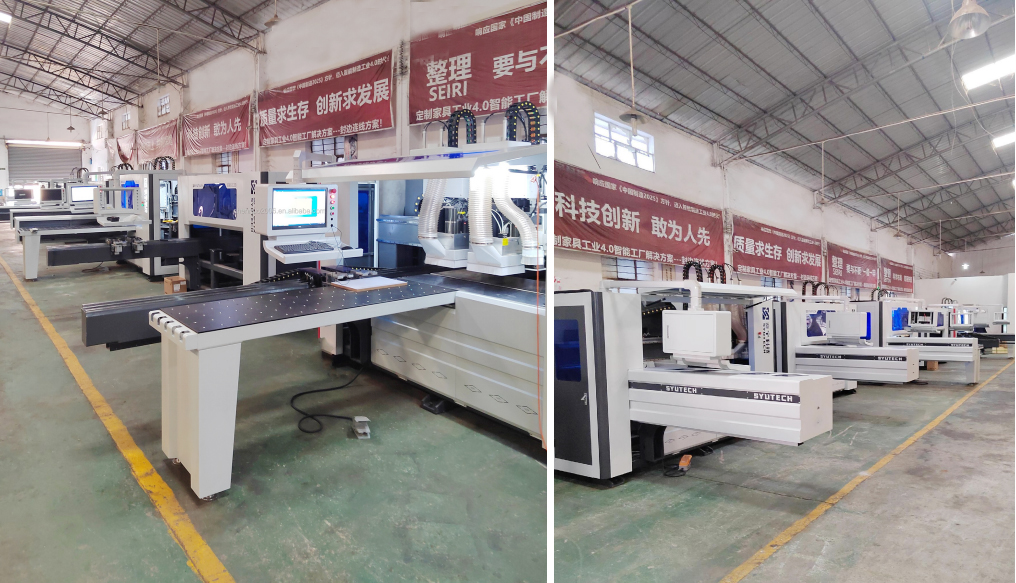

Image Gallery
