| Type | Double-Outlet High-Speed Tablet Press | Model | GZPK620-45 / GZPK620-55 / GZPK620-65 |
| Params | Number of stations: 45/55/65; Maximum main compression: 100 kN; Maximum pre-compression: 30 kN; Maximum tablet diameter: 25/16/13 mm; Maximum filling depth: 20/20/16 mm; Maximum output: 378,000/528,000/624,000 tablets/h; Motor: 11 kW; Power supply: 380 V, 3-phase, 50 Hz; Dimensions: 1400 × 1500 × 1900 mm; Net weight: 3,300 kg. | Material | Stainless steel |
| Applicable Industry | Pharmaceuticals, nutraceuticals, and tablet manufacturing | ||
• Two discharge outlets • HMI display of main compression, individual punch pressure, filling depth, speed, output, and lubrication • Automatic weight control (AWC) • Automatic reject-tablet removal

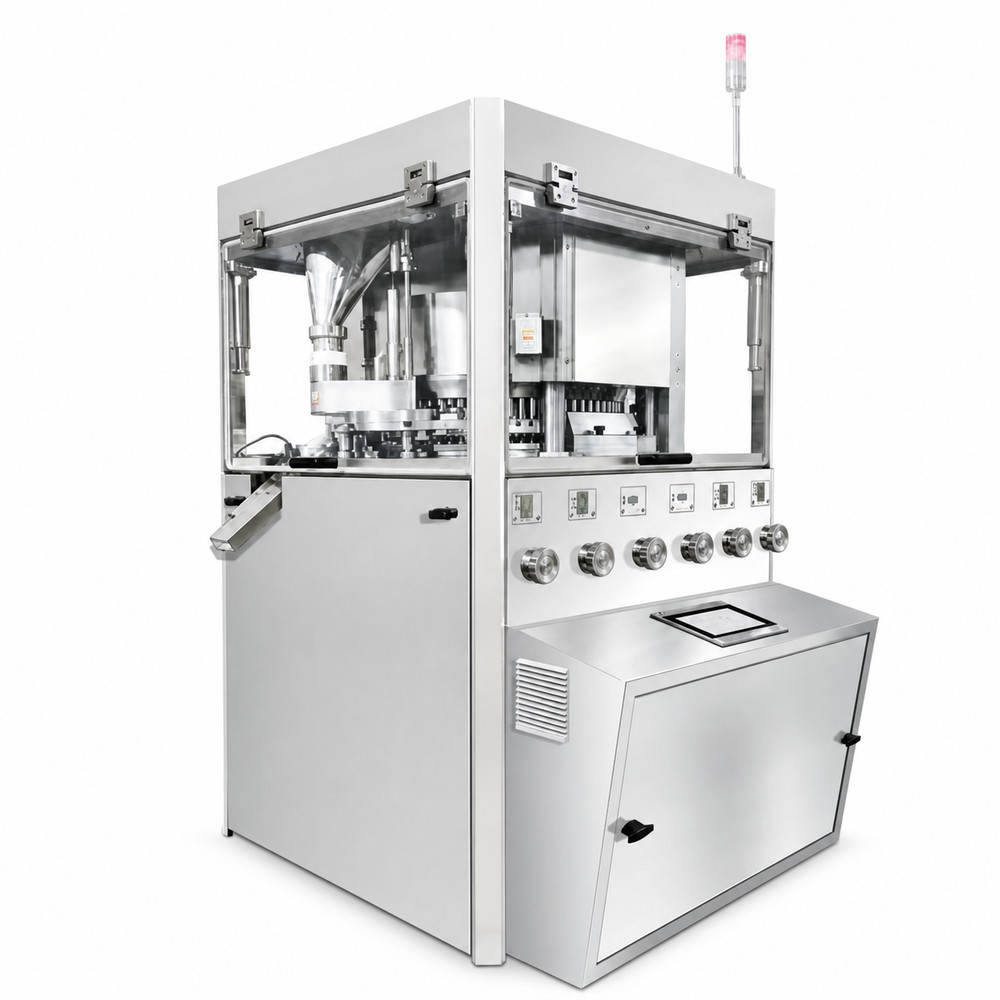

High-Speed Rotary Tablet Press - GZPK620-45 / GZPK620-55 / GZPK620-65
