High-Speed Rotary Tablet Press

Quantity:
SKU: 3418070434
Model: 0737397675

{{ variable.name }}

{{ value.name }}

Product Specification

TypeDouble-Outlet High-Speed Tablet PressModelGZPK720-51 / GZPK720-65 / GZPK720-83 / GZPK720-99
ParamsNumber of stations: 51/65/83/99; Maximum main/pre-compression force: 100/100 kN; Maximum tablet diameter: 25/16/13/10 mm; Maximum filling depth: 20 mm; Maximum output: 306,000-712,800 tablets/h; Motor: 11 kW; Power supply: 380 V, 3-phase, 50 Hz; Dimensions: 1300 × 1300 × 2000 mm; Net weight: 5,500 kg.MaterialStainless steel
Applicable IndustryPharmaceuticals, nutraceuticals, and tablet manufacturing

Feature

• High-speed production through two discharge outlets • Optional interchangeable turret • HMI adjustment of pressure, tablet thickness, filling depth, speed, output, and lubrication • Automatic weight control (AWC) and reject-tablet removal

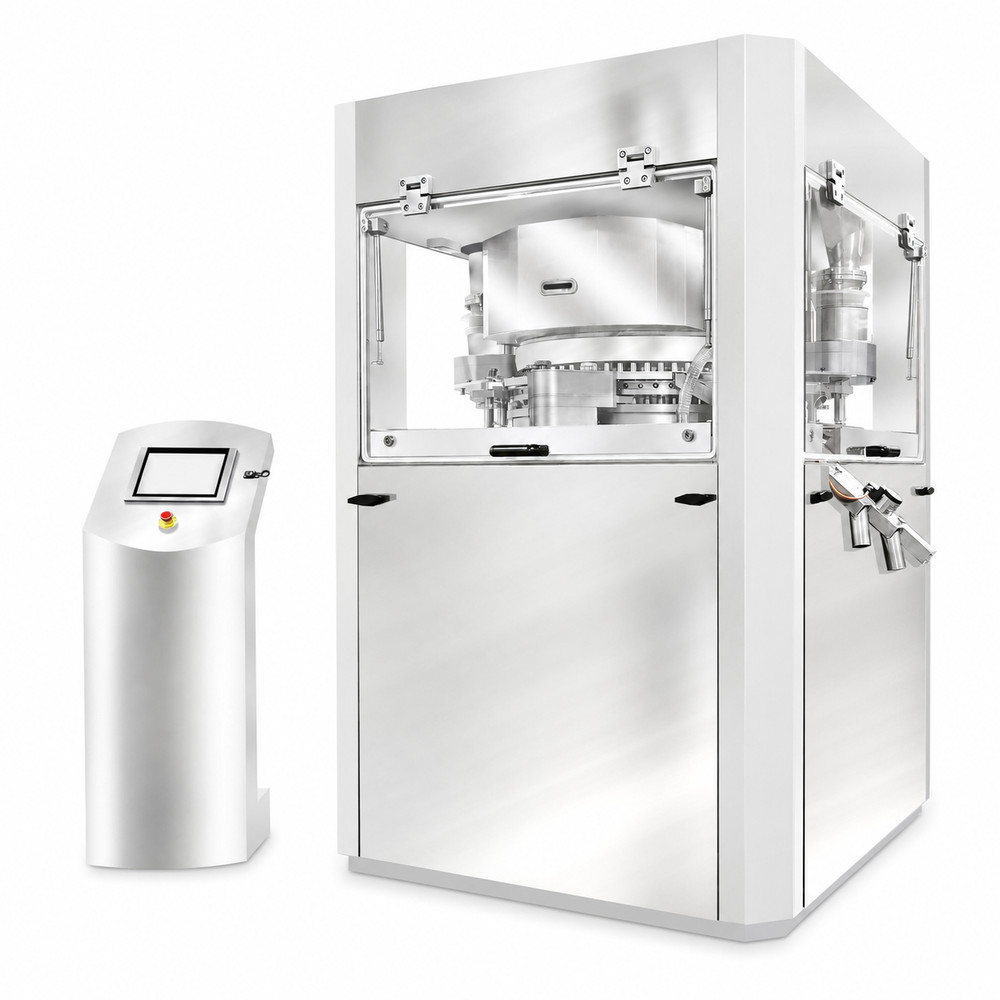

High-Speed Rotary Tablet Press - GZPK720-51 / GZPK720-65 / GZPK720-83 / GZPK720-99
