High-Speed Rotary Tablet Press

Quantity:
SKU: 4865317260
Model: 0304705373

{{ variable.name }}

{{ value.name }}

Product Specification

TypeSingle-Outlet High-Speed Tablet PressModelGZPK280-20 / GZPK280-24 / GZPK280-30
ParamsNumber of stations: 20/24/30; Maximum main/pre-compression force: 100/100 kN; Maximum tablet diameter: 25/16/13 mm; Maximum output: 96,000/158,400/198,000 tablets/h; Motor: 7.5 kW; Power supply: 380 V, 3-phase, 50 Hz; Dimensions: 900 × 1160 × 1875 mm; Net weight: 1,500 kg.MaterialStainless steel
Applicable IndustryPharmaceuticals, nutraceuticals, and tablet manufacturing

Feature

• One discharge outlet • Optional interchangeable turret or compatibility with D, B, and BB tooling on one turret • HMI adjustment of main compression, individual punch pressure, filling depth, speed, output, and lubrication • Automatic weight control (AWC) and reject-tablet removal

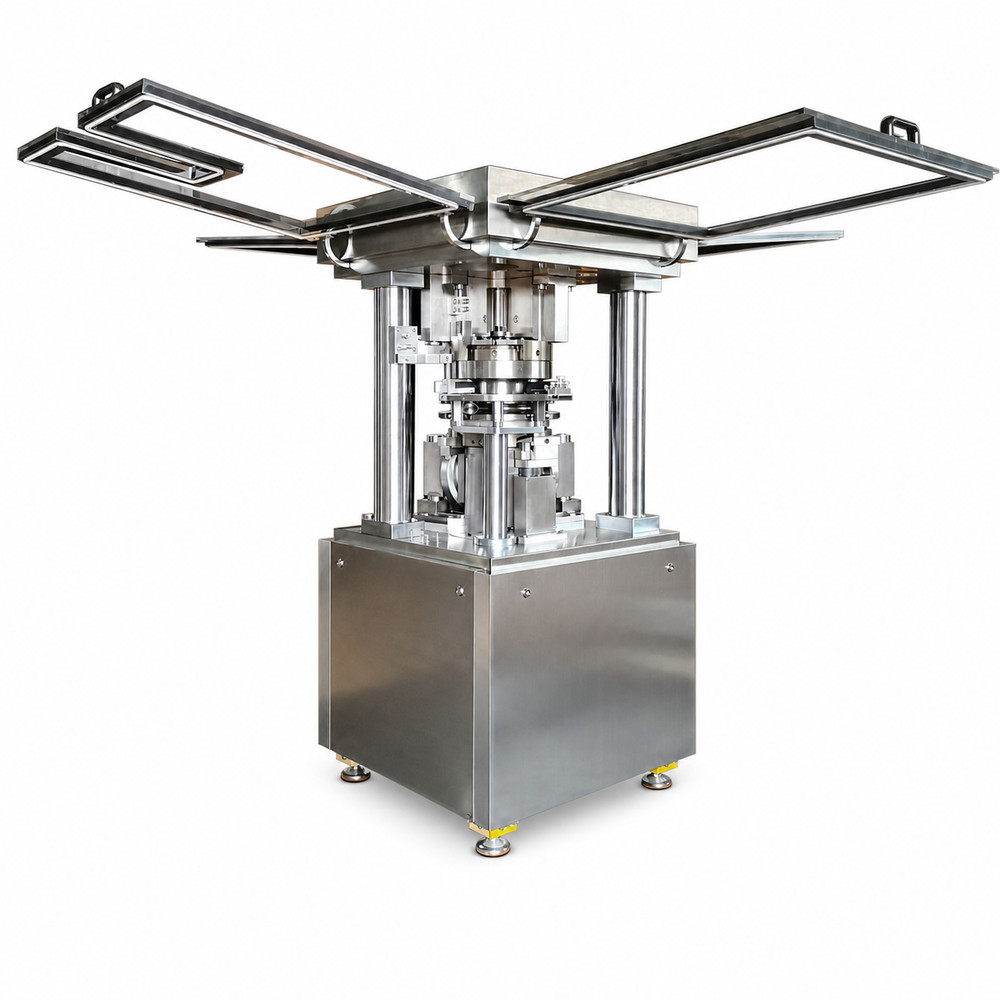

High-Speed Rotary Tablet Press - GZPK280-20 / GZPK280-24 / GZPK280-30

High-Speed Rotary Tablet Press - GZPK280-20 / GZPK280-24 / GZPK280-30
