Induction Heater

Quantity:
SKU: 4564734245
Model: 5901194373

{{ variable.name }}

{{ value.name }}

Product Specification

Type3.5kW/5kW/6kW/220V Induction HeaterParamsRated power:Single-phase 3.5kW/5kW/6kW Rated input current:3.5kW (15-16A)、5KW (20-22A)、6KW (22-27A) Rated output current:3.5kW (20-25A)、5KW (20-30A)、6KW (55A) Rated voltage frequency:AC 220V/50Hz Voltage adaptation range:100V ~ 260V, constant power output at 210 ~ 260V Adapt to ambient temperature:-20ºC~50ºC Adapt to environmental humidity:≤95% Power adjustment range:20% ~ 100% stepless adjustment(That is: Adjustment between 0.5 ~ 5KW/6KW) Heat conversion efficiency:≥95% Effective power:;≥98% working frequency:5~40KHz Main circuit structure:Half-bridge series resonance Control System:DSP-based high-speed automatic phase-locking tracking control system Application mode:Open application platform Monitor:Programmable digital display start time:<1S Instantaneous overcurrent protection time:≤2US Power overload protection:130% instantaneous protection Soft start mode:Fully electrically isolated soft start heating / stop mode Support PID adjustment power:Identify 0-5V input voltage Support 0 ~ 1000 ºC load temperature detection:Accuracy up to ± 1 ºC Adaptive coil parameters:3.5KW 6 square line, length 20m, inductance 80-100uH; Adaptive coil parameters:5KW 10 square line, length 15m, inductance 60-75uH; 6KW 10 square line, length 13m, inductance 60-65uH
MaterialCore heating coil: Copper wire. Outer casing: Thickened aluminum alloy, thickened cold-rolled steel plate. Inner liner: 304 stainless steel.Applicable IndustryIt can be widely used in high-efficiency heating equipment such as plastic machinery, food machinery, and commercial induction cookers.

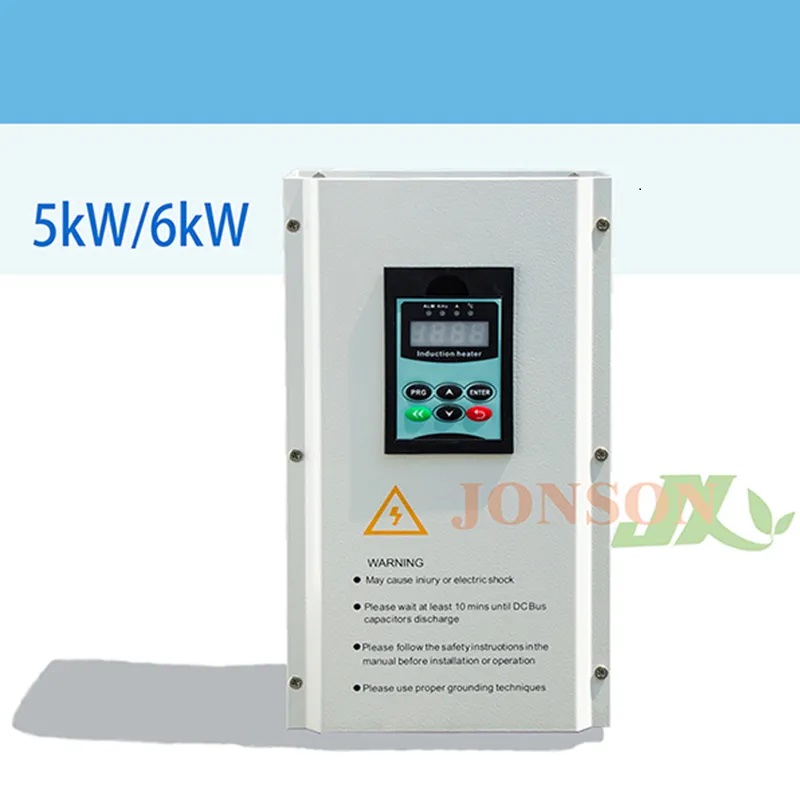

Induction Heater 5KW 6KW

Induction Heater 5KW 6KW

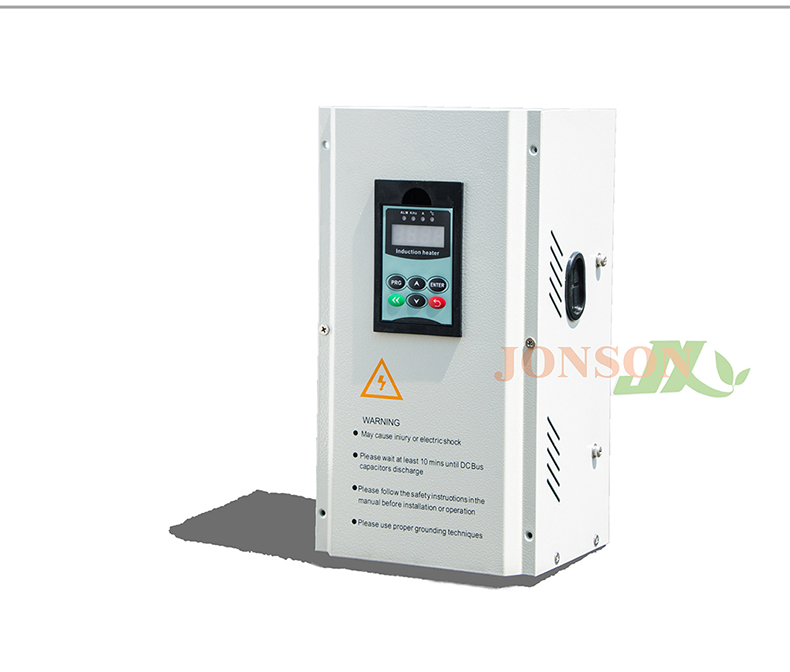

Induction Heater.

Induction Heater.


Induction Heater 5KW 6KW

Induction Heater 5KW 6KW


Induction Heater-4

Induction Heater-4

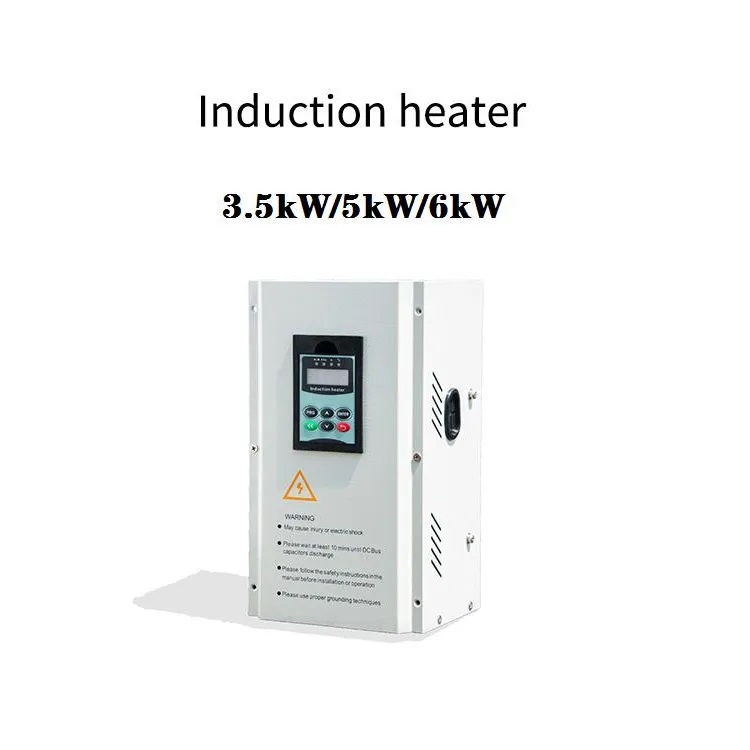

Induction Heater 3

Induction Heater 3


Induction Heater

Induction Heater


Induction Heater-1

Induction Heater-1

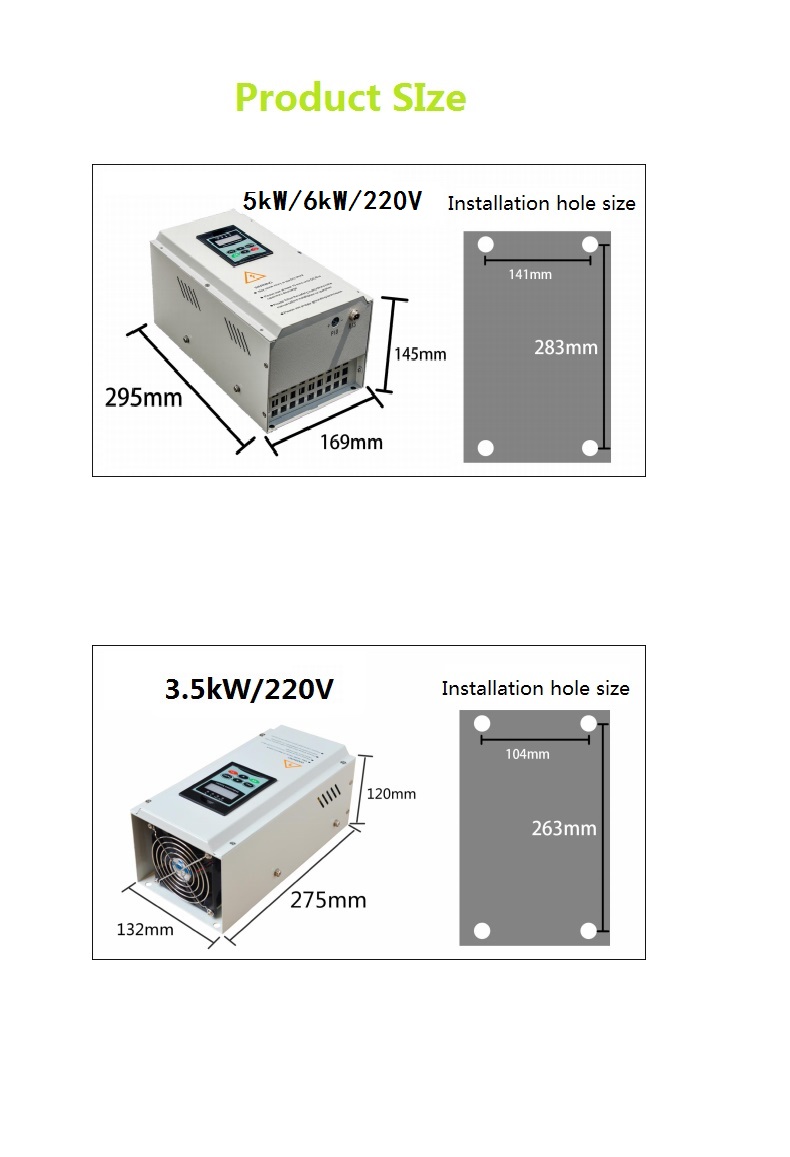

Induction Heater-3
