Flatbed Applicator MF1350-B2
Product Summary: The MF1350-B2 is a flatbed applicator designed for precise lamination of rigid substrates up to 25mm thick. It features infrared heating, pneumatic roller control, and a robust sheet metal frame, making it ideal for signage, graphic printing, and industrial surface finishing.
Key Selling Points
- Infrared Heating System: Max 100°C temperature ensures effective heat-activated adhesive bonding on various substrates.

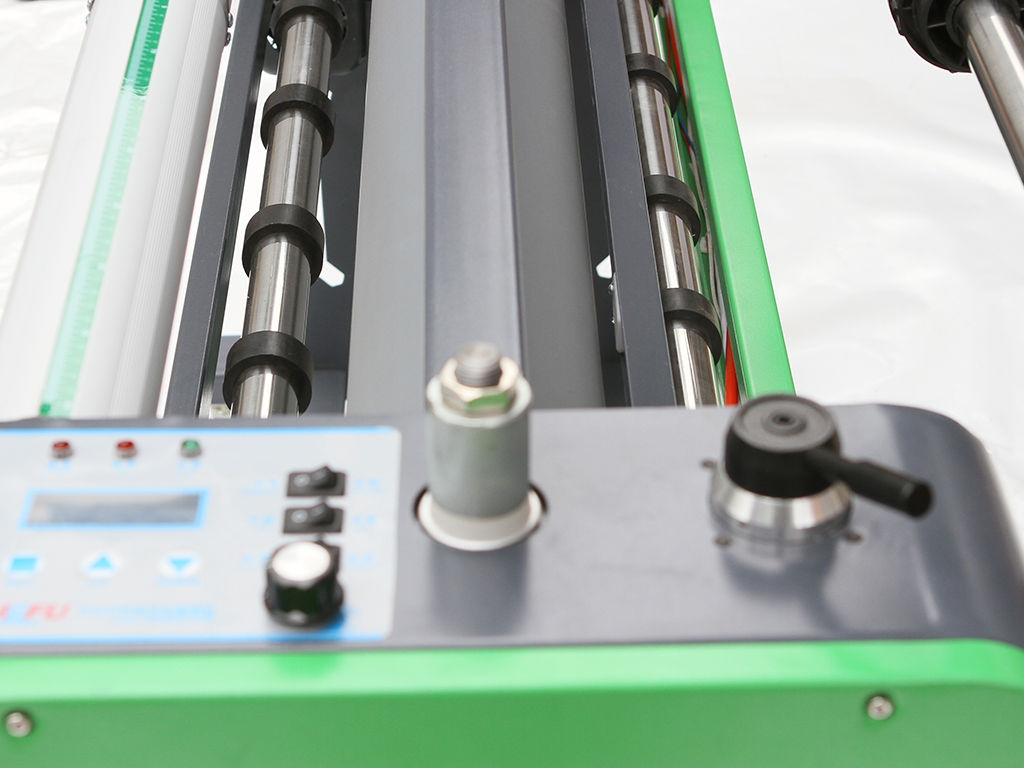

- Pneumatic Roller Up/Down: 130mm silicone rollers with pneumatic adjustment provide even pressure and bubble-free application.
- Wide Format Support: Max lamination width of 1270mm accommodates large format sheets, improving productivity.
- Max Speed 7m/min: Efficient processing for both prototype and production runs.
- Durable Construction: Integrated sheet metal frame ensures stability and longevity.
- Safety Emergency Button: Immediate stop capability for operator safety.
Technical Specifications
| Parameter | Value |
|---|
| Max Lam Width | 1270mm |
| Max Lam Thickness | 25mm |
| Max Speed | 7m/min |
| Max Temp | 100°C |
| Rollers | Silicon (130mm) |
| Up and Down | Pneumatic |
| Heated | Infrared |

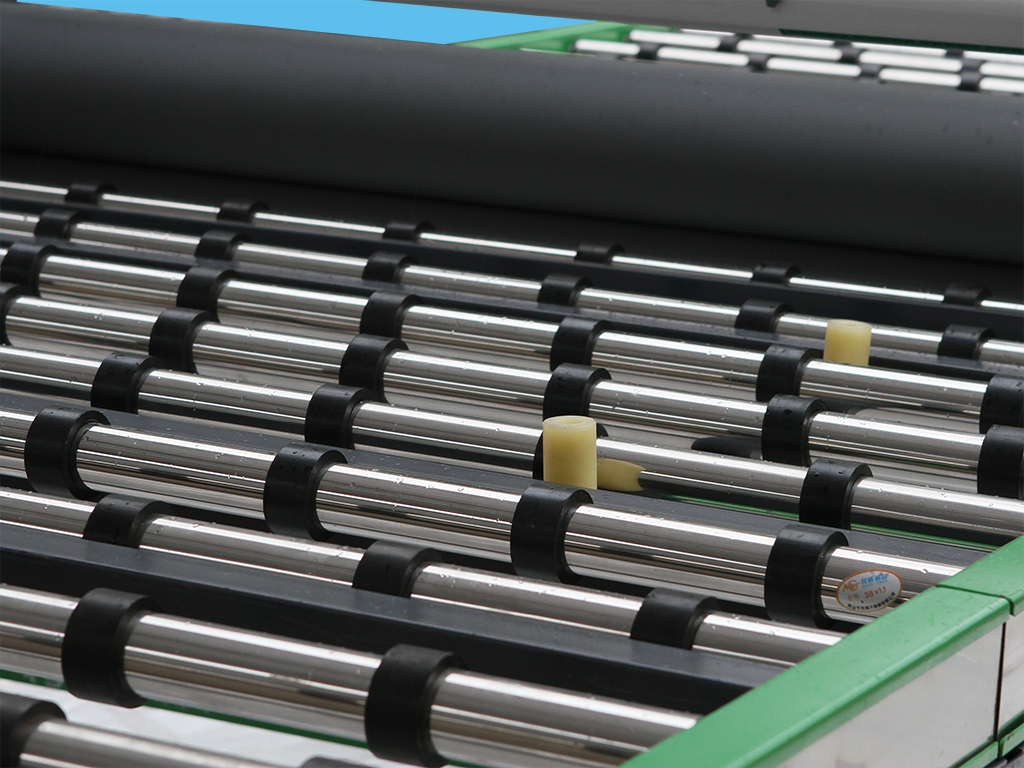

| Flatbed | 4 pcs |
| Flatbed Length | 3.2m |
| Emergency Button | 1 |
| Power Input | 2500W |
Models and Options
The MF1350-B2 is available in standard configuration. For options regarding custom width, heating enhancements, or additional safety features, contact our sales team.
Materials and Structure
Frame: Integrated sheet metal. Rollers: Silicone. Heating Plate: Aluminum Alloy. Heating Element: Infrared Quartz.
Applications
Ideal for laminating photo prints, posters, acrylic, PVC, foam board, and ACP in advertising, graphic design, and industrial decorative sectors. Enhances surface gloss, scratch resistance, and service life.
Customization
We offer customization in machine width, roller hardness, and heating capacity to meet specific production requirements. Contact us with your dimensions and materials.
Case Study: Russian Digital Printing and Finishing Solutions
A client in Russia, specializing in digital printing and finishing, purchased 100 units of the MF1350-B2. Over 10 years of service, the machines have maintained stable operation, highlighting their reliability and high stability in daily production.
FAQ
1. What is the maximum material thickness the MF1350-B2 can handle?
The machine can laminate materials up to 25mm thick, suitable for rigid boards like acrylic and PVC.
2. Can this machine perform both heat and cold lamination?
It is equipped with an infrared heating system, but the temperature can be set to a minimum, effectively allowing cold lamination when needed. The heating element can be turned off for cold applications.
3. How does the pneumatic roller system benefit lamination?
Pneumatic control ensures consistent and adjustable roller pressure, minimizing bubble formation and ensuring even lamination across the surface.
4. What are the power requirements?
The machine requires a 2500W power supply (typically 220V single phase, but can be adapted upon request).
5. Does the machine come with a safety emergency stop?
Yes, it includes an emergency button for immediate shutdown, ensuring operator safety.
6. Is the machine CE and RoHS certified?
Yes, the MF1350-B2 falls under the CE and RoHS certifications as per the provided certificates, ensuring compliance for EU markets.
