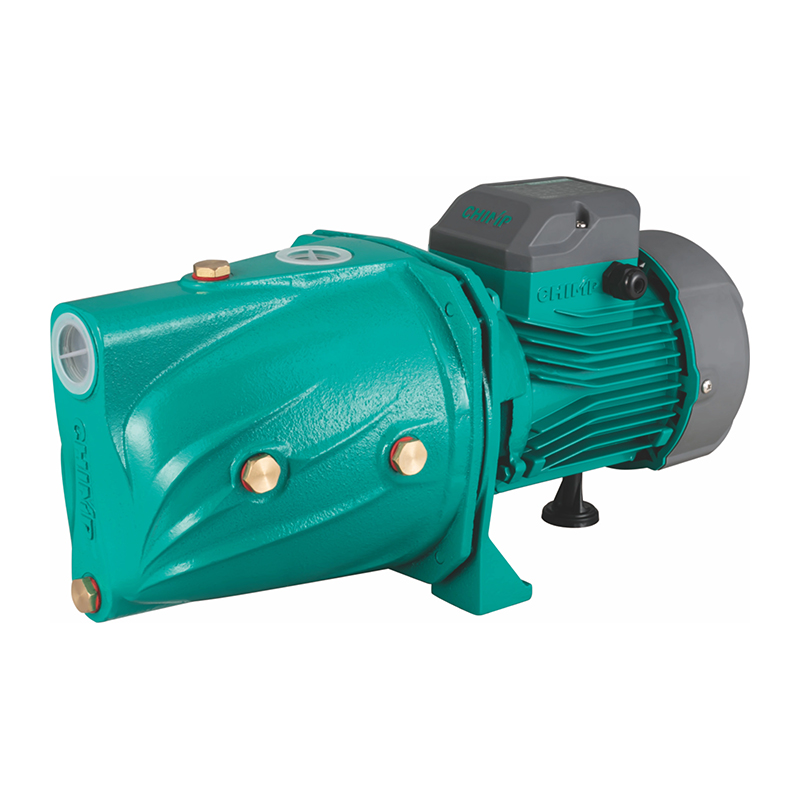

Jet Pump

Quantity:
SKU: 3384400445
Model: Jet

{{ variable.name }}

{{ value.name }}

Product Specification

TypeSelf-priming Jet PumpModelJet
ParamsPower: 0.45–1.5 kW / 0.6–2 HP Max. flow: 30–80 L/min Max. head: 36–65 m Max. suction: 9 m Inlet / outlet: 1" × 1" to 1¼" × 1" Max. liquid temperature: 40°C Max. ambient temperature: 40°C Protection class: IPX4MaterialCast iron pump body and support Stainless steel / brass / PP impeller Copper winding motor Stainless steel or 45# steel shaft
Applicable IndustryThis JET pump is mainly used for clean water and similar liquids. Typical applications include: Water supply from wells Household water supply Garden irrigation Pressure boosting Small water supply systems Water transfer from wells or tanks

Feature

Self-priming design — up to 9 m suction lift Good pressure performance with a maximum head of 65 m Compact and practical for home and small water supply systems Cast iron pump body for everyday use Copper winding motor for stable operation External ventilation cooling helps keep the motor temperature under control Available in different models and power ranges to suit different water supply needs.
