Large Format Laminator With Pneumatic Lift MF1700-A1 PRO

Name: "Large Format Laminator With Pneumatic Lift MF1700-A1 PRO"
Rating: 5 (393 reviews)

Quantity:

SKU: 8392280733

Model: MF1700-A1 PRO

MEFU

Enter Shop

Product Details

Large Format Laminator MF1700-A1 PRO

The MF1700-A1 PRO is a large format laminator designed for high-efficiency finishing of digital prints. With a maximum lamination width of 1630mm (64") and a top heating system reaching up to 120°C, it is suitable for a variety of materials. The pneumatic up/down mechanism ensures easy operation, while the integrated sheet metal frame provides stability.

Key Selling Points

Large Format Capacity: Max lamination width of 1630mm (64") accommodates large-format prints, reducing waste and increasing efficiency.
Pneumatic Lift System: Up/down pneumatic control simplifies film loading and alignment, minimizing operator fatigue.
Heating Options: Top heated system with max temperature 60°C or 120°C provides flexibility for various laminating films.
Integrated Structure: Sheet metal frame and silicone rollers ensure smooth operation and durability.
Precision Trimming: Includes 2 single and 1 double central blades, allowing clean edge trimming in one pass.

Technical Specifications

Model	MF1700-A1 PRO
Type	Large Format Laminator
Max Lamination Width	1630mm / 64"
Max Lamination Thickness	28mm / 1.1"
Max Speed	15m/min
Heating	Top heated
Max Temperature	60°C or 120°C
Up and Down	Pneumatic
Trimmer Holder	2 Single and 1 Double central blades
Power Input	1600W or 2600W
Net Weight	200KGS

Models and Options

This machine is part of the MF1700 series, which includes models such as MF1700-M1 PLUS, MF1700-F2, MF1700-F1, and others. These models share similar platform features but may differ in heating configuration or power options.

Materials and Structure

Frame: Integrated Sheet Metal
Rollers: Silicone
Heating Plate: Aluminum Alloy
Heating Element: Infrared Quartz
Cutting Blade: Tungsten steel blades

Applications

This laminator is designed for the advertising and digital printing industries. It can laminate vinyl, PP paper, and PVC film for billboards, posters, vehicle stickers, and other large-format applications.

It is also suitable for photo prints and artworks, providing protection against fading and maintaining color.

Customization

MEFU offers customization options for this laminator to meet specific production requirements. Please contact us for more details.

Frequently Asked Questions

Q: What is the maximum lamination width of the MF1700-A1 PRO?

A: The maximum lamination width is 1630mm (64"), suitable for large format prints.

Q: Can the machine laminate thick materials?

A: Yes, it can handle materials up to 28mm (1.1") thickness.

Q: What heating options are available?

A: The machine features top heating with maximum temperature settings of 60°C or 120°C.

Q: Does the laminator have a trimming function?

A: Yes, it includes 2 single and 1 double central blades for precise trimming.

Q: What are the power input options?

A: The power input can be 1600W or 2600W, depending on the configuration.

Q: Is the machine easy to operate?

A: The pneumatic up/down system simplifies film loading and alignment, making operation easy.

Q: What is the net weight of the machine?

A: The net weight is 200 kg.

Q: Does it come with CE certification?

A: Yes, the machine is CE certified as per the company's certification.

Inquiry Information

For pricing and availability, please contact us at info@mefu.cn or call +86 15890020566.

MOQ: 1 unit. Delivery terms available: FOB/CIF/DDP/DDU. Payment: T/T.

Images

Main machine

Silicone rollers

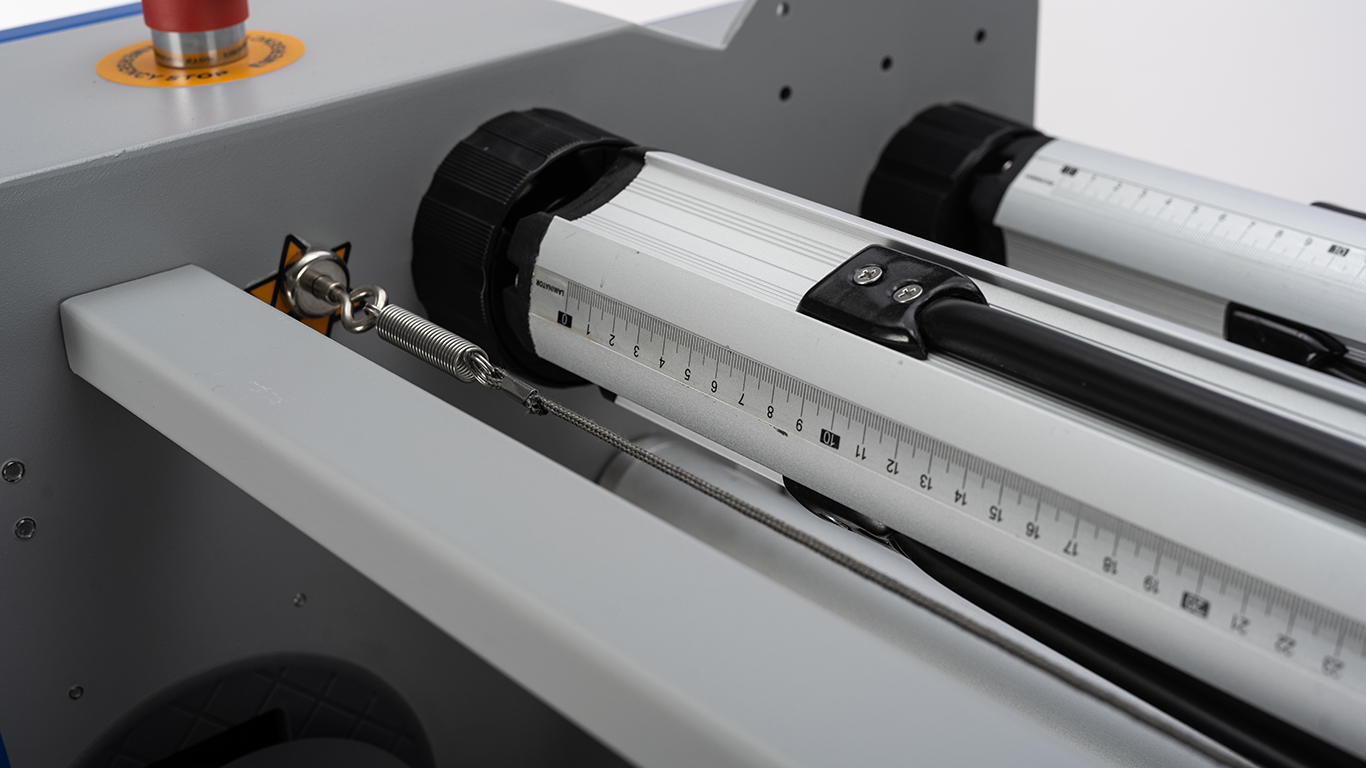

Anti-static string
