Latching Relay

Quantity:
SKU: 7633423676
Model: GRT508HE

{{ variable.name }}

{{ value.name }}

Product Specification

Type1-pole Latching Relay, Smart Meter Latching Relay, Prepaid Meter Latching Relay, Smart Home Latching Relay, Custom Latching RelayModelGRT508HE
ParamsRated Load(resistive): 150A Contact Material:AgSnO2 Max. Switching Current: 150A Max. Switching Voltage: 253VAC Coil Voltage:6-24 VDC Mechanical Endurance: 100,000 OPS Electrial Endurance: 10,000 OPS(120A 250VAC) / 5,000 OPS(150A 250VAC) Max. Short-Circuit Current: 3000A/10ms / 6000A/10ms(no explosion) Ambient Temperature:-40℃~+85℃ Installation form:Fast ConnectionMaterialCopper / Plastic
Applicable Industrysmart metering industry

Feature

150A contact switching capability Only impulse excitation needed,both for single and double coil Low power consumption, small in size Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt 4KV dielectric strength between coil and contacts RoHS compliant Outline dimensions: 48 x 52 x 30 mm

GRT508HE150A-1

GRT508HE150A-1

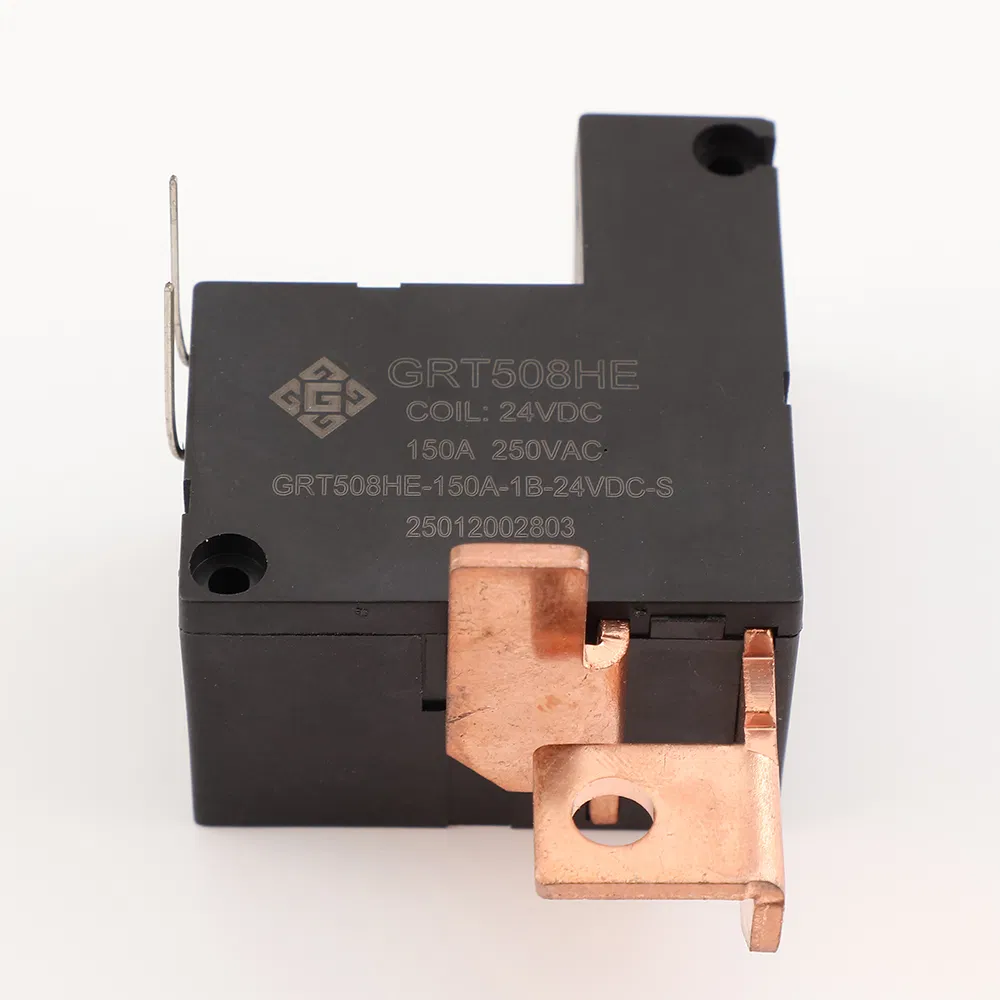

GRT508HE150A-3

GRT508HE150A-3

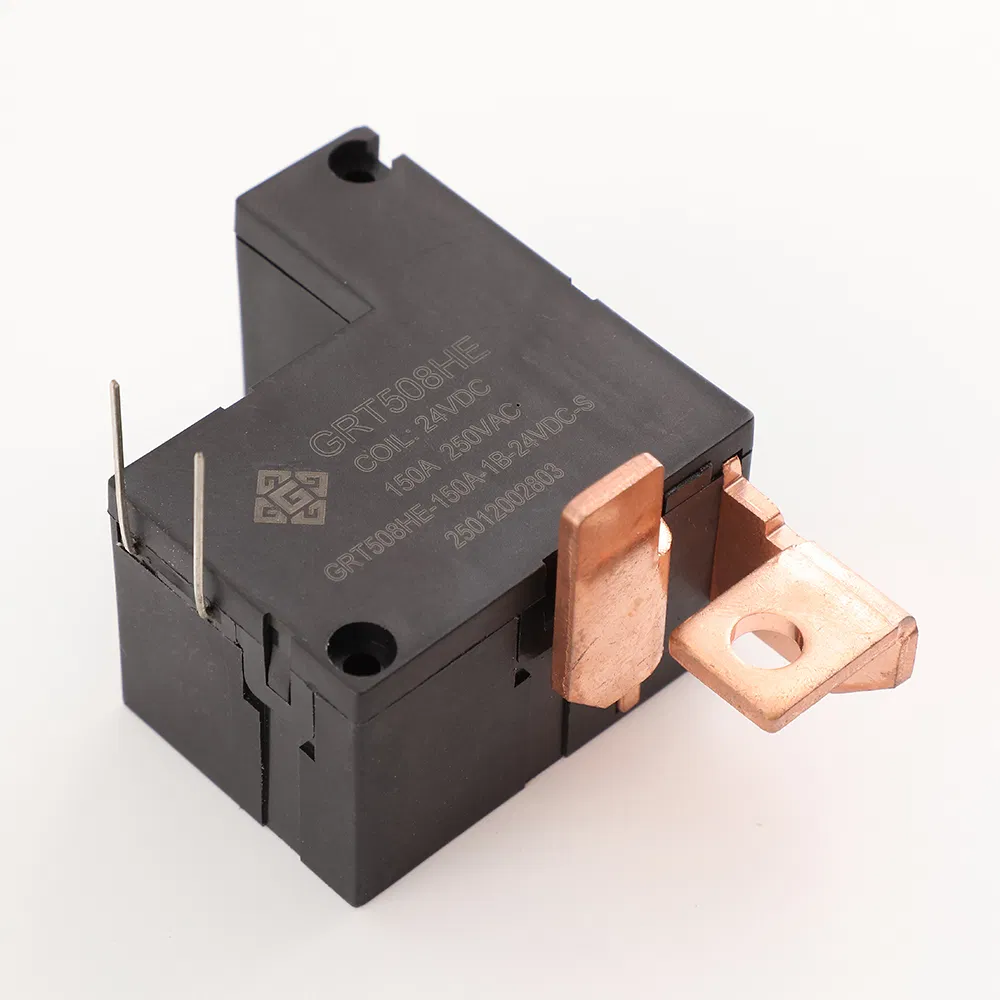

GRT508HE150A-4

GRT508HE150A-4
