Latching Relay

Quantity:
SKU: 9901499348
Model: GRT508FN

{{ variable.name }}

{{ value.name }}

Product Specification

Type3-pole Latching Relay, Smart Meter Latching Relay, Prepaid Meter Latching Relay, Smart Home Latching Relay, Custom Latching RelayModelGRT508FN
ParamsRated Load(resistive): 120A Contact Material:AgSnO2 Max. Switching Current: 120A Max. Switching Voltage: 250VAC Coil Voltage:5-24 VDC Mechanical Endurance: 100,000 OPS Electrical Endurance: 10,000 OPS(100A 230VAC) / 6,000 OPS(120A 230VAC) Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion) Ambient Temperature:-40℃~+85℃ Installation form:Fast ConnectionMaterialCopper / Plastic
Applicable Industrysmart metering industry

Feature

120A three sets of contacts switching capability Only impulse excitation needed,both for single and double coil Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt 4KV dielectric strength between coil and contacts IEC62052-31 UC2, UC3 compliant RoHS compliant Outline dimensions: 98.2 x 40.3 x 37.7 mm

GRT508FN 3×120A-4

GRT508FN 3×120A-4

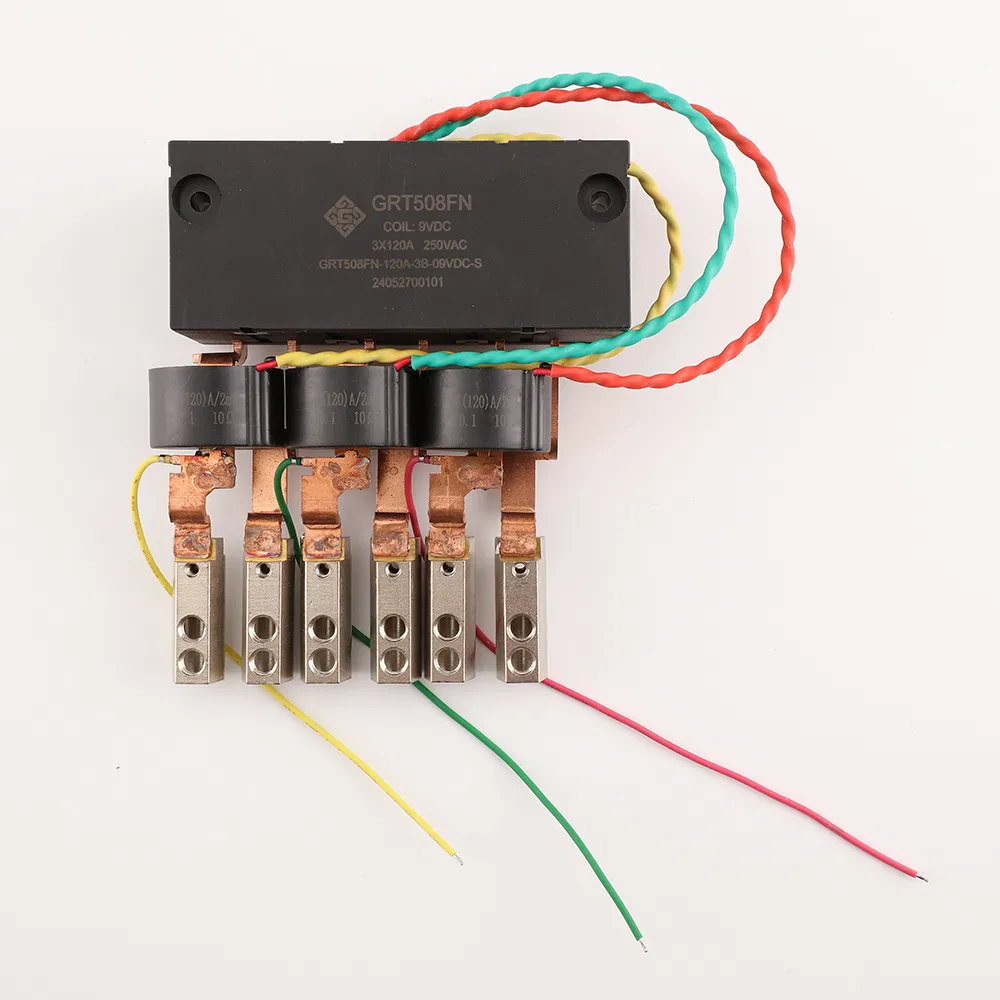

GRT508FN 3×120A-3

GRT508FN 3×120A-3


GRT508FN 3×120A-1

GRT508FN 3×120A-1


GRT508FN 3×120A-2

GRT508FN 3×120A-2
