Latching Relay

Quantity:
SKU: 5500525832
Model: GRT508F

{{ variable.name }}

{{ value.name }}

Product Specification

Type1-pole Latching Relay, Smart Meter Latching Relay, Prepaid Meter Latching Relay, Smart Home Latching Relay, Custom Latching RelayModelGRT508F
ParamsRated Load(resistive): 120A Contact Material:AgSnO2 Max. Switching Current: 120A Max. Switching Voltage: 250VAC Coil Voltage:5-24 VDC Mechanical Endurance: 100,000 OPS Electrical Endurance: 10,000 OPS (100A 250VAC) / 6000 OPS(120A 250VAC) Max. Short-Circuit Current: 3000A/10ms & 6000A/10ms(no explosion) Ambient Temperature:-40℃~+85℃ Installation form:Fast ConnectionMaterialCopper / Plastic
Applicable Industrysmart metering industry

Feature

120A contact switching capability Only impulse excitation needed,both for single and double coil Low power consumption, small in size Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt 4KV dielectric strength between coil and contacts RoHS compliant IEC62055-31 UC2 compliant Outline dimensions: 42 x 32 x 20.8 mm

GRT508F120A-3

GRT508F120A-3

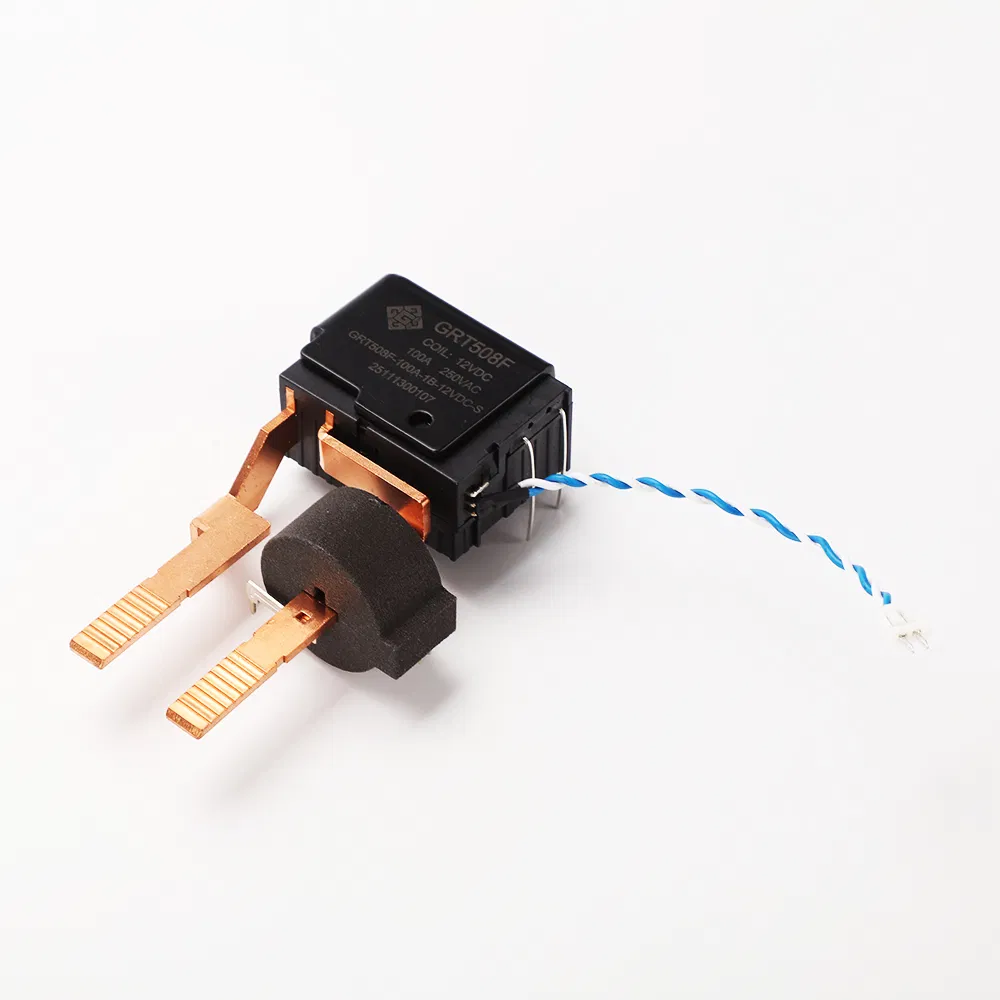

GRT508F100A-2

GRT508F100A-2

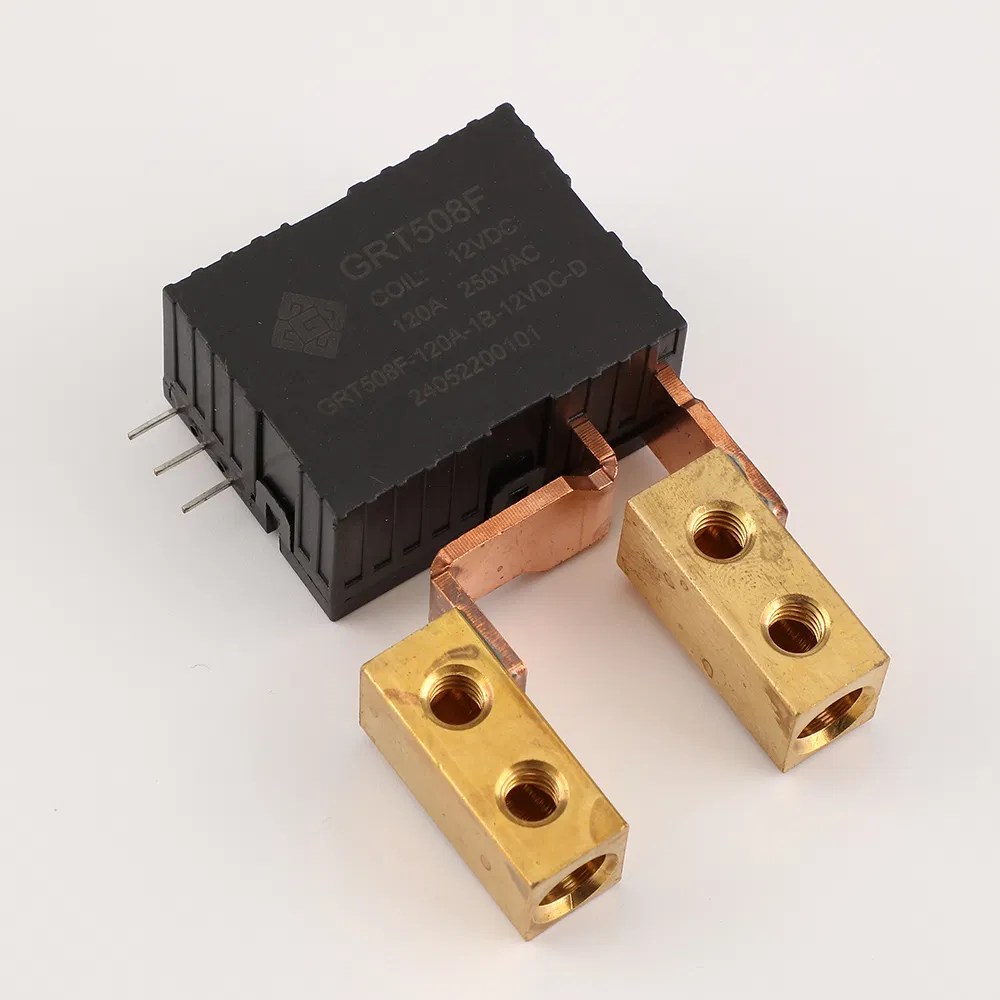

GRT508F120A-1

GRT508F120A-1

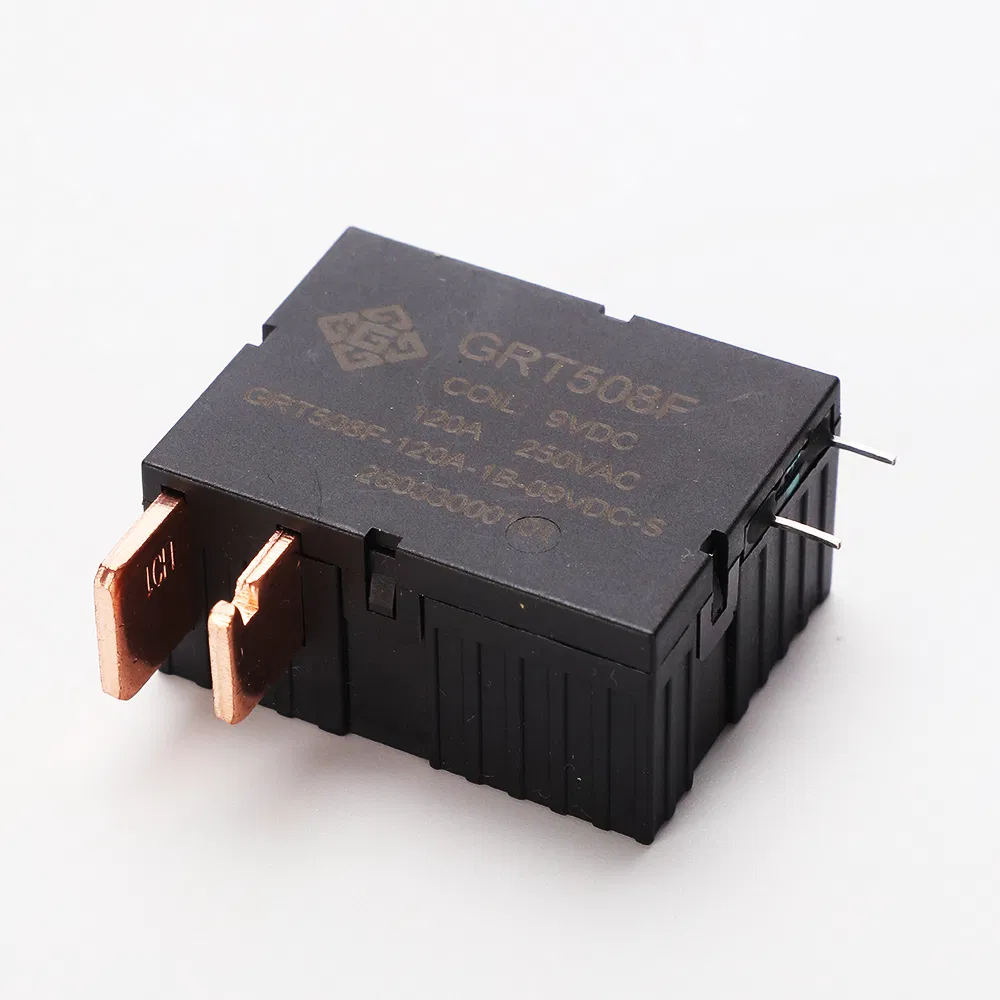

GRT508F120A-2

GRT508F120A-2

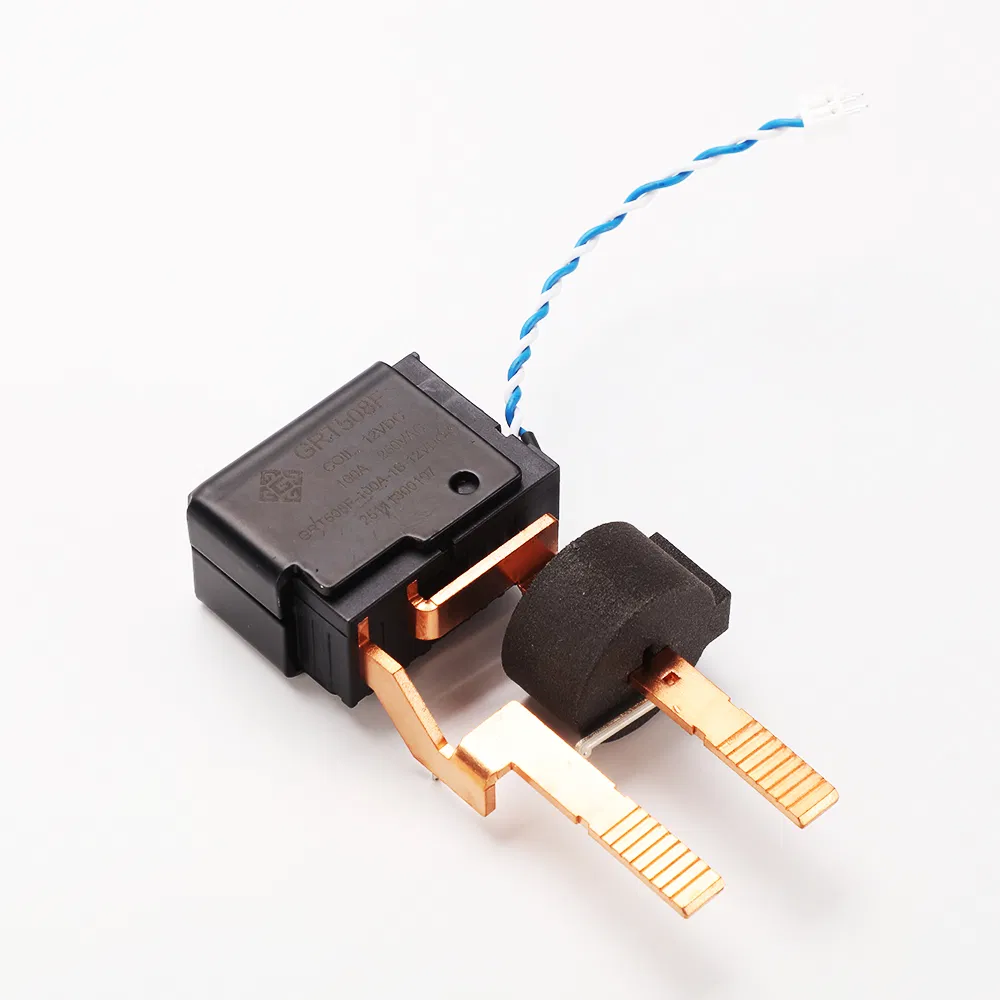

GRT508F100A-1

GRT508F100A-1
