Live Stream Switcher

Name: "Live Stream Switcher"
Rating: 5 (62 reviews)

SKU: 930276267X

Model: TCHD-840 Super

TCHD Video

Enter Shop

Product Details

Product Specification

Type	e-commerce livestreaming, education & remote teaching，show‑style streaming，talent show streaming Switcher	Model	TCHD-840 Super

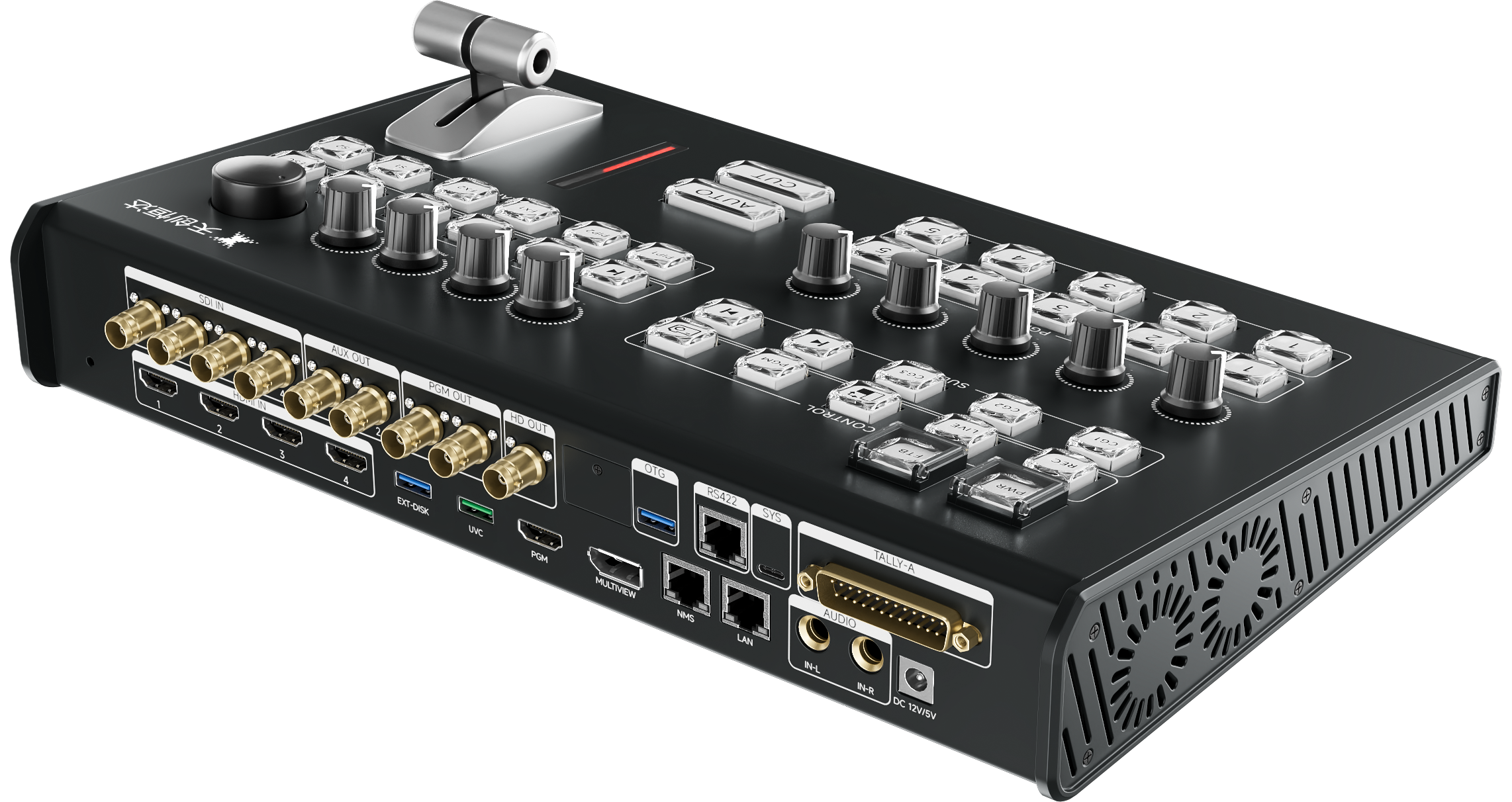

Params	TCHD‑840Super Live Switcher 1. ▲ Built‑in M.2 slot. (Physical photo with manufacturer stamp required) 2. Interfaces - Input: ≥4×12G‑SDI(compatible 3G‑SDI) OR ≥4×HDMI2.0; 1×1/4‑inch balanced audio in - Output: 2×12G‑SDI PGM, 2×12G‑SDI AUX, 1×3G‑SDI PGM down‑convert, 1×HDMI2.0 PGM,1×DP Multiview,1×UVC;1×1/4‑inch balanced audio out - Others: RS422×1, RJ45×2, TALLY×1, OTG×1, USB3.0×1 (Physical photo with manufacturer stamp required) 3. Full‑chain format: 2160P60/59.94/50/30/29.97/25; 1080P60/59.94/50/30/29.97/25;1080i‑60/50 4. ▲ UVC webcam output, no external capture card needed. (Physical photo with manufacturer stamp required) 5. ▲ Built‑in streaming codec: RTMP/RTMPS/SRT/RTSP/UDP/NDI; 1‑in 4‑out streaming, URL template management. (Software screenshot with manufacturer stamp required) 6. One‑click landscape(16:9)/portrait(9:16) mode switch 7. ▲ One‑click screenshot. (Physical photo with manufacturer stamp required) 8. One‑click emergency: Fade‑to‑Black / color‑bar output 9. PIP: 1‑2‑3‑4 window templates; configurable via Web & touch screen; custom size, position & background image	Material	Housing: Aluminum alloy
Applicable Industry	Multicamera live streaming to the Internet or broadcast applications. Perfect for education & training, business presentations, livestream eSport events and more!

Feature

4K@60Hz Full-Link Ultra HD Processing Supports full-range 4K@60Hz, 1080p and 1080i multi-frame-rate signal input and output. Delivers smooth, high-clarity, broadcast-grade visuals, perfectly catering for professional live streaming, event shooting and high-definition video production. 12G-SDI & HDMI 2.0 Multi-Port Compatibility Features optional 4-channel 12G-SDI or HDMI 2.0 hybrid inputs and rich diversified outputs including 12G-SDI PGM/AUX, 3G-SDI down-conversion and HDMI 2.0 PGM. It supports ultra-high bandwidth lossless transmission, compatible with professional cameras and various HDMI devices to meet complex on-site signal scheduling demands. Built-in UVC Output, Plug & Play Standard UVC video output design, recognized as a HD webcam by computers directly. Compatible with all mainstream live streaming and recording software. No driver installation or external capture card required, greatly simplifying live setup and lowering equipment costs. Multi-Protocol Streaming & Multi-Platform Live Push Integrates professional streaming codec, supporting RTMP, RTMPS, SRT, RTSP, UDP and NDI protocols. It supports 1-channel stream reception and 4-channel simultaneous multi-platform pushing, with template-based stream address management for stable and efficient live broadcast operation. All-Round Professional & Intelligent Live Functions Equipped with 6.5mm balanced audio ports and full-featured expansion interfaces. Supports one-click horizontal/vertical screen switching, screenshot and emergency signal output. Customizable 1-4 window PIP templates are available, adapting to e-commerce live streaming, online education and corporate conference scenarios.

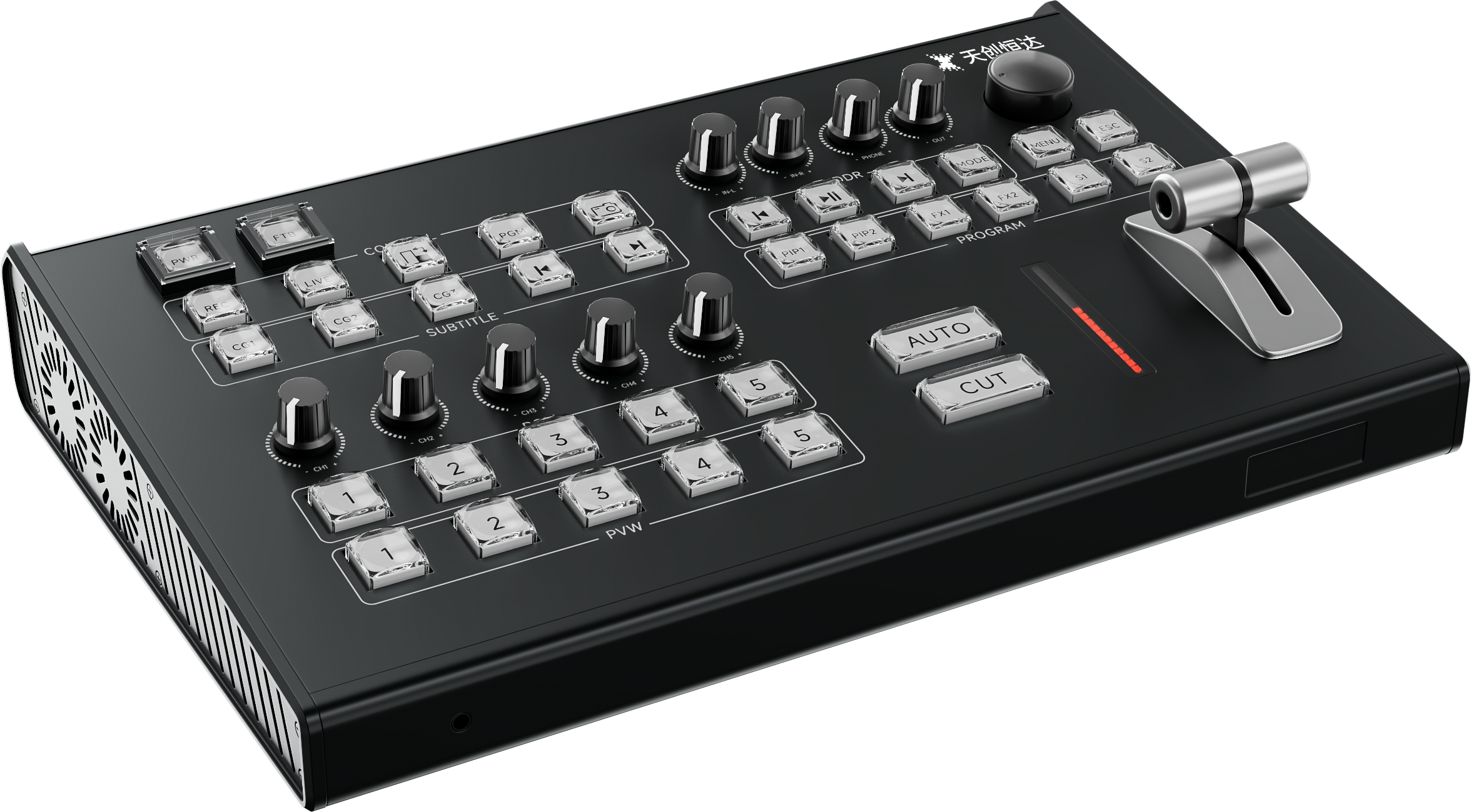

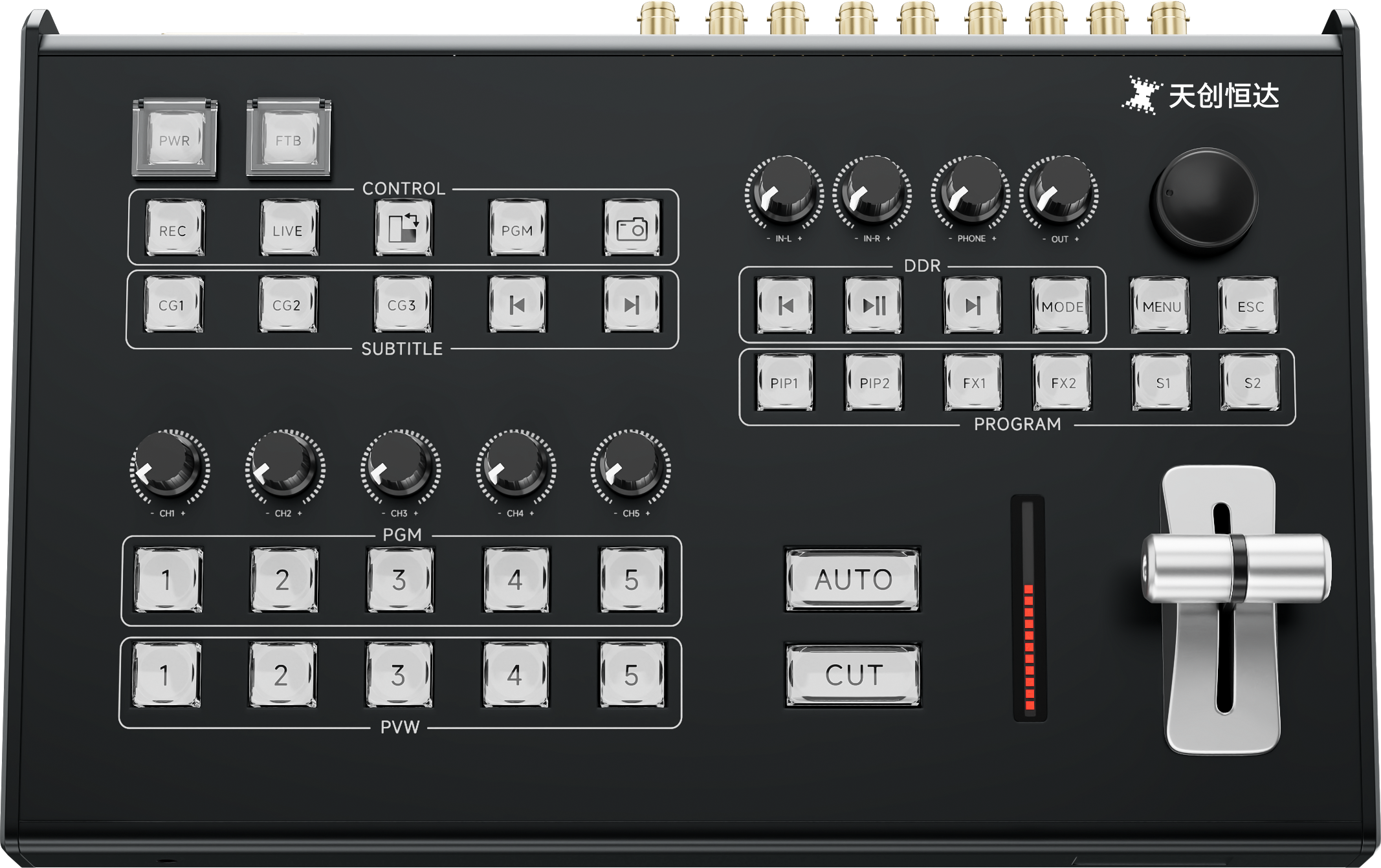

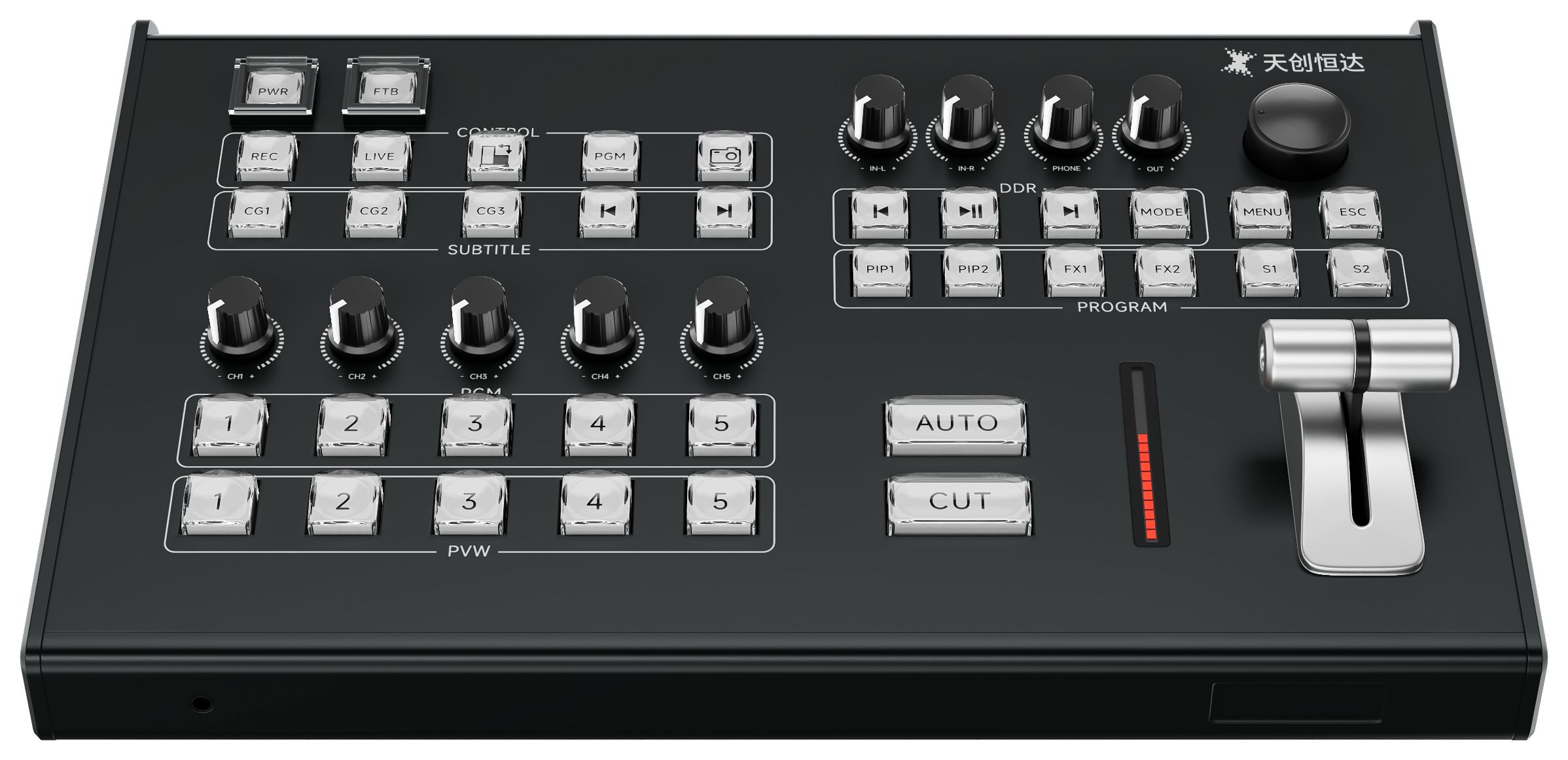

TCHD840Super
