MF1700-M5 64-inch Pneumatic Roll Laminator for Digital Printing

Name: "MF1700-M5 64-inch Pneumatic Roll Laminator for Digital Printing"
Rating: 5 (609 reviews)

Quantity:

SKU: 7478318398

Model: MF1700-M5

MEFU

Enter Shop

Product Details

mf1700-m5-digital-printing

MF1700-M5 64-inch Pneumatic Roll Laminator for Digital Printing

Product Summary

The MF1700-M5 is engineered for the digital printing and custom signage industry, providing roll-to-roll lamination for instant finishing of short-run and customized orders. It offers one-stop laminating for digital prints, delivering surface protection and gloss/matte finishing. The machine supports 24/7 operation and seamlessly integrates with UV/Latex printers, DTF printers, and cutters.

Key Selling Points

1630mm (64") max lamination width: Accommodates standard and custom print widths efficiently.
23mm (0.9") max lamination thickness: Handles a wide range of substrates from thin paper to thick boards.
Top heated system with adjustable temperature up to 60℃ or 120℃: Allows flexibility for different film types.
High speed of 12m/min: Increases productivity for short-run and custom orders.
Pneumatic lifting system: Simplifies threading and reduces setup time.
CE and RoHS certified: Complies with European directives, ensuring safe operation.

Technical Specifications

Max Lam Width	1630mm / 64"
Max Lam Thickness	23mm / 0.9"
Max Speed	12m/min
Heating	Top heated
Max Temp	60℃ or 120℃
Up and Down	Hand Crank
Trimmer Holder	None
Power Input	1600W / 2600W
Net Weight	200 kg

Models and Options

The base model is MF1700-M5. Optional features include pneumatic lifting system and enhanced temperature control. Please contact sales for customization.

Materials and Structure

Frame: Integrated sheet metal
Rollers: Silicone
Heating Plate: Aluminum alloy
Heating Element: Infrared quartz
Cutting Blade: Tungsten steel blades (if applicable)

Applications

Specifically designed for digital printing and custom signage businesses, this laminator is used for roll-to-roll lamination of digitally printed materials, offering surface protection and gloss/matte finishing. It is compatible with a variety of substrates and supports quick turnaround for custom orders.

Customization

MEFU provides customization options such as pneumatic lifting system, additional rollers, or specialized heating elements to suit your production requirements. Contact our engineering team for tailored solutions.

FAQ

Q: What is the maximum material width this laminator can handle?
A: The MF1700-M5 can handle materials up to 1630mm (64") wide.
Q: Can it be used for both gloss and matte lamination?
A: Yes, it supports both gloss and matte finishes depending on the film used.
Q: How fast can it laminate?
A: The maximum speed is 12m/min, ideal for high-throughput production.
Q: Does it require a separate trimmer?
A: The machine does not have a built-in trimmer. A separate trimmer may be needed for trimming edges.
Q: Can it handle thin materials?
A: Yes, with adjustable speed and temperature, it can handle a variety of thicknesses.
Q: What are the power requirements?
A: The power input is selectable between 1600W and 2600W to fit your electrical setup.
Q: Does it come with a warranty?
A: Please contact sales for warranty information.
Q: How can I get technical support?
A: Reach out to our support team at info@mefu.cn or +86 15890020566.

Inquiry Information

MOQ: 1 unit. Delivery: FOB/CIF/DDP/DDU. Payment: T/T. Pre-shipment test available. For inquiries, contact YANG at info@mefu.cn.

Product Images

Side View

Control Panel

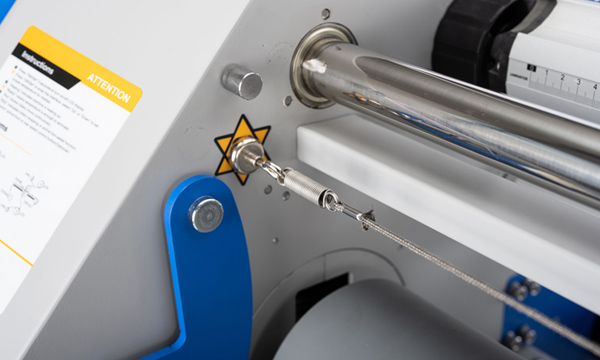

Rear Panel

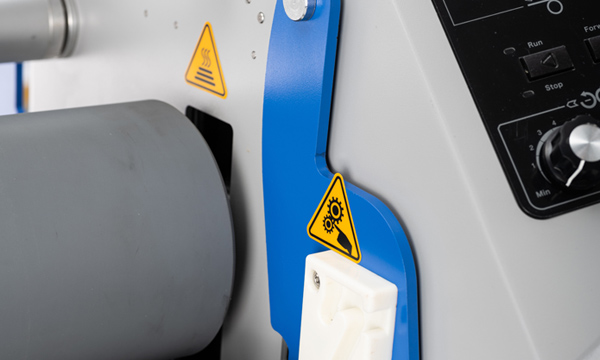

Front View

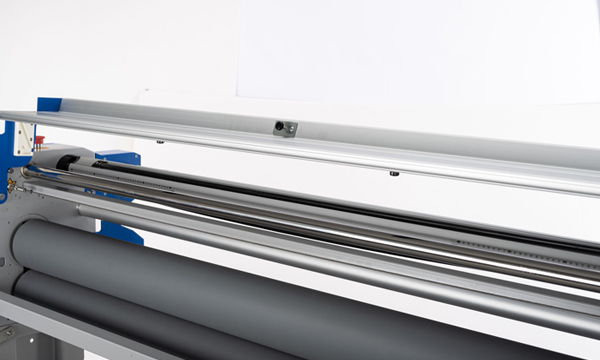

Rollers Close-up
