Product Summary
This NEMA17 hybrid stepper motor, model 17HS5417AG30-PDZ, integrates a 1:30 gearbox to provide increased torque while maintaining a compact footprint. It is ideal for applications where space is limited, such as medical syringe pumps, small robotic arms, and automated sorting mechanisms. The motor features a 1.8° step angle and is available with various wiring configurations.
Key Selling Points
- Compact design: NEMA17 frame size (1.7 inches) fits into tight spaces, perfect for miniaturized automation equipment.
- High gear reduction: With a 1:30 ratio, it delivers an output torque of up to 0.45 N·m (motor torque 0.15 N·m × 30), enabling heavy loads in small packages.
- Precise motion control: Step angle of 1.8° ensures accurate positioning for medical and laboratory applications.
- Reliable materials: Stator made of cold-rolled non-oriented silicon steel, rotor with NdFeB magnets, and stainless steel shaft for long-lasting performance.
- Versatile wiring: Available with 2-8 lead wires to match different drivers and controllers.
Technical Specifications
| Parameter | Value |
|---|
| Model | 17HS5417AG30-PDZ |
| Step Angle | 1.8° |
| Motor Length | 54 mm |
| Rated Voltage | 12–110 VDC |
| Rated Current | 0.5A-8A |
| Phase Resistance | 0.5 Ω – 12 Ω |
| Phase Inductance | 0.1 mH – 20 mH |
| Holding Torque (Motor) | 0.15 N·m (approx.) |
| Detent Torque | 0.01 N·m – 0.75 N·m |
| Rotor Inertia | 0.00006 kg·m² – 0.0045 kg·m² |
| Lead Wires | 2–8 wires |
| Reduction Ratio | 1:3 - 1:512 (this variant: 1:30) |
Models and Options
This motor belongs to the 17HS series, which includes various body lengths (e.g., 17HS2410, 17HS3430) and gearbox ratios. The model 17HS5417AG30-PDZ features a 54 mm body length and 1:30 gearbox. Other options include different shaft lengths, connectors, and encoders.
Materials and Structure
Constructed with high-quality materials: stator from cold-rolled non-oriented silicon steel, rotor with NdFeB magnets, shaft from stainless steel, housing from aluminum alloy, and gearbox gears from 40Cr alloy steel. Insulation class B/F/H available, bearings are deep groove ball bearings.
Applications
Ideal for medical equipment (syringe pumps), small robotics, laboratory automation, textile machinery, and other compact automation systems requiring precise motion and high torque in a small form factor.
Customization
Customization options include shaft dimension, lead wire length, connector selection, and additional gearbox ratios. MOQ is 1000 sets. Contact us for detailed customization possibilities.
FAQ
Q: What is the MOQ for this motor?
A: The MOQ is 1000 sets.
Q: Can this motor be used in medical devices?
A: Yes, it is suitable for syringe pumps and other medical equipment.
Q: What reduction ratios are available?
A: Ratios from 1:3 to 1:512 are available.
Q: Does it support custom wiring?
A: Yes, we can customize the number of lead wires (2-8) and connectors.
Q: What certifications does it have?
A: ISO9001, CE, and RoHS compliant.
Q: Can I get a sample order?
A: Yes, samples are available upon request.
Inquiry Information
Contact: LuckyJin
Email: market@act-motor.com
Tel/WhatsApp: +86 139-6126-1588
Company: Changzhou ACT MOTOR CO.,Ltd
Address: No.18,Boyang Road, Jintan Area, Changzhou, Jiangsu, China
Image Filename and Alt Suggestions
Main image filename: 17hs5417ag30-pdz-front.png

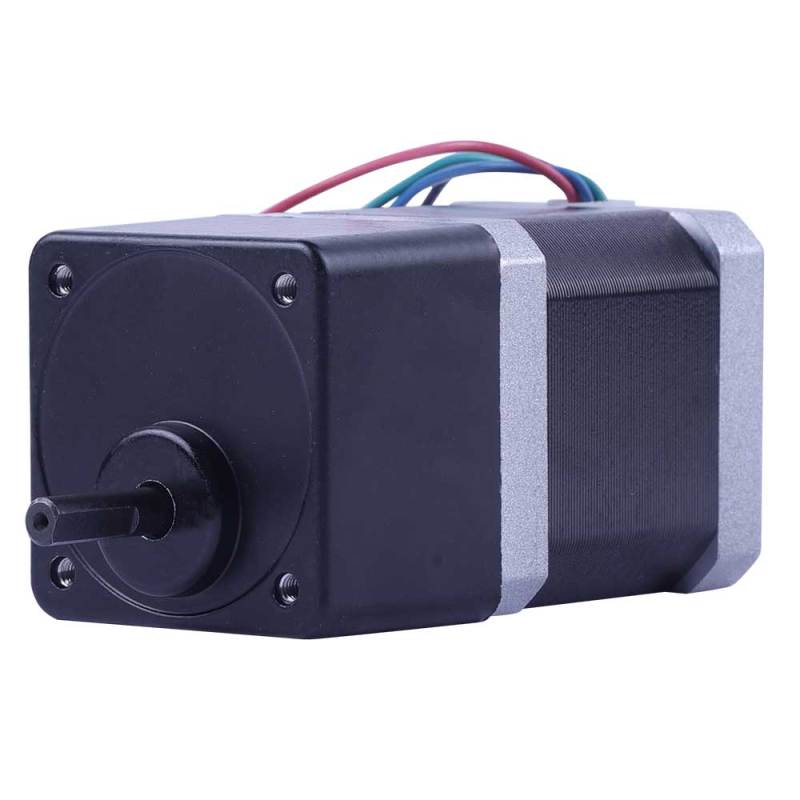

Alt text: NEMA17 hybrid stepper motor 17HS5417AG30-PDZ with 1:30 gearbox front view
