Pneumatic Flatbed Applicator with Safety Glass & LED for 50mm Sheets
The MEFU MF-B4 is a flatbed applicator designed for high-precision lamination of rigid substrates. Its pneumatic up-and-down system ensures bubble-free application on acrylic, PVC, foam board, and aluminum composite panels. The integrated safety glass table and LED illumination provide a clear, safe working environment, while silicone rollers deliver consistent pressure across the entire sheet surface.
Key Selling Points
Pneumatic Pressure Control: Exact pressure adjustment for materials up to 50mm thick, ensuring bubble-free bonding on rigid surfaces.

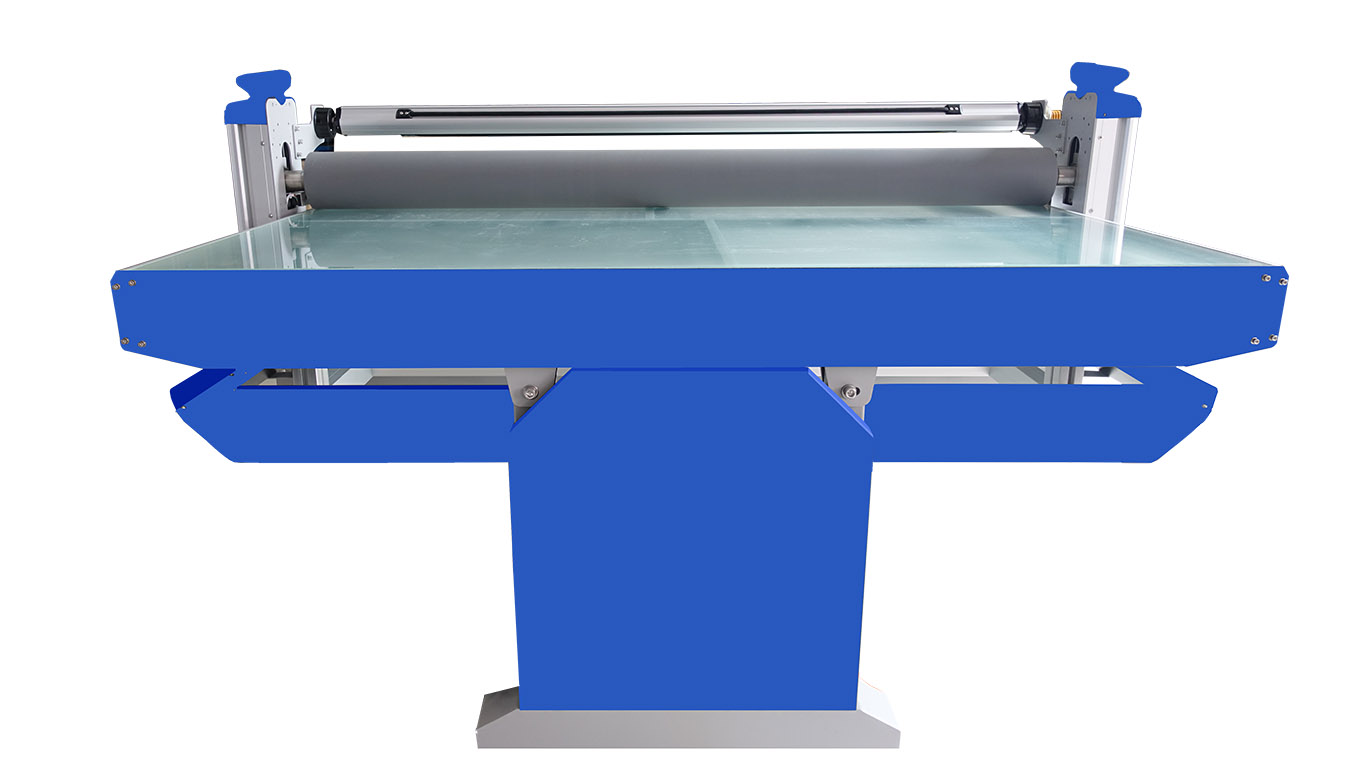

Safety Glass Table: Durable and clear work surface that protects the material and operator, with integrated LED illumination for enhanced visibility.

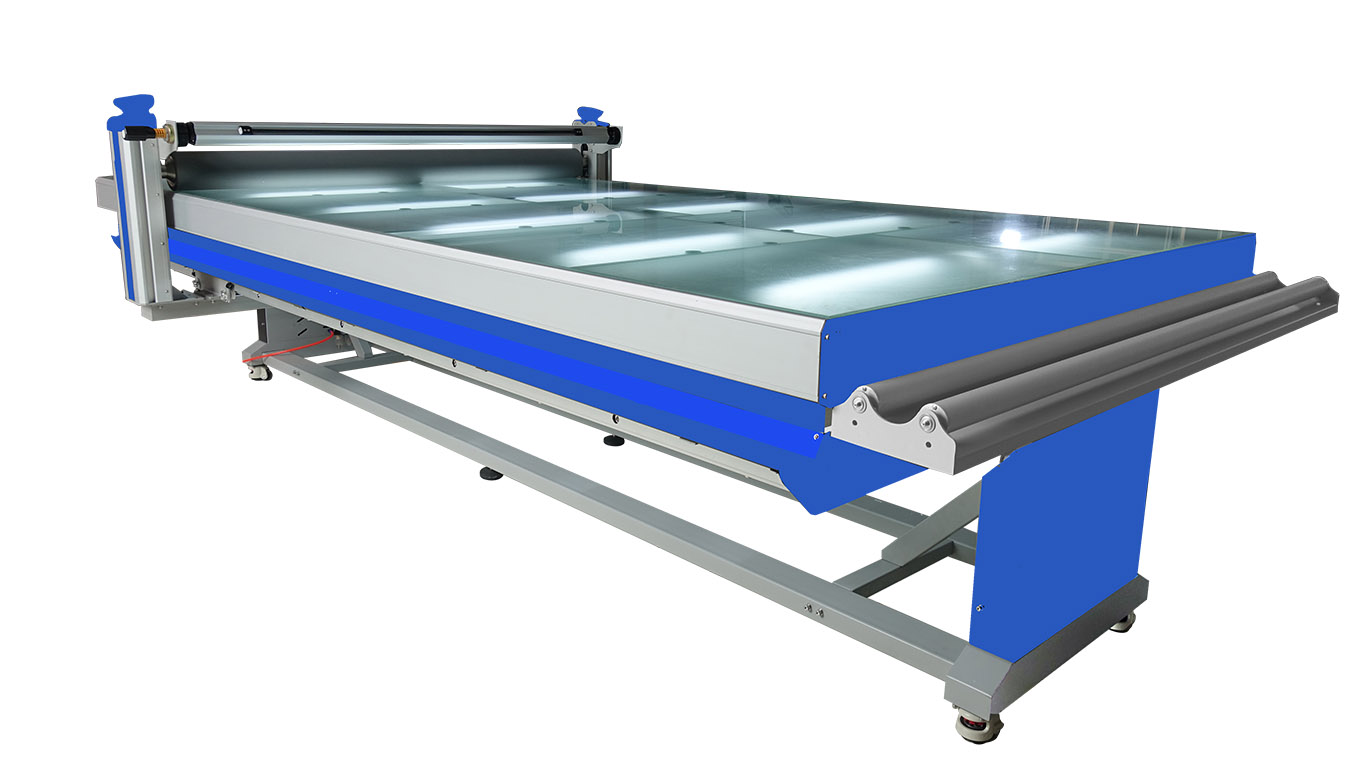

Premium Silicone Rollers: Provides uniform pressure distribution, reducing the risk of air entrapment and improving adhesion quality.
Integrated Cutting Mat: Enables precise trimming of overlaminated prints or vinyl directly on the machine, streamlining workflow.
Roll Holding Options: Roll holders at both beam and end of table accommodate different material widths and user preferences.
CE, RoHS & ISO 9001 Certified: Compliant with international safety and quality standards for reliable performance in professional environments.
Technical Specifications
Model
MF-B4
Lamination Size
1325mm / 1630mm
Max Sheet Thickness
50mm
Up/Down Mechanism
Pneumatic
Roller Material
Silicone
LED Illumination
Yes
Safety Glass
Yes
Cutting Mat
Yes
Roll Holder (Beam)
Yes
Roll Holder (End of Table)
Yes
Models and Options
The MF-B4 is part of the MF series. Other models in the lineup include MF1700-F1, MF1700-F2, MF1700-F3, MF1700-F4, MF1700-F5, MF1700-M1, MF1700-B5, and MF-B2, covering different widths and features. For specific requirements, contact MEFU for configuration assistance.
Materials and Structure
Frame: Integrated Sheet Metal
Rollers: Silicone
Table: Safety Glass
Applications
Signage & Exhibition Display: Laminating acrylic, PVC, foam board, and ACP for signs and light boxes.
Graphic Design & Photo Finishing: Protecting photo prints, posters, and artworks from fading and scratches.
Interior & Industrial Surface: Laminating decorative panels, wooden boards, metal sheets, and ceramic tiles.
Customization
Contact MEFU to discuss customization options for your specific application needs, including material handling and accessory configurations.
FAQ
What materials can the MF-B4 laminate?
It can laminate rigid substrates such as acrylic, PVC, foam board, aluminum composite panels, wooden boards, and metal sheets up to 50mm thick.
How does the pneumatic system improve lamination quality?
The pneumatic up-and-down mechanism provides adjustable, even pressure, which helps eliminate air bubbles and ensures strong adhesion on rigid surfaces.
Is the safety glass table durable?
Yes, it is designed for heavy-duty use and provides a clear, stable surface for precise work.
Can I use the cutting mat for trimming?
Yes, the integrated cutting mat allows you to trim laminated materials directly on the table, improving workflow efficiency.
What certifications does the MF-B4 hold?
It is CE, RoHS, and ISO 9001 certified.
