Precision Cast Lock Body

Name: "Precision Cast Lock Body"
Rating: 5 (537 reviews)

Quantity:

SKU: 5846590187

Model: OEM / Custom Drawing No. 1033

NTC

Enter Shop

Product Details

Product Specification

Type	Door Lock Bodies, Cylinder Housings, Latch Supports and Internal Mechanism Castings	Model	OEM / Custom Drawing No. 1033
Params	• Processing mode: Custom manufacturing according to customer-approved 2D drawings, 3D models or physical samples • Casting process: Silica-sol investment casting, aluminum or zinc alloy die casting selected according to material, structure and production requirements • Material options: Stainless steel 201, 303, 304, 316 and 316L; carbon steel 1020, 1025, 1030, 1040 and 1045; zinc alloy, brass and bronze available when specified • Product types: Lock bodies, cylinder housings, latch supports, bolt guides, spindle seats, internal mechanism bases and customized security-hardware components • Part weight: Customized according to product geometry, material and approved drawing requirements • Casting accuracy: Tolerance grade T4–CT7 for applicable precision-cast components • Surface roughness: Ra 1.6–Ra 6.3 depending on casting, machining and finishing requirements • Machinable features: Cylinder holes, spindle holes, latch channels, threaded holes, mounting interfaces, guide grooves and critical mating surfaces • Machining capability: CNC turning, milling, drilling, boring, tapping, reaming, grinding and deburring • Internal structure: Lock-cylinder seats, latch channels, bolt guides, spring positions and transmission interfaces customized according to drawings • Heat treatment: Annealing, quenching, normalizing and other processes selected according to material and mechanical property requirements • Surface treatment: Polishing, brushing, zinc plating, nickel plating, chrome plating, black oxide, painting, powder coating and passivation • Inspection standard: Material composition, cylinder-hole dimensions, spindle positions, latch-channel dimensions, mounting-hole layout, assembly fit and appearance inspected according to approved drawings • Customization options: Product geometry, lock-cylinder interface, spindle position, latch direction, mounting dimensions, surface finish and logo • Production support: Prototype development, sample verification, trial orders, small-batch production and stable volume production available • Applied standards: ASTM, BS, DIN, JIS, ISO and customer-specified technical requirements	Material	Stainless steel / zinc alloy / copper alloy, customized according to drawing
Applicable Industry	Lock manufacturing / access control / security hardware / architectural doors

Selling Point

• Custom lock bodies and internal mechanism housings manufactured according to customer drawings, 3D models or physical samples • Multiple investment-casting and die-casting processes available for different material, structure, appearance and cost requirements • Suitable for lock-cylinder housings, latch supports, spindle seats, bolt guides and complex internal mechanism bases • CNC machining available for cylinder holes, spindle holes, latch channels, threads and critical mounting interfaces • Customized cylinder position, latch direction, spindle interface, mounting-hole layout and internal transmission structure supported • Stainless steel, carbon steel, zinc alloy and copper alloy options available for different strength and corrosion-resistance requirements • Cylinder dimensions, latch channels, assembly fit and surface appearance inspected before shipment • Prototype development, trial orders and stable volume production supported

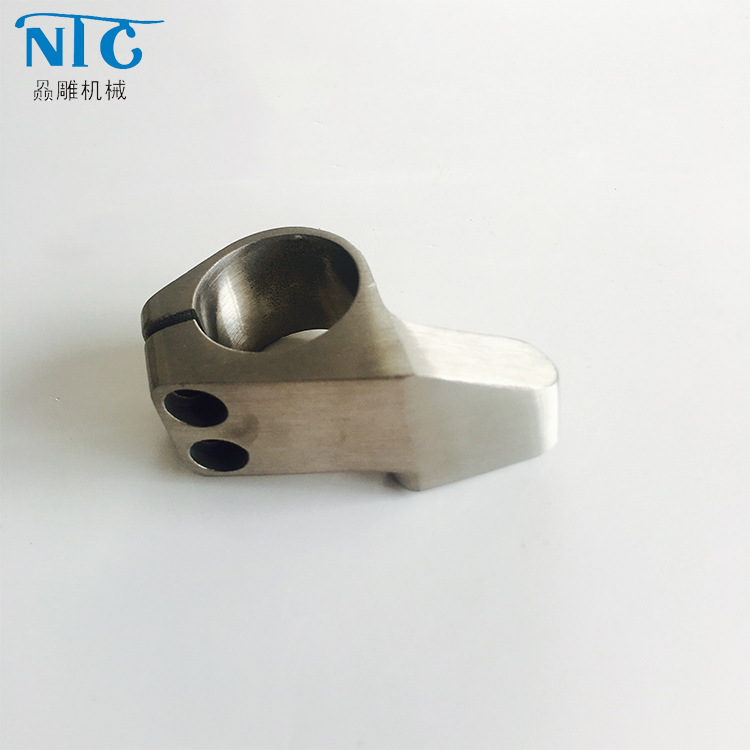

Precision Cast Door Lock Cylinder Housing

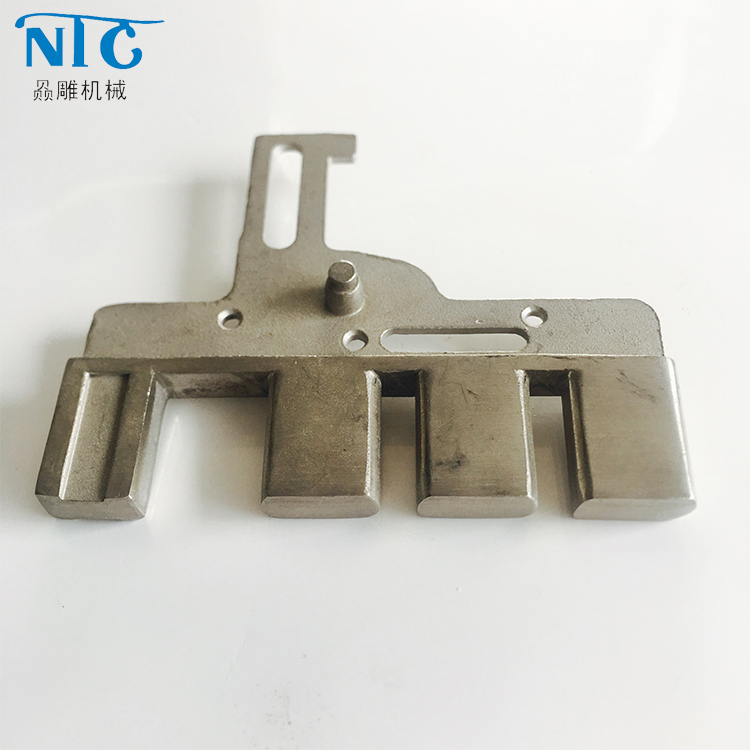

Precision Cast Door Lock Latch Support Body
