Precision Cast Textile Machinery Drive Brackets and Housings

Name: "Precision Cast Textile Machinery Drive Brackets and Housings"
Rating: 5 (654 reviews)

Quantity:

SKU: 0830508961

Model: OEM / Custom Drawing No. 1024

NTC

Enter Shop

Product Details

Product Specification

Type	Textile Machine Drive Housings, Bearing Supports and Mounting Brackets	Model	OEM / Custom Drawing No. 1024
Params	• Processing mode: Custom investment casting or die casting according to customer-approved 2D drawings, 3D models or physical samples • Material options: Aluminum alloy, carbon steel, alloy steel and stainless steel selected according to structural strength, weight and operating requirements • Product types: Drive housings, bearing supports, mounting brackets, transmission covers, retaining rings and customized textile machinery structural components • Casting accuracy: Tolerance grade T4–CT7 for applicable investment-cast components; die-cast tolerances confirmed according to product structure and approved drawings • Surface roughness: Ra 1.6–Ra 6.3 for applicable cast and finished surfaces, depending on machining and surface-treatment requirements • Minimum wall thickness: 2 mm standard for applicable investment-cast structures; thinner or die-cast sections subject to process review • Machinable features: Bearing seats, shaft holes, mounting holes, threaded holes, locating surfaces, flange faces and transmission interfaces • Machining capability: CNC turning, milling, drilling, boring, tapping, grinding and precision bearing-seat machining • Heat treatment: Annealing, quenching, normalizing, solution treatment and other processes selected according to material and mechanical property requirements • Surface treatment: Deburring, shot blasting, polishing, anodizing, black oxide, zinc coating, painting, powder coating and customized finishing • Inspection standard: Material composition, bearing-seat dimensions, shaft-hole concentricity, mounting-hole positions, assembly fit and appearance inspected according to approved drawings • Production support: Prototype development, trial orders, small-batch production and stable volume production available • Applied standards: ASTM, BS, DIN, JIS, ISO and customer-specified technical requirements	Material	Aluminum alloy / carbon steel / alloy steel / stainless steel, customized according to approved drawings
Applicable Industry	Textile machinery / drive systems / spinning and weaving equipment / rotor spinning systems / industrial automation

Selling Point

• Custom textile machinery drive brackets and housings manufactured according to customer drawings, 3D models or physical samples • Investment casting and die casting processes available for different material, weight and structural requirements • CNC machining available for bearing seats, shaft holes, mounting interfaces and critical locating surfaces • Multiple aluminum alloy, carbon steel, alloy steel and stainless steel options available • Optional heat treatment and surface finishing for improved strength, wear resistance and corrosion protection • Bearing positions, concentricity, mounting dimensions and assembly fit inspected before shipment • Prototype development, trial orders and stable volume production supported

Textile Machinery Circular Drive Housing

Textile Machinery Multi-Hole Mounting Block

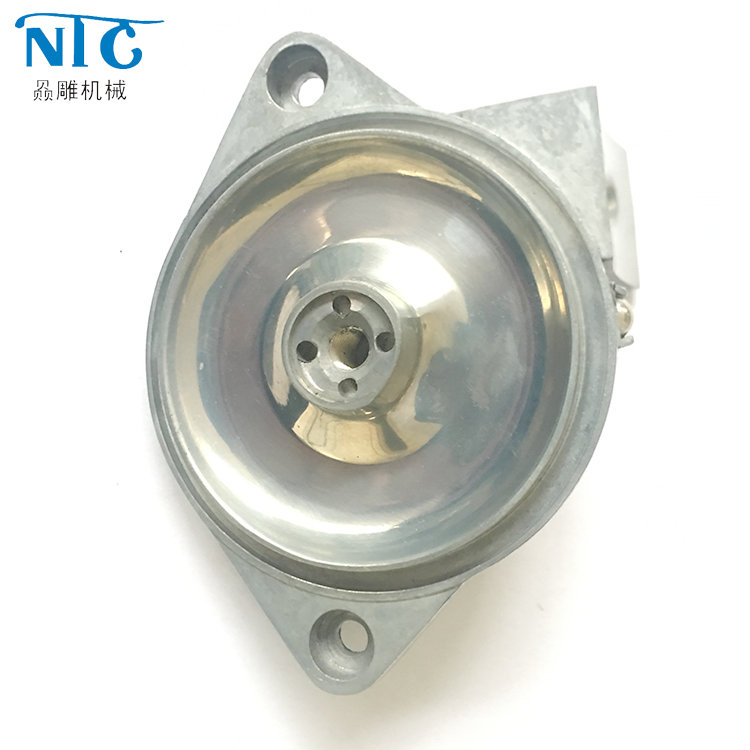

Textile Machinery Flanged Drive Housing

Textile Machinery Drive Housing Front View

Automotive Cast Mounting Bracket

Textile Machinery U-Shaped Mounting Bracket

Textile Machinery Drive Link Bracket

Textile Machinery Cast Support Lever
