Precision Investment Cast Power Tool Lever and Bracket

Quantity:
SKU: 1022710931
Model: OEM / Custom Drawing No. 1006

{{ variable.name }}

{{ value.name }}

Product Specification

TypePower Tool Lever, Bracket and Structural ComponentsModelOEM / Custom Drawing No. 1006
Params• Processing mode: Custom investment casting according to customer-approved 2D drawings, 3D models or physical samples • Material options: Carbon steel, stainless steel and alloy steel according to structural, strength and wear-resistance requirements • Casting accuracy: Tolerance grade T4–CT7, subject to part geometry and approved drawing requirements • Surface roughness: Ra 1.6–Ra 6.3, depending on casting process and finishing requirements • Minimum wall thickness: 2 mm standard; thinner local sections available subject to design and process review • Machinable features: Mounting holes, locating holes, lever shafts, mating faces, threaded holes and other critical connection features • Machining capability: CNC drilling, milling, boring, threading, deburring and grinding • Heat treatment: Annealing, quenching, normalizing, carburizing and solution treatment according to material and mechanical property requirements • Surface treatment: Shot blasting, polishing, black oxide, zinc coating, painting, powder coating and customized surface finishing • Inspection standard: Mounting dimensions, hole positions, critical tolerances, appearance and surface quality inspected according to approved drawings • Production support: Prototype development, trial orders and volume production available • Applied standards: ASTM, ICI, BS, DIN, JIS and ISOMaterialCarbon steel / stainless steel / alloy steel, customized according to approved drawings
Applicable IndustryPower tool manufacturing / industrial tools / mechanical transmission component suppliers

Selling Point

• Custom manufacturing according to customer drawings, 3D models or physical samples • Investment casting suitable for complex lever and bracket structures with stable dimensional consistency • Multiple carbon steel, stainless steel and alloy steel options available • CNC machining available for mounting holes, shaft positions and critical mating surfaces • Optional heat treatment and surface finishing for improved strength, wear resistance and corrosion protection • Prototype development, trial orders and volume production supported

Precision Cast Power Tool Mounting Brackets

Precision Cast Power Tool Mounting Brackets


Precision Cast Power Tool Lever Arm

Precision Cast Power Tool Lever Arm


Precision Cast Power Tool Retaining Sleeve

Precision Cast Power Tool Retaining Sleeve

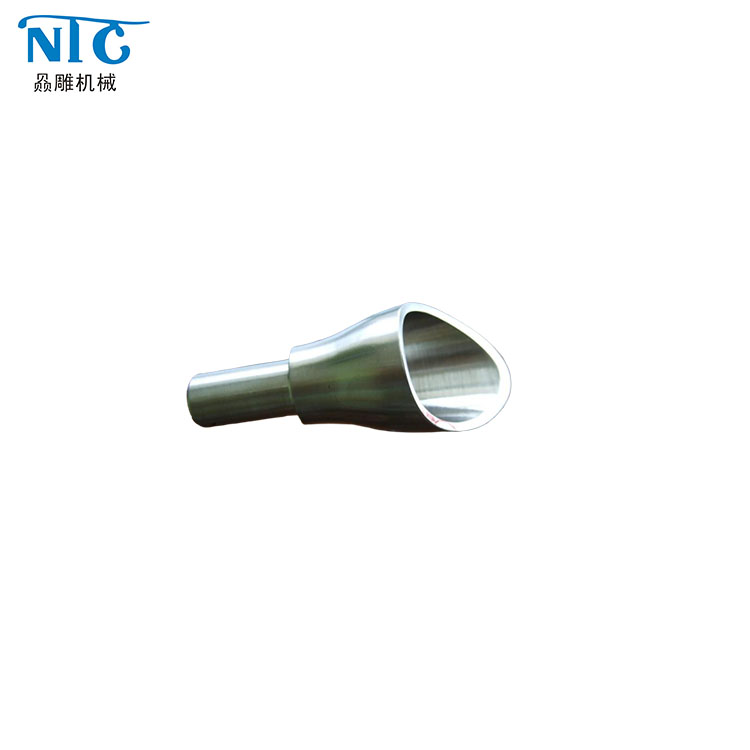

Precision Cast Power Tool Tapered Connector

Precision Cast Power Tool Tapered Connector


Precision Cast Power Tool Mounting Block

Precision Cast Power Tool Mounting Block


Precision Cast Power Tool Hardware Components

Precision Cast Power Tool Hardware Components


Precision Cast Power Tool Adjustment Lever

Precision Cast Power Tool Adjustment Lever
