Precision Investment Cast Stainless Steel Architectural Door Handle

Quantity:
SKU: 2016374330
Model: OEM / Custom Drawing No. 1011

{{ variable.name }}

{{ value.name }}

Product Specification

TypeArchitectural Door Handles, Lever Handles and Lock Hardware CastingsModelOEM / Custom Drawing No. 1011
Params• Processing mode: Custom silica-sol investment casting according to customer-approved 2D drawings, 3D models or physical samples • Material options: Austenitic stainless steel 201, 303, 304, 316, 316L, 1.4581, SCS14 and SCS16; other stainless steel grades available subject to drawing review • Part weight: 2 g–550 g, subject to handle structure and approved drawing requirements • Casting accuracy: Tolerance grade T4–CT7 • Surface roughness: Ra 1.6–Ra 6.3, depending on casting geometry and finishing requirements • Minimum wall thickness: 2 mm standard; 1 mm available for limited local areas subject to process review • Fillet requirements: Minimum outer radius ≥ 0.3 mm; minimum internal fillet ≥ 0.5 mm • Machinable features: Mounting holes, spindle interfaces, square holes, threaded holes, lock connection positions and decorative mating surfaces • Machining capability: CNC turning, milling, drilling, boring, threading, grinding and precision interface machining • Heat treatment: Solution treatment and other processes selected according to material and performance requirements • Surface treatment: Brushed finish, satin polishing, mirror polishing, passivation, PVD coating and customized decorative finishing • Inspection standard: Material composition, mounting-hole position, spindle interface, critical dimensions, assembly fit and appearance inspected according to approved drawings • Production support: Customized shape, size, logo, sample development, trial orders and stable batch production available • Applied standards: ASTM, ICI, BS, DIN, JIS, ISO and customer-specified technical requirementsMaterialStainless steel, customized according to drawing
Applicable IndustryArchitectural hardware / door and window systems / commercial building fittings

Selling Point

• Silica-sol investment casting suitable for curved, decorative and complex architectural handle structures • Multiple stainless steel grades available for different strength, appearance and corrosion-resistance requirements • CNC machining available for spindle interfaces, mounting holes, threaded holes and lock connection positions • Brushed, satin, mirror-polished, passivated and decorative coating finishes available • Customized handle shape, size, logo and surface appearance supported according to project requirements • Critical dimensions, assembly fit and appearance inspected before shipment • Sample development, trial orders and stable batch production supported

Stainless Steel Door Handle Spindle Connector

Stainless Steel Door Handle Spindle Connector


Stainless Steel Door Lock Cam Connector

Stainless Steel Door Lock Cam Connector


Stainless Steel Architectural Door Handle Assembly

Stainless Steel Architectural Door Handle Assembly


Stainless Steel Door Handle Mounting Roses

Stainless Steel Door Handle Mounting Roses


Stainless Steel Door Lock Faceplate

Stainless Steel Door Lock Faceplate

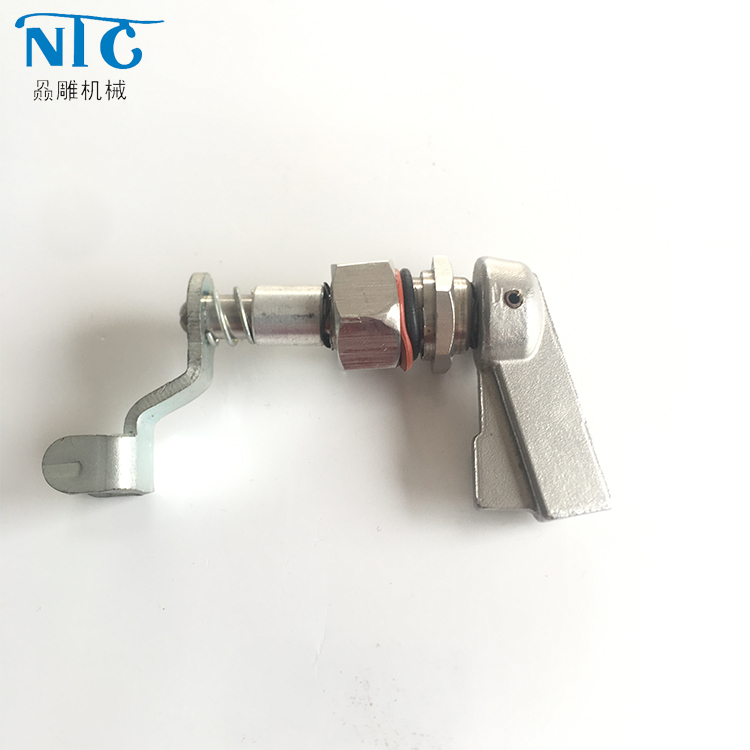

Stainless Steel Door Handle Lock Mechanism

Stainless Steel Door Handle Lock Mechanism


Stainless Steel Curved Architectural Door Handle

Stainless Steel Curved Architectural Door Handle


Stainless Steel Door Lever Lock Assembly

Stainless Steel Door Lever Lock Assembly


Architectural Door Lock Lever Component

Architectural Door Lock Lever Component


Stainless Steel Door Handle Pivot Base

Stainless Steel Door Handle Pivot Base


Stainless Steel Rectangular Door Lever Handle

Stainless Steel Rectangular Door Lever Handle

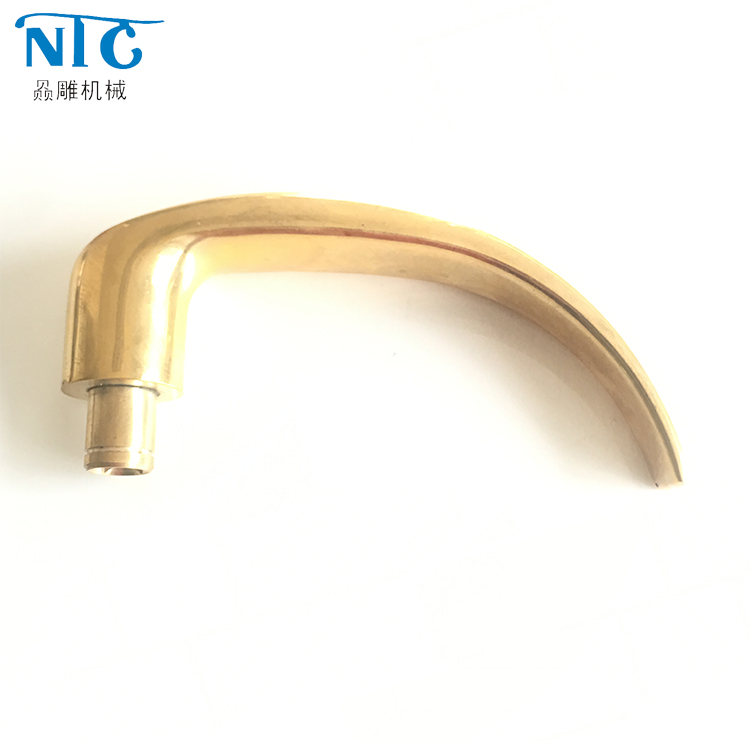

Decorative Stainless Steel Door Lever Handle

Decorative Stainless Steel Door Lever Handle
