Precision Investment Cast Stainless Steel Marine Hinge and Deck Fitting

Name: "Precision Investment Cast Stainless Steel Marine Hinge and Deck Fitting"
Rating: 5 (515 reviews)

Quantity:

SKU: 5797762765

Model: OEM / Custom Drawing No. 1008

NTC

Enter Shop

Product Details

Product Specification

Type	Marine Hinges, Deck Fittings and Connection Hardware	Model	OEM / Custom Drawing No. 1008
Params	• Processing mode: Custom silica-sol investment casting according to customer-approved 2D drawings, 3D models or physical samples • Material options: Austenitic stainless steel 201, 303, 304, 316, 316L, 1.4581, SCS14 and SCS16 • Part weight: 2 g–550 g, subject to product structure and drawing requirements • Casting accuracy: Tolerance grade T4–CT7 • Surface roughness: Ra 1.6–Ra 6.3, depending on casting and finishing requirements • Minimum wall thickness: 2 mm standard; 1 mm available for limited local areas subject to process review • Fillet requirements: Minimum outer radius ≥ 0.3 mm; minimum internal fillet ≥ 0.5 mm • Machinable features: Pin holes, mounting holes, hinge positions, mating surfaces, threaded holes and connection interfaces • Machining capability: CNC turning, milling, drilling, boring, threading, grinding and deburring • Heat treatment: Solution treatment and other processes selected according to material and mechanical property requirements • Surface treatment: Grinding, satin polishing, mirror polishing, passivation and customized surface finishing • Inspection standard: Material composition, pin-hole dimensions, mounting-hole positions, fit, critical dimensions and appearance inspected according to approved drawings • Production support: Prototype development, small-batch orders and stable volume production available • Applied standards: ASTM, ICI, BS, DIN, JIS, ISO and customer-specified technical requirements	Material	Stainless steel, grade per drawing (304 / 316 when specified)
Applicable Industry	Marine equipment / yacht hardware / boat deck systems / shipbuilding suppliers

Selling Point

• Stainless steel investment casting suitable for marine hinges, deck fittings and connection hardware • 304 and 316 stainless steel options available for different corrosion-resistance requirements • Complex hinge bodies, pin holes and mounting structures can be manufactured according to customer drawings • CNC machining available for pin holes, threaded holes and critical mating surfaces • Optional satin polishing, mirror polishing and passivation for improved appearance and marine durability • Critical dimensions, assembly fit and surface quality inspected before shipment • Prototype development, small-batch orders and stable volume production supported

Stainless Steel Marine Rigging Turnbuckle

Stainless Steel Marine Retaining Sleeve

Stainless Steel Marine Hinge Mounting Bases

Stainless Steel Marine Hinge Connection Base

Stainless Steel Marine Adjustable Hinge Lever

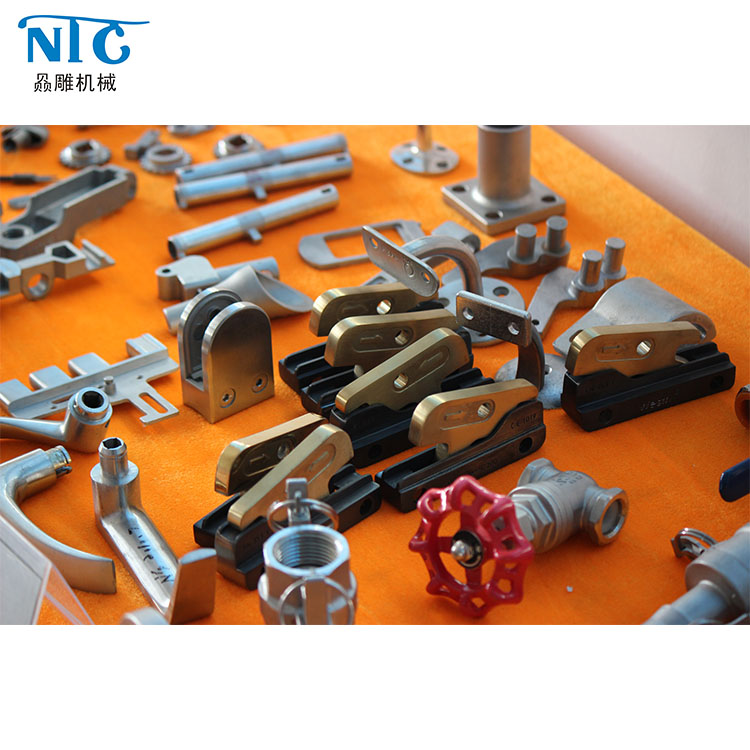

Stainless Steel Marine Hardware Components
