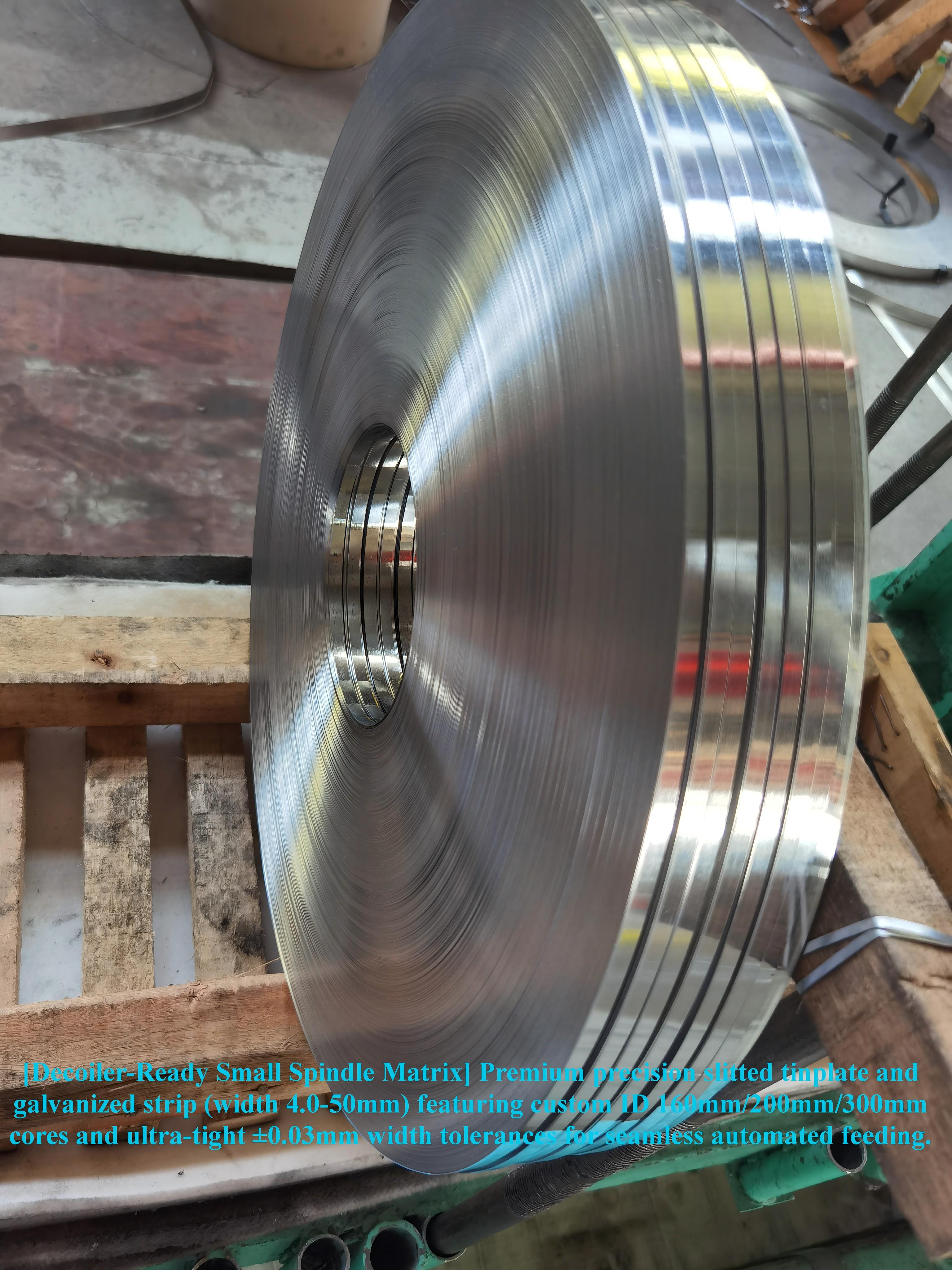

Precision Slit Tinplate Strip 200mm Inner Diameter for Automated High-Speed Stamping
This Precision Slit Tinplate Strip (Model PTS-HP-S160) features a 200mm inner diameter, offering a balance between coil size and handling convenience. It is designed for automated high-speed stamping processes where precision and consistency are paramount.
Key Features
- 200mm Inner Diameter: Provides a robust core for large-volume stamping runs, reducing coil changeover frequency.
- Ultra-Thin & Narrow: Thickness 0.10–0.60mm and width 4.0–100mm, enabling material-efficient designs.
- High Dimensional Accuracy: Width tolerance ±0.05mm and burr ≤0.05mm ensure consistent strip feeding.
- Jointless Winding: Zero telescoping and camber-free for smooth unwinding, minimizing downtime.
- Anti-Rust Edge Protection: Post-slit treatment safeguards against corrosion in humid climates.
- BV ISO9001:2015 Certified: Manufactured under a quality management system.
Technical Specifications
| Parameter | Value |
|---|
| Model | PTS-HP-S160 |
| Thickness Range | 0.10–0.60 mm |
| Width Range | 4.0–100 mm |
| Width Tolerance | ±0.05 mm |
| Burr Precision | ≤0.05 mm |
| Inner Diameter (ID) | 200 mm |
| Winding Quality | Jointless, zero telescoping, camber-free, tight tension |
| Edge Protection | Post-slit anti-rust treatment |
Models and Options
Available inner diameters: 160mm, 200mm, 300mm. Material options: Tinplate (ETP), Tin Free Steel (TFS), Galvanized Steel, Stainless Steel, Pre-painted & Color Coated Steel Strip.
Materials and Structure

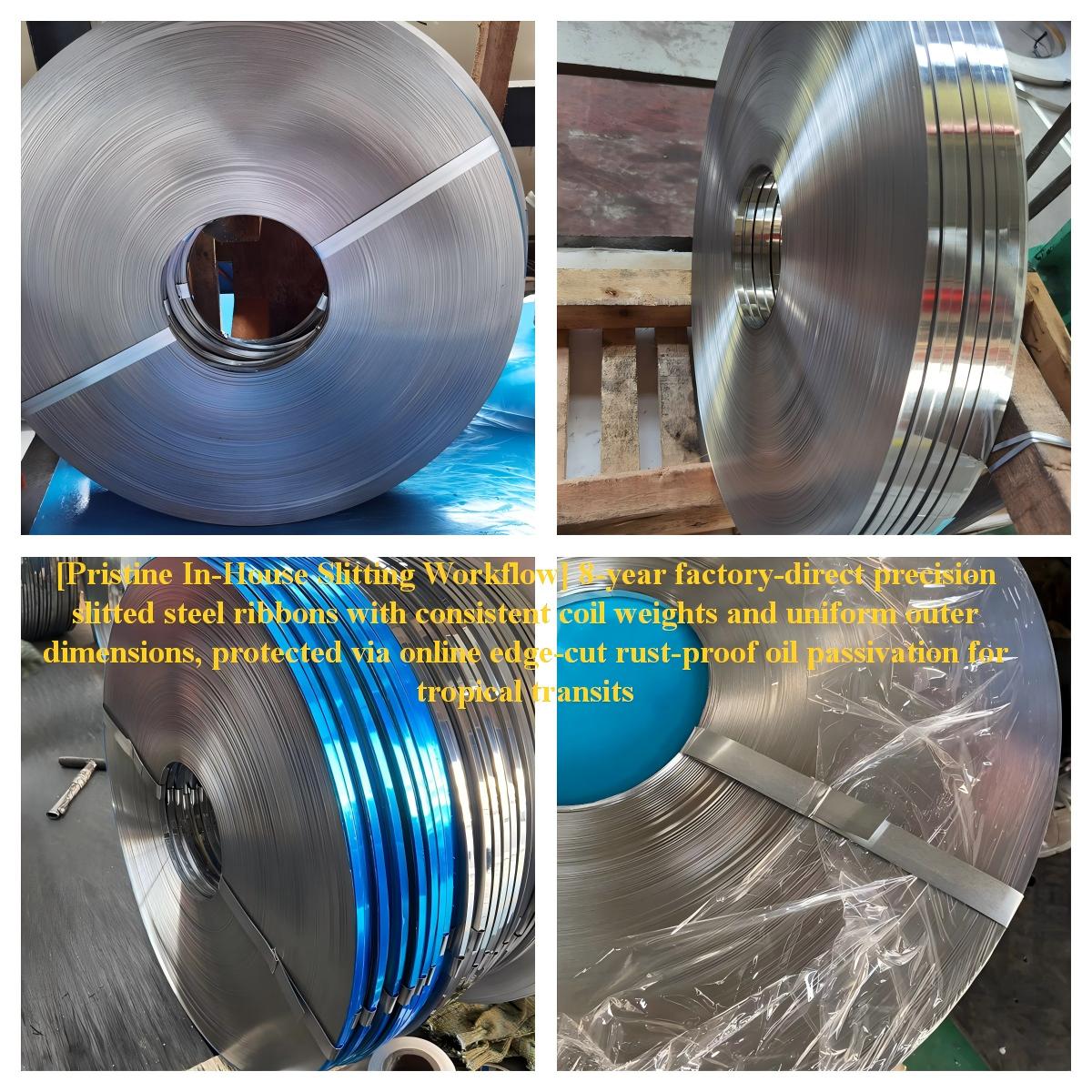

Base materials include ETP, TFS, Galvanized, Stainless, and Pre-painted steel. The strip features uniform thickness, consistent coil weight and outer diameter, and single-pack protection.
Applications
Used in precision metal stamping, electronics manufacturing, cable shielding & armoring, battery component manufacturing, automotive parts, and fine packaging.
Customization
Custom widths, thicknesses, and inner diameters available. MOQ: 2 tons or as per sizes. Pre-shipment tests include rust, joints, and waved sheet checks.
FAQ
What is the MOQ?
2 tons or as per sizes.
What payment terms do you accept?
T/T and L/C at sight.
What are the shipping methods?
FOB, CFR, CIF, DDP, DDU by ocean and air.
How do you guarantee quality?
Pre-shipment tests for rust, joints, waved sheet; BV ISO9001:2015 certified.
Can I order custom specifications?
Yes, we offer custom widths, thicknesses, and IDs.
What is the lead time?
Please contact us for specific lead times.
