RC Model Electric Vehicle Connector

Name: "RC Model Electric Vehicle Connector"
Rating: 5 (238 reviews)

SKU: 3888613868

Model: DXT90H-M+DXT90E-F Yellow

AOYG DC Power Connector

Enter Shop

Product Details

Product Specification

Type	1. DXT90H-M+DXT90E-F Yellow 2. DXT90H-M+DXT90E-F Yellow-CAP	Model	DXT90H-M+DXT90E-F Yellow
Params	Model: DXT90H-M+DXT90E-F Yellow Housing Color: Yellow Rated Voltage: DC 500V Continuous Current: 45A (10AWG wire, temperature rise＜85℃), Short-term Peak Current: 90A Terminal: Φ4.5mm Brass Gold-plated Banana Terminal Contact Resistance: ≤1.0mΩ Insulation Resistance: ≥2000MΩ Withstand Voltage: AC 2000V/1min Flammability Class: UL94 V-0 PA66 Nylon Operating Temperature: -20℃ ~ +120℃ Mating Cycles: ≥1000 times Salt Spray Test: 48 Hours for Gold-plated Terminal Protection Class: IP40 Recommended Wire: 10AWG Silicone Wire, compatible with 8AWG	Material	Housing: Flame-retardant PA66 Nylon UL94 V-0 (Yellow) Conductive Terminal: H62 Brass with gold plating Contact Spring: Beryllium copper, gold-plated Cable Crimp Sleeve: Brass
Applicable Industry	RC Model Electric Vehicle Connector, widely used for power connection of RC cars, RC boats, aircraft models and small UAV lithium batteries

Feature

1. High‑current performance: 90A continuous, 120A peak current, rated DC 500V. Low temperature rise under heavy load for stable power transmission. 2. Gold‑plated H62 brass terminals deliver low contact resistance, excellent salt‑spray & oxidation resistance, minimizing heating risk for long‑term service. 3. DXT90H male header with integrated cable sheath protects solder joints and relieves wire pulling stress, greatly improving harness reliability. 4. Bright yellow housing for easy circuit identification to avoid mis‑mating. PA66 UL94 V‑0 flame‑retardant material, wide operating temperature ‑20℃ ~ +120℃ for harsh working conditions. 5. Anti‑misplug keying prevents reverse polarity connection. IP40 protection grade, mating cycles ≥1000 times, suitable for indoor & outdoor equipment. 6. DXT90E female open‑shell design for convenient soldering work. Compatible with 10‑12AWG silicone wire. Secure locking prevents accidental disconnection. 7. RoHS 2.0 & REACH SVHC compliant. Widely used for UAV, RC hobby, portable energy storage, e‑bike, garden power tools, available for global export.

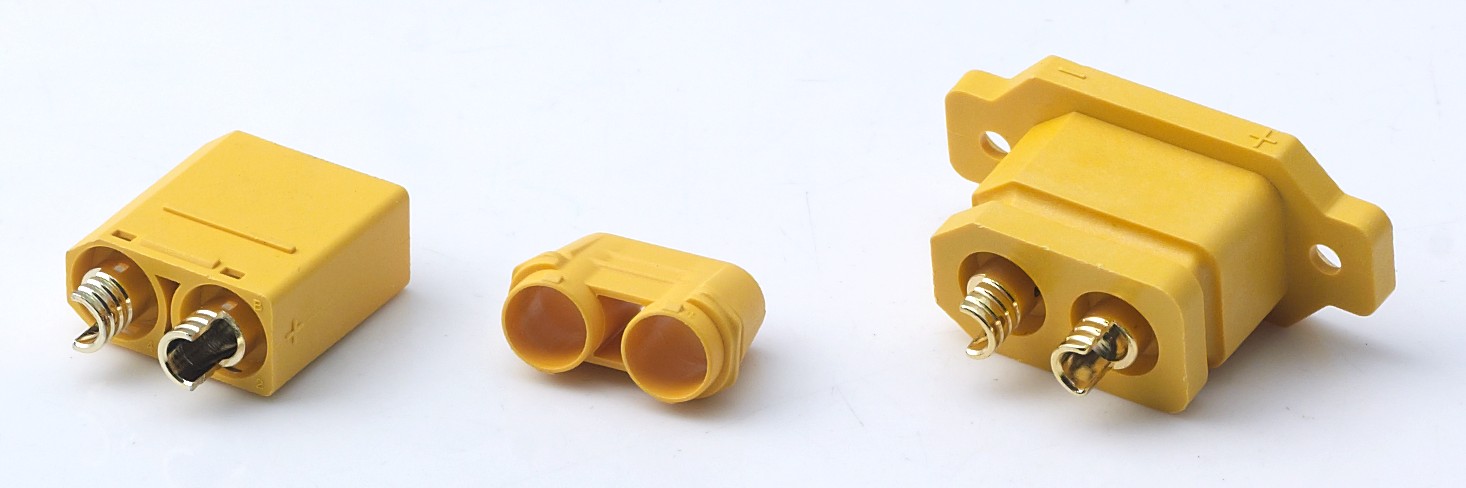

DXT90H-M+DXT90E-FYellow
