H1: Roll To Roll Digital Stamping Machine With Cold Foil UV And Embossing

Cold Foil · Spot UV · Embossing

Roll To Roll Digital Stamping Machine With Cold Foil UV And Embossing

Model HL1000L1-420 — one in-line unit for cold foil stamping, spot UV and embossing-debossing on roll-stock labels and flexible film.

Product Summary

The HL1000L1-420 is a roll-to-roll digital stamping machine that integrates three finishing processes in one unit: cold foil stamping, spot UV and embossing-debossing. Switching between processes is completed without changing equipment, so producers can answer diversified order requirements on a single line. Pattern data can be recalled with one click for repeat jobs, and the machine is built for high-speed in-line roll-stock production with non-stop operation. Developed in-house on long-term flexible-packaging experience, it is a cost-effective, easy-to-operate unit for improving production efficiency and management precision.

Key Features

Three Processes, One Unit

Cold foil stamping, spot UV and embossing-debossing are combined in one machine, and process switching is completed without changing equipment.

Low-Temperature Cold Foil

Zero deformation to heat-sensitive films keeps substrates perfectly flat, with sharp edges and no broken lines on fine small text and hollow-out patterns.

High-Speed In-Line Running

Roll-stock production runs with non-stop operation, and pattern data is recalled with one click for fast repeat jobs.

Material Compatibility

Compatible with film-type materials and hygiene-packaging materials. Surfaces must be flat, smooth and non-absorbent to varnish.

In-House Development

Self-developed machine programs and a stable, easy-to-operate design support smart factory construction at a cost-effective investment.

Technical Specifications

Parameter	Value
Model	HL1000L1-420
Foil stamping speed	30–100 strokes/min (mainly determined by stamping area and product length)
Foil stamping unit width	420 mm, laterally adjustable within the 1000 mm range
Unwind / rewind line speed	Max. 30–50 m/min
Unwind width	1000 mm
Unwind roll diameter	Φ800 mm
Rewind roll diameter	Φ800 mm
Guide roller length	1020 mm
Rewind accuracy	Edge alignment tolerance ≤2 mm
Core (paper tube) specifications	Inner diameter φ76 mm / outer diameter φ96 mm
Max. roll weight (unwind / rewind)	500 kg
Total power	10 kW
Power supply	380V ±5%, 50 Hz, three-phase four-wire
Clean compressed air supply	0.6 MPa
Machine weight	Approx. 3000 kg (calculated value)
Machine dimensions	Approx. 5000 × 2100 × 2000 mm (L × W × H)

Models and Options

Model HL1000L1-420 is the configured model for this specification set. The foil stamping unit is 420 mm wide and can be adjusted laterally within the 1000 mm range, allowing different pattern positions across the web. Core (paper tube) specifications are an inner diameter of φ76 mm and an outer diameter of φ96 mm.

Materials and Structure

The machine frame is built from iron for rigidity during continuous roll-stock running. The unit weighs approximately 3000 kg and measures approximately 5000 × 2100 × 2000 mm (L × W × H). The unwind and rewind stations accept rolls up to Φ800 mm in diameter with a maximum roll weight of 500 kg, and the 1020 mm guide roller supports a 1000 mm unwind width.

Applications

The HL1000L1-420 is used in Manufacturing environments for label digital embellishment and for roll-to-roll finishing of film-type materials and hygiene-packaging materials. Typical work includes cold foil decoration, spot UV highlights and embossing-debossing effects that require sharp edges on fine text and hollow-out patterns.

Customization

Tianzheng offers custom non-standard machinery for clients, supported by a 15-engineer R&D team and self-developed machine programs. Around 87% of components are produced in-house using 4 CNC machining centers, CNC lathes and precision grinding machines, which supports consistent part quality and independent control over machine quality and pricing.

Machine Views

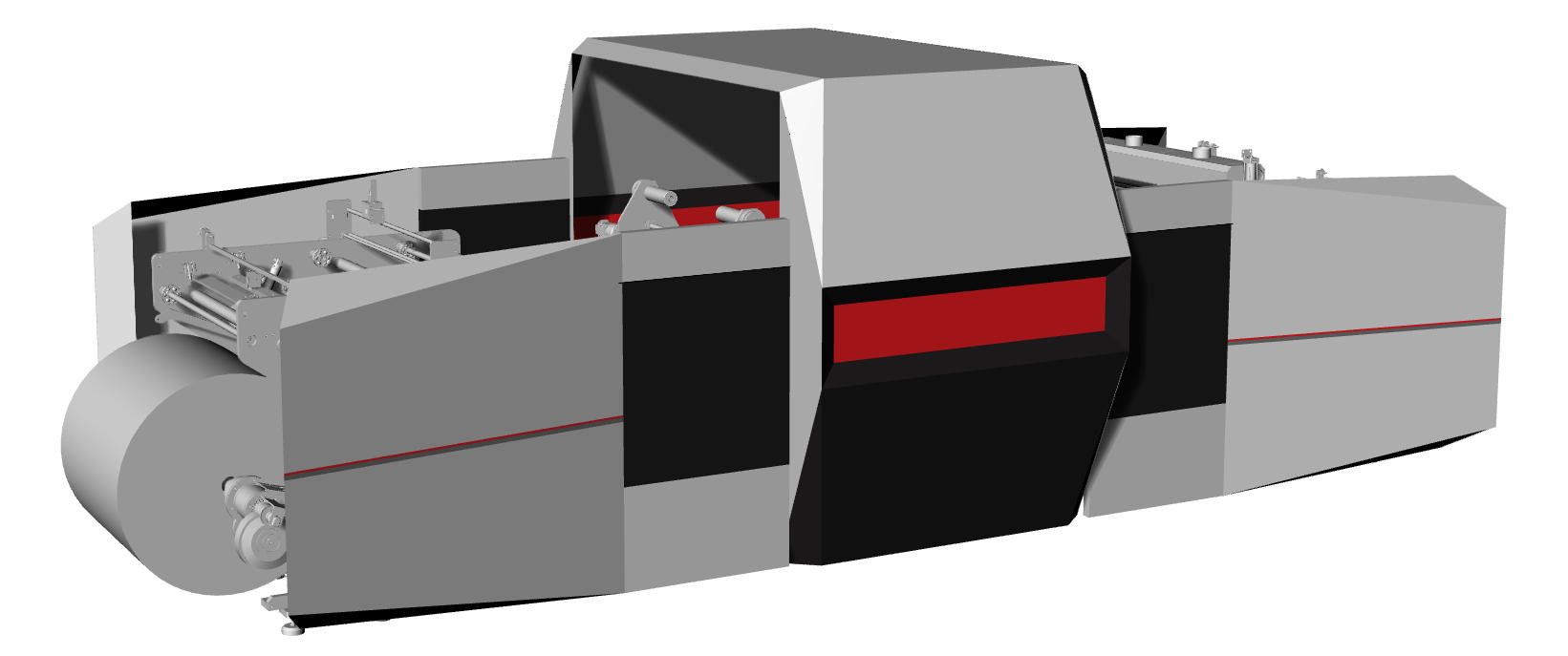

HL1000L1-420 digital stamping machine full roll to roll line — HL1000L1-420 roll to roll digital stamping machine

Cold foil stamping unit of the HL1000L1-420 digital stamping machine — Cold foil stamping unit, 420 mm width

Spot UV and embossing output sample on roll stock — Spot UV and embossing-debossing output

Fine text and hollow out pattern finished with cold foil — Fine text and hollow-out pattern, sharp edges

FAQ

Which processes can the HL1000L1-420 complete?

Cold foil stamping, spot UV and embossing-debossing. Switching between the three processes is completed without changing equipment.

How fast does the foil stamping unit run?

30–100 strokes/min. The actual speed is mainly determined by the stamping area and product length.

What foil and web widths are supported?

The foil stamping unit is 420 mm wide and laterally adjustable within the 1000 mm range. Unwind width is 1000 mm with a 1020 mm guide roller.

What are the power and air requirements?

380V ±5%, 50 Hz three-phase four-wire supply with 10 kW total power, plus clean compressed air at 0.6 MPa.

What roll sizes can the unwind and rewind handle?

Roll diameter up to Φ800 mm, core inner diameter φ76 mm and outer diameter φ96 mm, with a maximum roll weight of 500 kg.

How accurate is rewinding?

Edge alignment tolerance is ≤2 mm.

What materials can be processed?

Film-type materials and hygiene-packaging materials. The material surface must be flat, smooth and non-absorbent to varnish, and low-temperature cold foil causes zero deformation to heat-sensitive films.

Discuss your embellishment requirements with Tianzheng Machinery

Foshan Tianzheng Machinery Co., Ltd. — flexible-packaging equipment since 1993, ISO9001 and EU CE certified, exporting to more than 20 countries.

Send Inquiry On WhatsApp

Inquiry Information

Contact: Mr Huang — Email: tianzheng@tz980.com — Tel / WhatsApp: +8618028113815
Contact: Ms Xiao — Email: tz05@tianzhengmachinery.com — Tel / WhatsApp: +8618127143090
Contact: Ms Chen — Email: tz02@tianzhengmachinery.com — Tel / WhatsApp: +86 18127143229
Address: 528300, NO5 HUATIAN NORTH 4TH RD., HUAKOU INDUSTRIAL ZONE, RONGGUI, SHUNDE, FOSHAN CITY, GUANGDONG PROVINCE, CHINA
Website: www.tianzhengmachinery.com

Please share your substrate type, web width, required foil or UV pattern and target output so the machine configuration can be reviewed against your production line.
