| Type | Heavy-Duty Single-Outlet Tablet Press | Model | ZPTX340-24 / ZPTX340-29 / ZPTX340-36 |
| Params | Number of stations: 24/29/36; Maximum main compression: 120/100 kN; Maximum pre-compression: 20 kN; Maximum tablet diameter: 25/20/16 mm; Maximum output: 43,200/60,900/75,600 tablets/h; Motor: 5.5/7.5 kW; Dimensions: 950 × 930 × 1750 mm; Net weight: 1,800 kg. | Material | One-piece 2Cr13 stainless-steel die table, requiring no nickel plating. |
| Applicable Industry | Pharmaceuticals, nutraceuticals, and tablet manufacturing | ||
• Heavy-duty machine with one discharge outlet • HMI display of speed, output, pressure, tablet thickness, and filling depth • Optional force feeder, automatic lubrication, and punch-hole seals

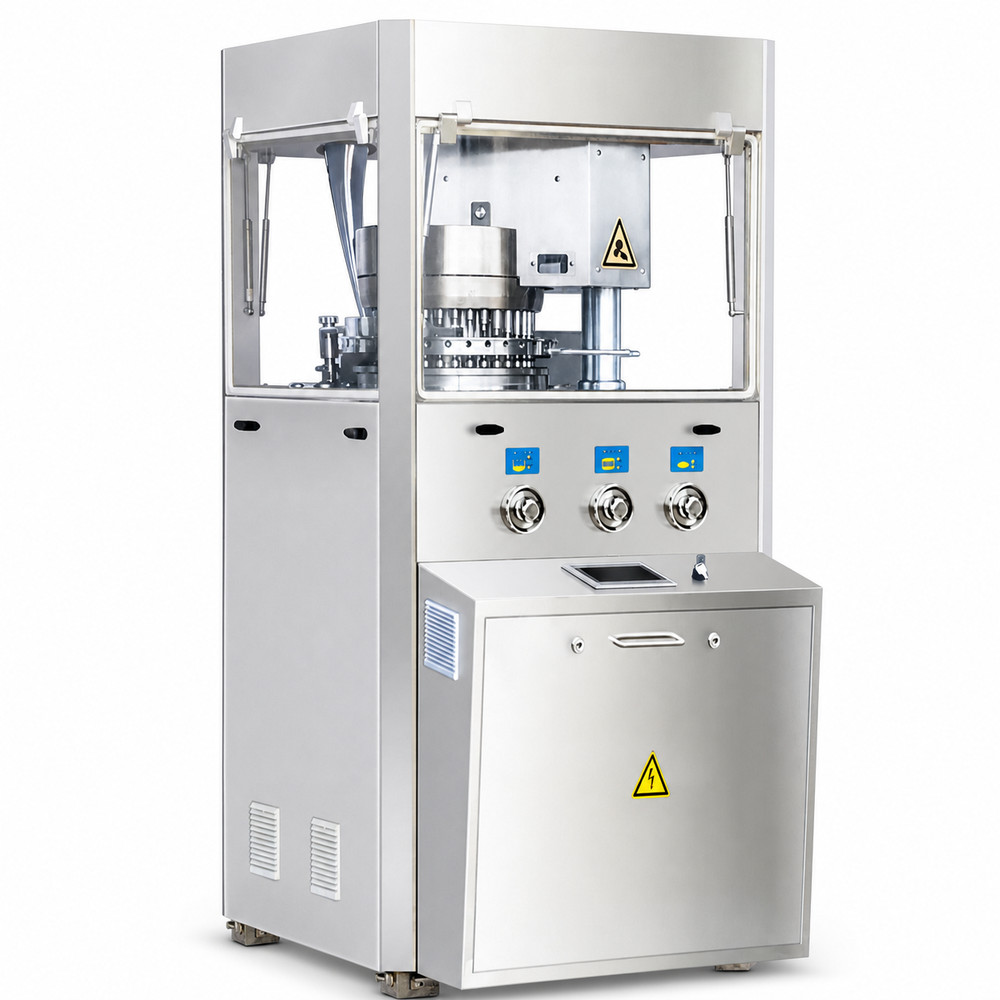

Rotary Tablet Press - ZPTX340-24 / ZPTX340-29 / ZPTX340-36
