Rotary Tablet Press

Quantity:
SKU: 7611378694
Model: 5439377700

{{ variable.name }}

{{ value.name }}

Product Specification

TypeHeavy-Duty Double-Outlet Tablet PressModelZPTX420-29 / ZPTX420-35 / ZPTX420-41 / ZPTX420-45
ParamsNumber of stations: 29/35/41/45; Maximum main compression: 120/100 kN; Maximum tablet diameter: 25/16/13/10 mm; Maximum filling depth: 15 mm; Maximum output: 104,400-205,200 tablets/h; Motor: 5.5/7.5 kW; Dimensions: 1240 × 980 × 1750 mm; Net weight: 1,800 kg.MaterialOne-piece 2Cr13 stainless-steel die table, requiring no nickel plating.
Applicable IndustryPharmaceuticals, nutraceuticals, and tablet manufacturing

Feature

• Heavy-duty structure with two discharge outlets • Standard HMI display of speed and output, with optional display of pressure, tablet thickness, and filling depth • Optional force feeder, automatic lubrication, and punch-hole seals

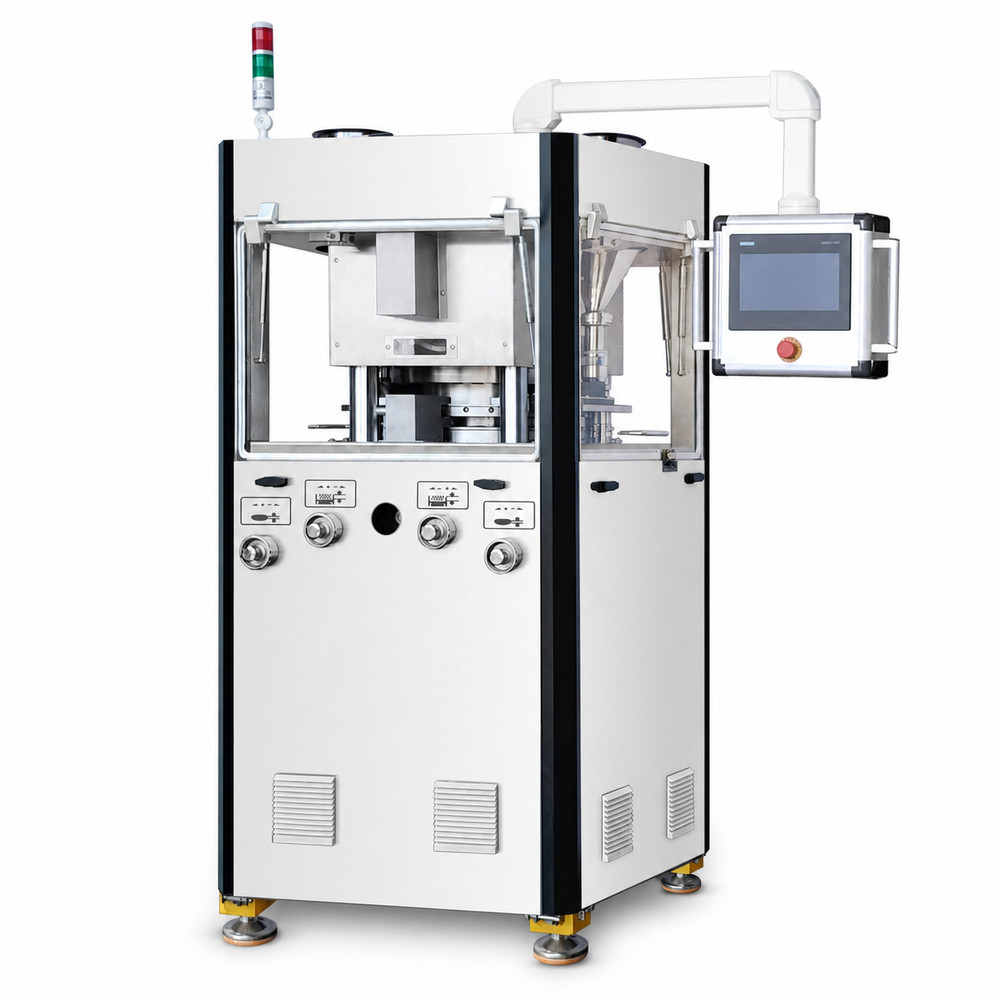

Rotary Tablet Press - ZPTX420-29 / ZPTX420-35 / ZPTX420-41 / ZPTX420-45

Rotary Tablet Press - ZPTX420-29 / ZPTX420-35 / ZPTX420-41 / ZPTX420-45
