Rotary Tablet Press

Quantity:
SKU: 3514581924
Model: 7866592594

{{ variable.name }}

{{ value.name }}

Product Specification

TypeDouble-Outlet Tablet PressModelZPTY550-35 / ZPTY500-43 / ZPTY500-53 / ZPTY500-59
ParamsNumber of stations: 35/43/53/59; Maximum main compression: 100 kN; Maximum pre-compression: 20 kN; Maximum tablet diameter: 25/16/13/10 mm; Maximum output: 159,600-318,600 tablets/h; Motor: 7.5 kW; Dimensions: 820 × 1100 × 1750 mm; Net weight: 2,800 kg.MaterialStainless steel
Applicable IndustryPharmaceuticals, nutraceuticals, and tablet manufacturing

Feature

• Two discharge outlets • HMI display of main compression, individual punch pressure, filling depth, speed, output, and liquid lubrication • Optional automatic weight control (AWC) and reject-tablet removal

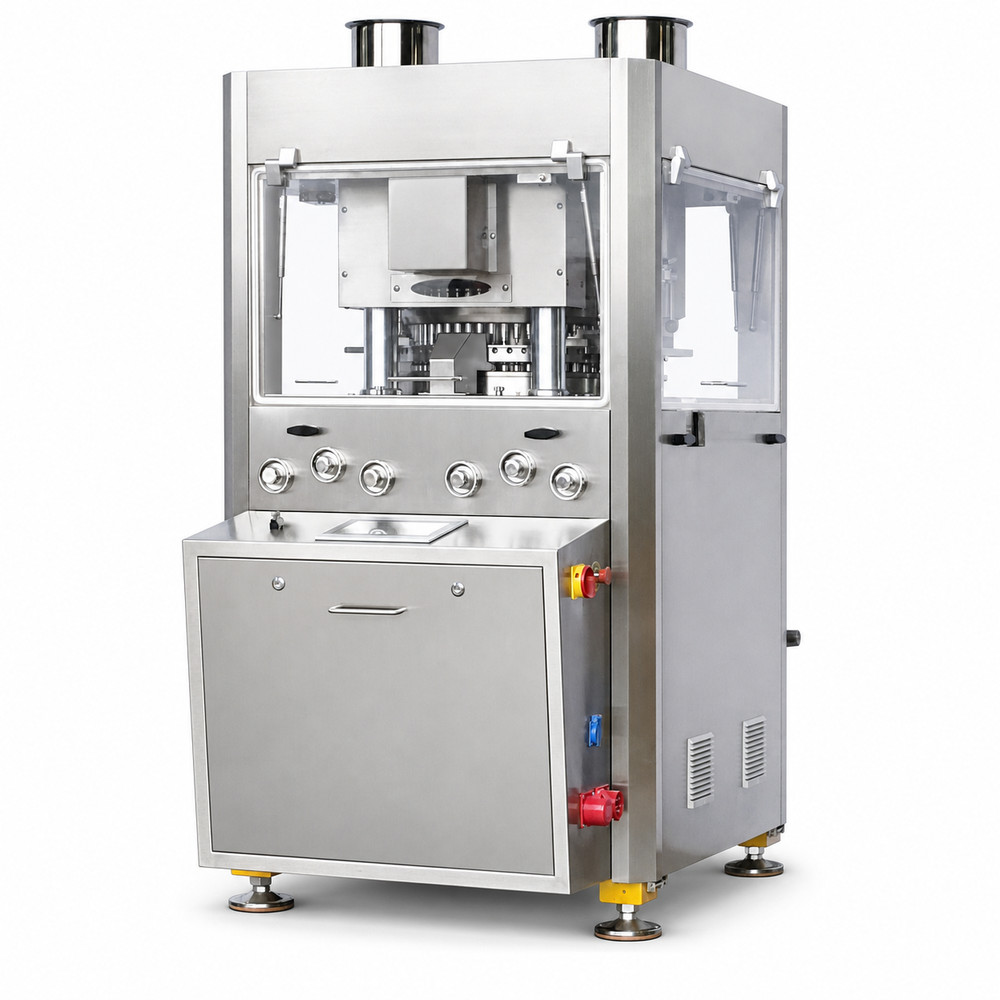

Rotary Tablet Press - ZPTY550-35 / ZPTY500-43 / ZPTY500-53 / ZPTY500-59

Rotary Tablet Press - ZPTY550-35 / ZPTY500-43 / ZPTY500-53 / ZPTY500-59
