Rotary Tablet Press

Quantity:
SKU: 5874609458
Model: 268312158X

{{ variable.name }}

{{ value.name }}

Product Specification

TypeCompact Single-Outlet Tablet PressModelZPTX226-16 / ZPTX226-17 / ZPTX226-19 / ZPT226-21
ParamsNumber of stations: 16/17/19/21; Maximum main compression: 80 kN; Maximum tablet diameter: 25/20/16/13 mm; Maximum output: 28,800/35,700/43,320/44,100 tablets/h; Motor: 4 kW; Dimensions: 890 × 680 × 1750 mm; Net weight: 900 kg.MaterialOne-piece 2Cr13 stainless-steel die table, requiring no nickel plating.
Applicable IndustryPharmaceuticals, nutraceuticals, and tablet manufacturing

Feature

• Compact design with one discharge outlet • Standard HMI display of speed and output, with optional display of pressure, tablet thickness, and filling depth • Optional force feeder, automatic lubrication, punch-hole seals, and pre-compression

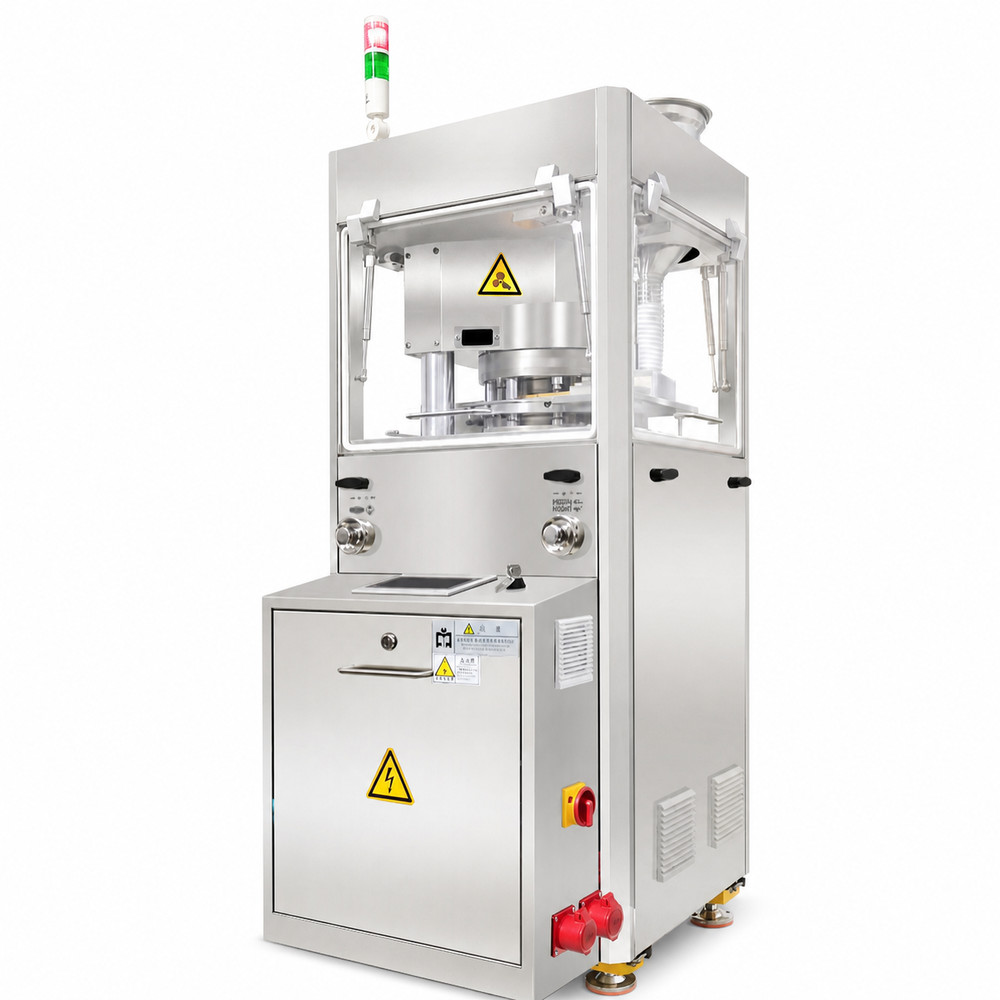

Rotary Tablet Press - ZPTX226-16 / ZPTX226-17 / ZPTX226-19 / ZPT226-21

Rotary Tablet Press - ZPTX226-16 / ZPTX226-17 / ZPTX226-19 / ZPT226-21
