SS304 Stainless Steel Water Leak Alarm Valve DN25
Robust SS304 body with conductive sensing, designed for demanding environments. Integrated buzzer alarm and relay output, auto shut-off in under 3 seconds.
Key Selling Points
- Durable SS304 Construction: Stainless steel body provides superior corrosion resistance for harsh environments, extending product lifespan.
- Integrated Alarm + Shut-off: Conductive sensor detects water, triggers buzzer, and drives motorized valve to cut water supply in one system, providing a one-stop solution.
- Extreme Response <3s: From detection to shut-off in under 3 seconds, minimizing water damage.
- Dual Output: Buzzer for local alarm, relay dry contact for remote monitoring.
- IP44 Rating: Suitable for wet and dusty environments.
Technical Specifications
| Model | WLAV |
| Power Supply | DC12V |
| Detection | Conductive Sensing |
| Size | DN25 |
| Alarm Output | Buzzer + Relay Dry Contact |
| Sensor Cable Length | 1m (standard), 1-5m optional |
| Material | SS304 |
| Protection Rating | IP44 |
Models and Options
Model WLAV is available in DN15, DN20, and DN25 sizes. Material options include ABS and SS304. Sensor cable length customizable.
Materials and Structure
Body constructed from SS304 stainless steel for strength and corrosion resistance. The integrated structure includes sensor probe, buzzer, relay, and motorized valve in a single unit.
Applications
Ideal for industrial water systems, food processing, pharmaceutical industry, and small laboratories where hygiene and durability are critical. Also applicable to fire protection systems and smart water management.
Customization
Customizable sensor cable length and packaging. OEM/ODM available with MOQ of 1 unit.
FAQ
1. What is the maximum working pressure?
Specifications for working pressure are not provided, please contact us for detailed information.
2. Is the SS304 body resistant to corrosion?
Yes, SS304 offers excellent corrosion resistance.
3. Can the sensor cable be extended to 5m?
Yes, optional cable lengths are available up to 5m.
4. Does it work with DC12V only?
Yes, power supply is DC12V, adapter included.
5. What is the protection rating?
IP44.
6. How does the relay output work?
Provides a dry contact for integration with building management systems.
7. Is it suitable for food processing?
Yes, SS304 material is safe and hygienic.
Inquiry Information
For pricing and order, contact: Mrs Wang, Email: tf.co@tfjt.com, Tel: +86 022 85685296, WhatsApp: +86 18920338351.

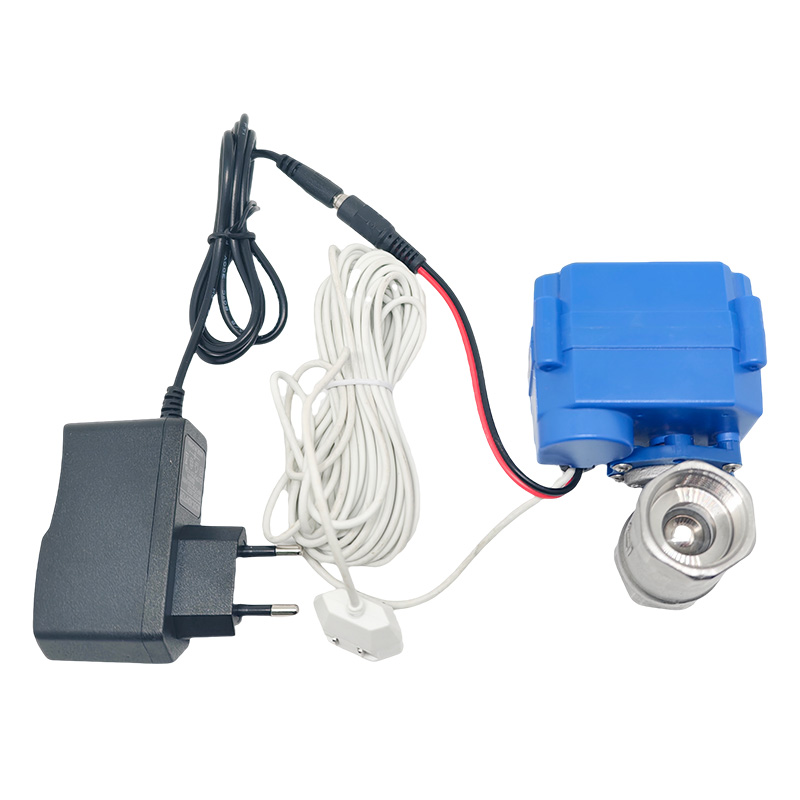

Image Suggestions: Main image (SS304 body), image2 (installed). Alt: 'Water leak alarm valve DN25 stainless steel body', 'Water leak alarm valve DN25 installed view'.
