Seamless Carbon Steel Pipe for High-Pressure Services
Product Summary
Our seamless carbon steel pipe is manufactured without a weld seam, offering superior strength and reliability for high-pressure applications. Produced through hot rolling or cold drawing processes, it meets Q235B and ASTM A53 standards, with a full range of sizes from 10.3mm OD to 3048mm OD and wall thicknesses up to 80mm. This pipe is ideal for oil and gas, boiler, and high-stress mechanical applications.
Key Selling Points
- No seam, reliable performance: Seamless construction eliminates potential weld defects, suitable for high-pressure systems.
- Wide size range: OD from 10.3mm to 3048mm and WT from 0.5mm to 80mm to match various requirements.
- Manufacturing flexibility: Hot rolled and cold drawn options to achieve desired mechanical properties.
- Standards compliance: Meets ASTM, API, EN, DIN, JIS, and GB standards for global acceptance.
- Custom surface treatments: Oiled, black painted, or galvanized to protect against corrosion.
Technical Specifications
| Parameter | Value |
|---|
| Product Type | Seamless Steel Pipe |
| Manufacturing Process | Hot Rolled, Cold Drawn |
| Section Shape | Round, Square, Rectangular |
| Outer Diameter (OD) | 10.3mm – 3048mm |
| Wall Thickness (WT) | 0.5mm – 80mm |
| Length | 5.8m, 6m, 11.8m, 12m or Customized |
| Pipe End Type | Plain End, Beveled End, Threaded |
| Surface Treatment | Black Painted, Oiled, Galvanized, 3PE Coating, FBE Coating, Pickling |
| Coating Type | Zinc Coating, Epoxy Coating, PE Coating, Anti-corrosion Coating |
| Zinc Coating | 30g/m² – 600g/m² |
| Standard | ASTM, API, EN, DIN, JIS, GB |
| Material Grade | Q235B, ASTM A53, Carbon Steel |
Models and Options
Seamless pipes are available in both hot rolled and cold drawn conditions. Hot rolled pipes offer economical solutions for general applications, while cold drawn pipes provide tighter tolerances and improved mechanical properties. End types include plain, beveled, and threaded, with various coatings as needed.
Materials and Structure
Manufactured from solid carbon steel billets, which are heated and pierced to create a hollow tube without any welding. The absence of a seam provides uniform strength and resistance to pressure, making it suitable for critical applications. Material grades Q235B and ASTM A53 are available, with possible additions of alloying elements for enhanced performance.
Applications
Designed for high-pressure services in oil and gas industry, such as downhole tubing, casing, and transmission lines. Also used in hydraulic systems, boiler tubes, and mechanical components where high reliability is essential.
Customization
We can customize OD, WT, length, end finish, and surface treatment. For high-pressure applications, we can also provide additional testing such as hydrostatic tests and ultrasonic inspection. Contact us for your specific requirements.
FAQ
What is the difference between hot rolled and cold drawn seamless pipe?
Hot rolled pipes are formed at high temperatures, offering cost-effectiveness for standard applications. Cold drawn pipes are processed at room temperature for tighter tolerances and higher strength.
Can this pipe be used for high temperature services?
Yes, depending on the grade and specifications, it can be used in elevated temperature environments. Please discuss your application with our engineers.
What surface treatments are available?
We offer black painted, oiled, galvanized, 3PE, FBE, and pickling treatments to suit corrosion protection needs.
Do you provide certificates?
Yes, we provide material test reports and can arrange third-party inspection.
What is the MOQ?
MOQ is flexible based on specifications and customer requirements.
Inquiry Information
Name: Max
Email: mesco@mescogroup.com.cn
Tel: +86 151-3456-5556
WhatsApp: +86 151-3456-5556
Address: LiaohezhongerRoad 5, Development Zone, Dalian City, Liaoning Province, China
Image Filename and Alt Suggestions

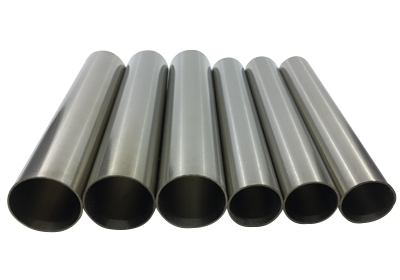

- Image 1: seamless-carbon-steel-pipe-q235b-high-pressure.png - Alt: Seamless carbon steel pipe Q235B for high pressure
