Servo Hydraulic Leveling Machine MHTR60 Series for Multi-Material Sheet Processing
The MHTR60 Series is a versatile servo-hydraulic high precision leveling machine engineered for processing a diverse range of materials including carbon steel, high-strength steel, stainless steel, aluminum, copper, mirror-finish sheet, and thick plate. With a working width of 600–3200mm and rated thickness of 1.0-8.0mm (max 15mm), this machine offers exceptional flexibility for manufacturers dealing with multiple metal types. The 21-roll design and servo-hydraulic hybrid drive ensure precise leveling with 0.01mm accuracy at speeds up to 10 m/min, all while consuming 70% less energy than traditional hydraulic systems. The mortise-tenon rigid frame guarantees long-term stability, and the alloy rolls are designed to be mark-free, preserving surface quality across various materials. Ideal for new energy, automotive, construction, and metal processing industries.
Key Selling Points
- Multi-Material Compatibility: Processes steel, aluminum, copper, mirror-finish sheets, and more without changing rolls.
- High Precision: ±0.01mm accuracy meets tight tolerances for critical parts.
- Energy Efficient: 70% energy savings reduce operational costs.
- Mark-Free Alloy Rolls: Prevent surface damage on sensitive materials like mirror-finish sheets.
- Fast Setup: Quick changeover between materials increases production flexibility.
Technical Specifications
| Parameter | Value |
|---|
| Working Width | 600–3200 mm |
| Rated Thickness | 1.0–8.0 mm |
| Maximum Thickness | 15 mm |
| Rolls | 21 |
| Speed | 0–10 m/min |
| Accuracy | ±0.01 mm |
| Drive | Servo-hydraulic hybrid |
| Certifications | ISO 9001:2015, CE |
Models and Options
The MHTR60 Series offers multiple configurations, including options for different working widths and automation levels. IoT connectivity and electric gap adjustment are available as add-ons. Consult our team for model recommendations based on your material mix.
Materials and Structure
Engineered to handle carbon steel, high-strength steel, stainless steel, aluminum, copper, mirror-finish sheet, and thick plate. The mortise-tenon rigid frame provides a stable base, while alloy rolls ensure gentle handling of delicate surfaces.
Applications
Suitable for industries requiring multi-material processing such as new energy, automotive, construction, shipbuilding, and general metal fabrication. Ideal for job shops that handle various metals.
Customization
We can tailor the machine to your specific material handling needs, including roll materials, gap adjustment methods, and integration with existing production lines. IoT options available.
Case Study
A US manufacturer utilized this machine for laser cutting parts, achieving an 80% profit increase and successfully solving enterprise difficulties. The order spanned 4 years with a value of $850,000.
FAQ
Can it process aluminum and copper without damage?
Yes, the alloy rolls are designed to be mark-free and handle softer metals gently.
What is the changeover time between different materials?
Changeover is quick due to easy gap adjustments and roll access, minimizing downtime.
Does it comply with ISO standards?
Yes, it is ISO 9001:2015 certified.
Can I integrate it with my existing line?
Yes, customization options include integration with uncoilers, laser cutters, and other equipment.
What is the typical delivery time?
Delivery terms are FOB/CIF/DAP; exact lead time depends on configuration, please inquire.
Inquiry Information
MOQ: 1 unit. Payment: 30% deposit, 70% before shipment. Pre-shipment testing available. Contact us for a tailored solution.
Contact: Jack | Email: mhtg@gdmht.com | Tel/WhatsApp: +86 173-4062-1852
Product Gallery

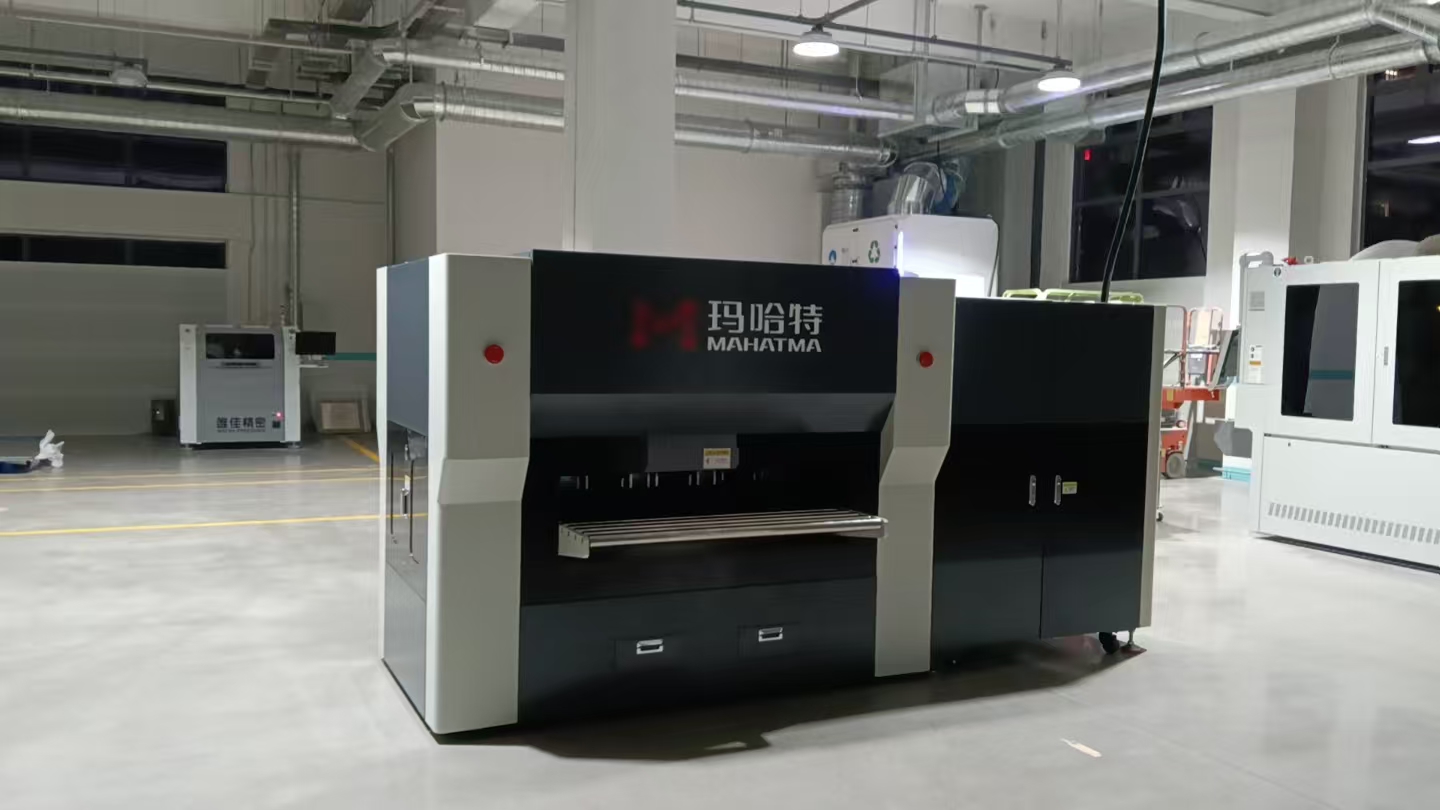

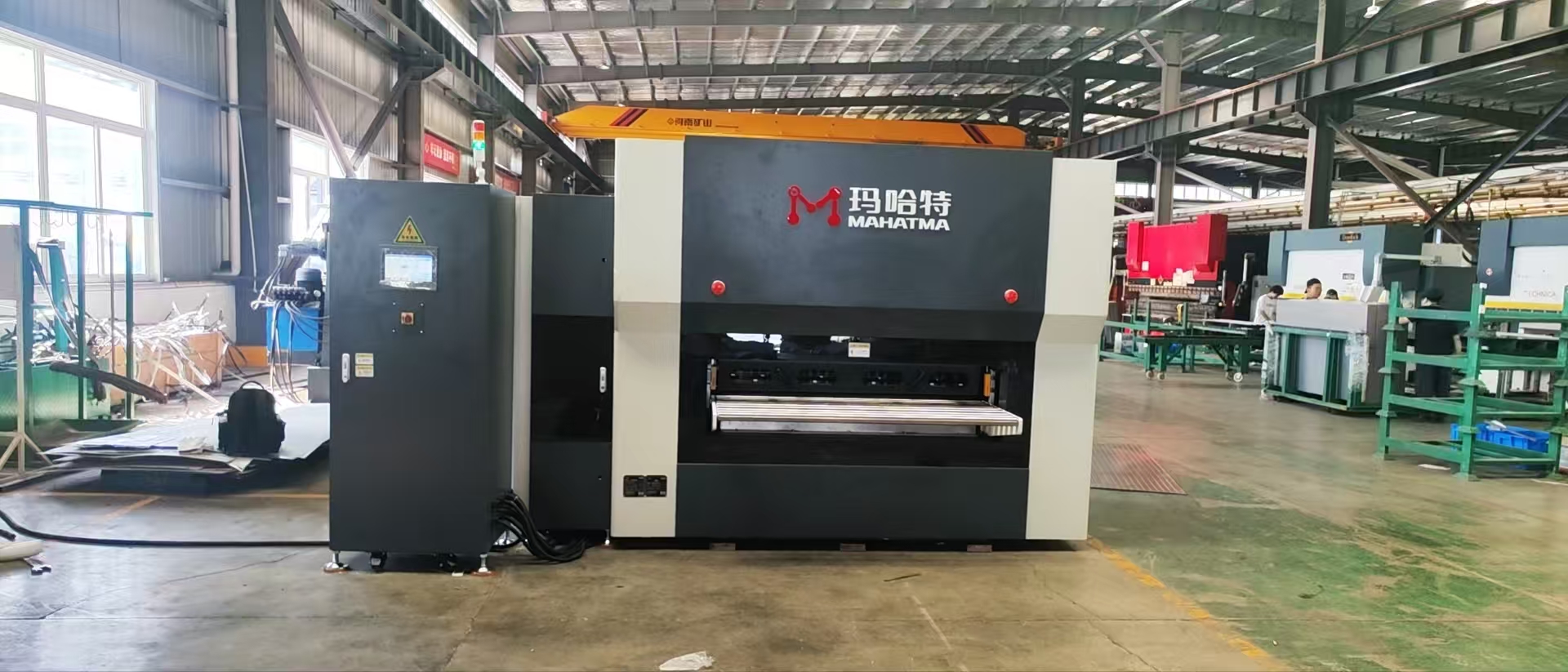

Images showing the MHTR60 processing various materials, including a close-up of the rolls.
