The MHTR60 Series is a servo-hydraulic high precision leveling machine designed for heavy-duty industrial applications. With a working width of 600–3200mm and rated thickness range of 1.0-8.0mm (max 15mm), this machine is built to flatten thick carbon steel, high-strength steel, and stainless steel plates with micron-level accuracy up to 0.01mm. It integrates German hydraulic and CNC technology, featuring a mortise-tenon rigid frame and servo-hydraulic hybrid drive for consistent, mark-free leveling. The anti-collapse dynamic compensation system ensures stable operation under extreme loads, while the energy-saving design reduces power consumption by 70% compared to traditional hydraulic levelers. Ideal for new energy, military, heavy industry, shipbuilding, and aerospace sectors.

Key Selling Points

• 0.01mm Accuracy: Achieve micron-level flatness for precision components, reducing downstream rework.
• 70% Energy Saving: Servo-hydraulic hybrid drive cuts energy consumption by 70% versus traditional hydraulic systems, lowering operating costs.
• Mark-Free Alloy Rolls: Alloy rolls prevent surface marks, preserving plate quality for visible applications.
• Anti-Collapse Compensation: Dynamic compensation maintains roll gap stability under heavy loads, ensuring consistent leveling.
• Wide Material Compatibility: Handles carbon steel, high-strength steel, stainless steel, aluminum, copper, and mirror-finish sheets.
• CE Certified: Meets European safety standards, facilitating EU market entry.

Technical Specifications

Models and Options

The MHTR60 Series is available in multiple configurations to suit different production needs. Optional features include IoT connectivity for remote monitoring and predictive maintenance, and electric gap adjustment for automated control. Please contact us for specific model details.

Materials and Structure

This machine is designed to process carbon steel, high-strength steel, stainless steel, aluminum, copper, mirror-finish sheet, and thick plate. The robust mortise-tenon rigid frame ensures long-term stability and precision, while the alloy rolls are tailored for mark-free operation.

Applications

Ideal for thick plate straightening in steel structure fabrication, shipbuilding, heavy construction machinery, and bridge construction. It eliminates internal stress in thick plates to ensure flatness for subsequent welding or assembly.

Customization

We offer customization options including working width, leveling speed, and automation level. Optional IoT connectivity for remote monitoring and predictive maintenance is available. Contact us to discuss your requirements.

Case Study

US Manufacturer (4-year partnership): Leveling laser cutting parts with an order value of $850,000. The solution increased their profit by 80% and effectively solved enterprise difficulties.

Frequently Asked Questions

What materials can the MHTR60 handle?

It handles carbon steel, high-strength steel, stainless steel, aluminum, copper, mirror-finish sheet, and thick plate up to 15mm.

What is the leveling accuracy?

The machine achieves micron-level accuracy up to 0.01mm.

What certifications does it have?

The machine is CE certified and complies with ISO 9001:2015.

What is the energy consumption compared to traditional hydraulic levelers?

It saves up to 70% energy due to the servo-hydraulic hybrid drive.

Can it prevent surface marks on sheets?

Yes, the alloy rolls are designed to be mark-free, protecting the sheet surface.

What is the maximum working width?

The maximum working width is 3200mm.

Inquiry Information

MOQ: 1 unit. Delivery: FOB/CIF/DAP. Payment: 30% deposit, 70% before shipment. Pre-shipment testing available. Contact us for a quotation.

Contact: Jack | Email: mhtg@gdmht.com | Tel/WhatsApp: +86 173-4062-1852

Product Gallery

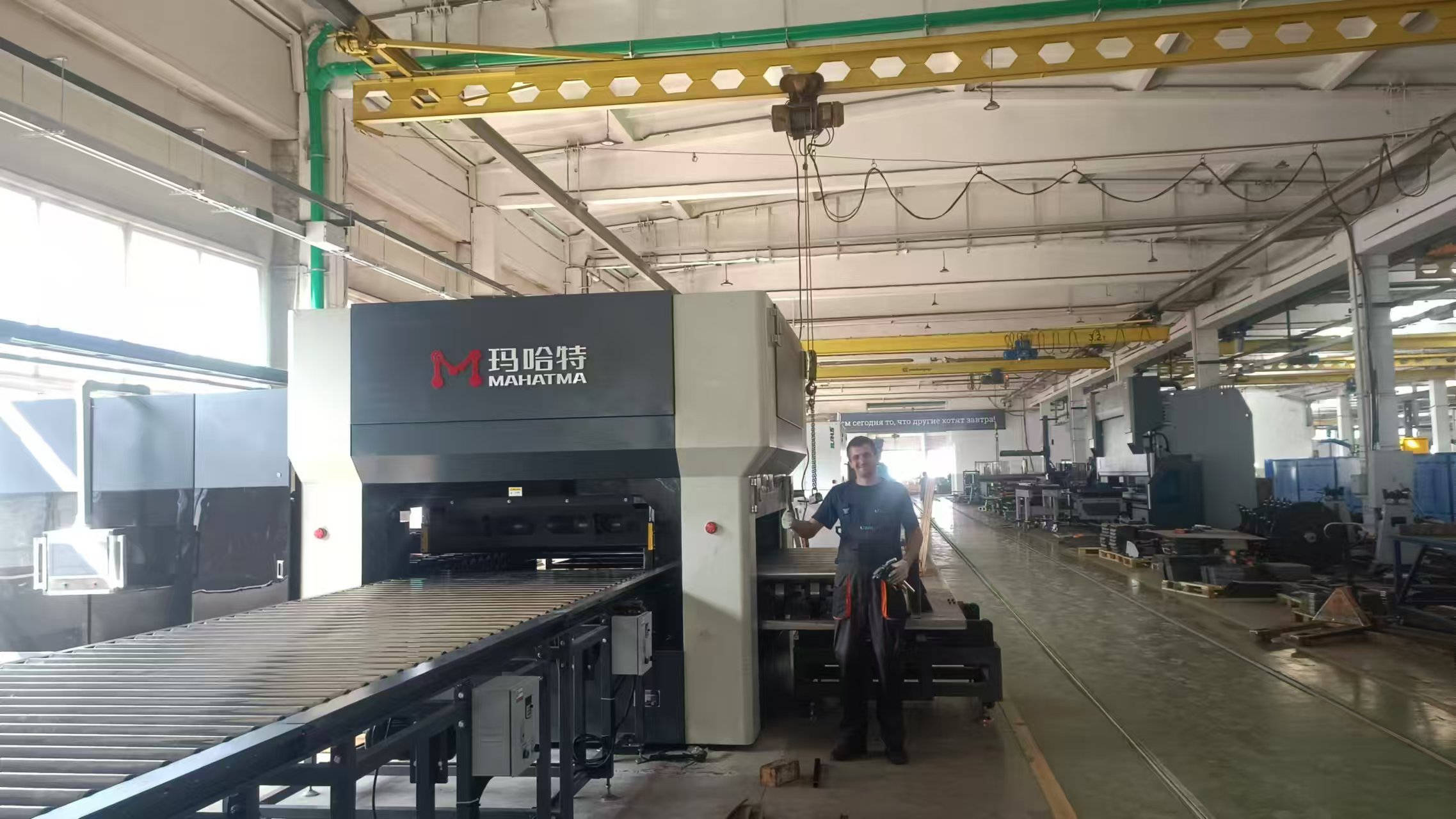

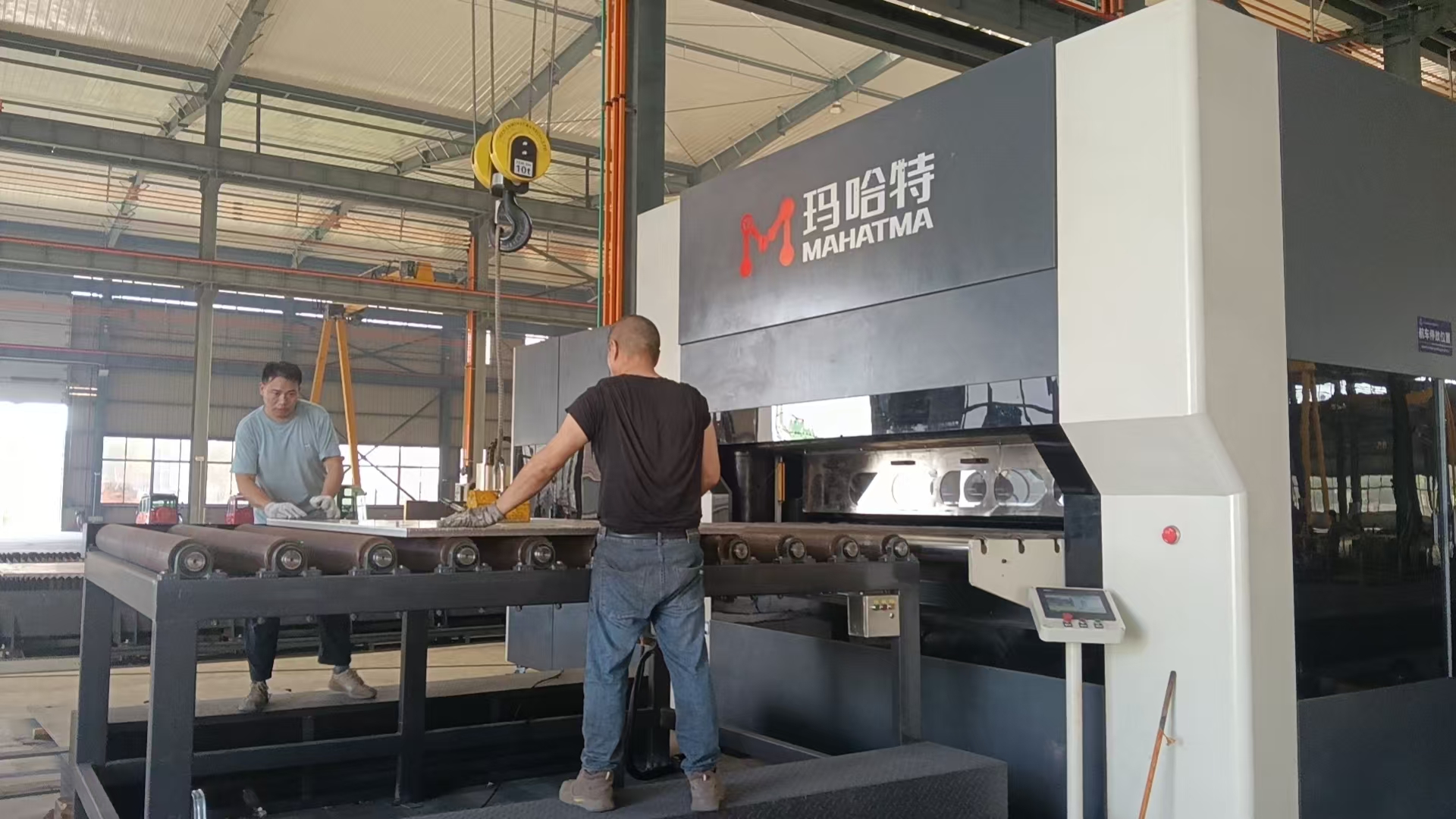

Main product image (MHTR60 Serie Hydraulic Leveler), plus on-site operation photos showing the machine in a heavy industrial environment.
