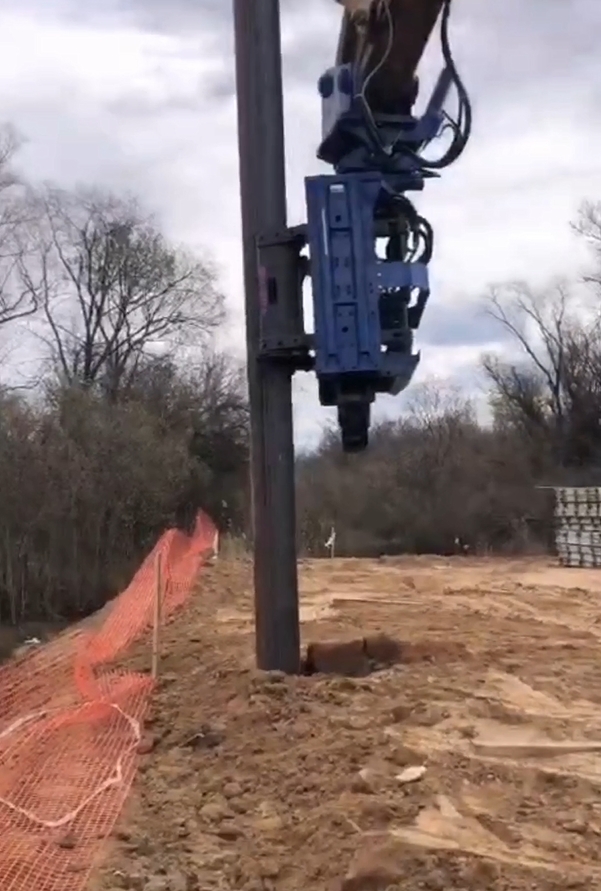

Side Grip Hydraulic Pile Driver – Efficient Pile Driving in Tight Spaces

The side grip hydraulic pile driver is designed for sheet pile installation in confined areas where conventional overhead clamping is not feasible. Its side-clamp mechanism allows operation under low headroom and narrow corridors, such as under bridges or inside tunnel pits. The machine generates high-frequency vibration transmitted through the side clamp to liquefy soil and reduce friction, enabling efficient pile driving and extraction.

Key Selling Points

• Side Clamp Design for Confined Spaces – The clamping mechanism grips the pile from the side, allowing operation where vertical space is limited (e.g., under bridges).
• Low Noise Operation – Designed for urban environments and noise-sensitive areas, meeting strict noise regulations.
• High-Frequency Vibration – Hydraulic motor drives eccentric shafts at high speed, producing vertical vibration that liquefies soil and reduces resistance.
• Compatible with Excavators – Mounts onto standard excavators, utilizing existing hydraulic power (32 MPa, 420 L/min).
• Versatile for Sheet Piles and Concrete Piles – Suitable for various pile types commonly used in foundation pit support.

Technical Specifications

Note: Exact specifications may vary depending on excavator and pile conditions. Contact our team for detailed compatibility.

Models and Options

The side grip pile driver is available in the SV series (e.g., SV-600, SV-800) and can be customized with different clamp sizes. The side clamp design is also offered as an option on standard FV series models.

Materials and Structure

Manufactured from high-strength steel, the side clamp assembly is reinforced to withstand the lateral forces during pile driving. The eccentric vibration system is enclosed for safety and durability.

Applications

• Sheet pile driving under bridges and overpasses
• Foundation pit support in urban areas with limited space
• Noise-restricted construction sites near hospitals or schools
• Retaining wall installation in narrow trenches

Customization

We offer custom clamp sizes to fit specific pile profiles (e.g., U-type, Z-type sheet piles). Also available with remote control for operator safety.

Case Study

Sheet Pile Driving Under Bridge (China) – A piling contractor used our side grip pile driver mounted on an excavator to install sheet piles under a highway bridge with only 2.5m headroom. The project was completed on time with zero noise complaints, and the machine operated reliably for over 2 years.

FAQ

1. What is the MOQ for side grip models? – MOQ is 1 set.
2. Can the side grip driver extract piles? – Yes, it handles both driving and extraction.
3. Is pre-shipment testing included? – Yes, each machine is tested before dispatch.
4. What certifications do you have? – ISO 9001:2015 certified.
5. What are the payment terms? – 30% advance, balance before dispatch.
6. How long does delivery take? – Typically 30-45 days, subject to customization.
7. What is the warranty? – Standard 12 months, extendable.
8. Do you provide installation training? – Yes, remote or on-site training available.

Inquiry Information

Contact:
Name: Joe Feng
Email: leon_lee@vibracn.com
WhatsApp: +86 13918742829
