Single-Acting Telescopic Hydraulic Cylinder for Dump Trucks

Name: "Single-Acting Telescopic Hydraulic Cylinder for Dump Trucks"
Rating: 5 (435 reviews)

Quantity:

SKU: 2626616443

Model: 1071545833

Apex Hydraulic

Enter Shop

Product Details

Product Specification

Type	Single-Acting Telescopic Hydraulic Cylinder Front-Mount Telescopic Dump Cylinder Gravity-Return Telescopic Cylinder Multi-Stage Dump Body Cylinder Pin-Mounted Telescopic Cylinder Heavy-Duty Dump Truck Hoist Cylinder North American Replacement Telescopic C	Model	S Series Single-Acting Telescopic Cylinders S42 Series S43 Series S52 Series S53 Series S62 Series S63 Series S64 Series S73 Series S74 Series S84 Series S85 Series S95 Series
Params	Acting Type: Single Acting Retraction Method: Gravity Return or External Load Return Cylinder Type: Multi-Stage Telescopic Cylinder Service Class: Heavy-Duty Mobile Hydraulic Service Number of Moving Stages: 2–5 Stages in Common Standard Dump-Cylinder Models General Sleeve Diameter Range: 1.75–14.00 in Standard Stocking-Model Largest Stage Class: Approximately 5–8 in General Stroke Range: 36–500 in Current Stocking-Model Stroke Range: 72–265 in Nominal Working Pressure: 2,000 PSI Nominal Working Pressure: 140 Bar Higher Pressure Application: Subject to Engineering Evaluation Standard Hydraulic Medium: Filtered Mineral-Based Hydraulic Oil Standard Operating Temperature: −40°F to +200°F Standard Operating Temperature: Approximately −40°C to +93°C Standard Mounting: Pin-Mounted Base and Plunger End Available Mounting Codes: CC, DB, DC and MB Standard Port Options: NPT or SAE O-Ring Boss, Depending on Model Typical Port Sizes: 1/2 in NPT, 3/4 in NPT, 1 in NPT, #8 SAE, #12 SAE or #16 SAE Extension Sequence: Largest Moving Stage Extends First Retraction Sequence: Smallest Moving Stage Retracts First Standard Dump Angle Range: Approximately 45–57 Degrees Surface Finish: Corrosion-Resistant Industrial Coating Manufacturing Basis: Verified Model Number, 10-Digit Part Number or Approved Drawing Quality Inspection: Dimensional Inspection, Stage Sequence Testing, Pressure Testing and Leakage Testing	Material	Cylinder Body: High-Strength Carbon Steel Telescopic Sleeves: High-Strength Carbon Steel Plunger: High-Strength Carbon Steel Stop Rings: Threaded Steel Sleeve V-Packing: Hytrel and Rubber Sleeve Wiper: Polyurethane Sleeve Bearings: Glass-Reinforced Nylon Packing Nut Lock: Steel Set Screw with Nylon Ball Wave Spring: Spring Steel Mounting Components: High-Strength Cast or Fabricated Steel Pins: Hardened Steel Surface Coating: Application-Specific Industrial Protective Coating
Applicable Industry	Dump Truck Manufacturing Construction Material Transportation Aggregate and Quarry Operations Mining and Earthmoving Road Construction Municipal Construction Fleets Sand and Gravel Transportation Agricultural Bulk Hauling Waste and Scrap Transportation Heavy-Duty Mobile Hydraulics Dump Truck Repair and Replacement Market Truck Body and Hoist Manufacturing	选型确认信息	Original Cylinder Model Number Original 10-Digit Part Number Number of Stages Stroke Length Closed Length Base and Rod-End Pin Diameters Mounting Widths Hydraulic Port Size and Position Dump Body Length Body Hinge-to-Cylinder Base Distance Rated Payload Required Dump Angle System Working Pressure Installation Photographs or Drawing
品牌及兼容性声明	Parker is a trademark of its respective owner. Parker model numbers and part numbers are used solely for identification and cross-reference purposes. Apex Hydraulic replacement cylinders are independently manufactured products and are not represented as Parker original products unless expressly stated.

Feature

Compatible cross-reference configurations for widely used North American S-Series telescopic dump cylinders. Broad model coverage from compact three-stage cylinders to long-stroke five-stage heavy-duty configurations. Single-acting hydraulic extension with dependable gravity return for dump-body applications. Long lifting stroke from a compact retracted package. High-strength carbon-steel body, sleeves and plunger for demanding mobile applications. Threaded steel stop rings simplify servicing and provide reliable stage stopping. Self-compensating wave springs and chevron packing support stable sealing performance. Polyurethane wipers help prevent dirt and abrasive contaminants from entering the cylinder. Glass-reinforced nylon bearings provide stage guidance while absorbing small contaminants. Model-number, 10-digit part-number, drawing and sample-based replacement manufacturing available. Standard and custom mounting, port orientation and stroke configurations available. Every completed cylinder undergoes stage-sequence, dimensional, pressure and leakage testing.

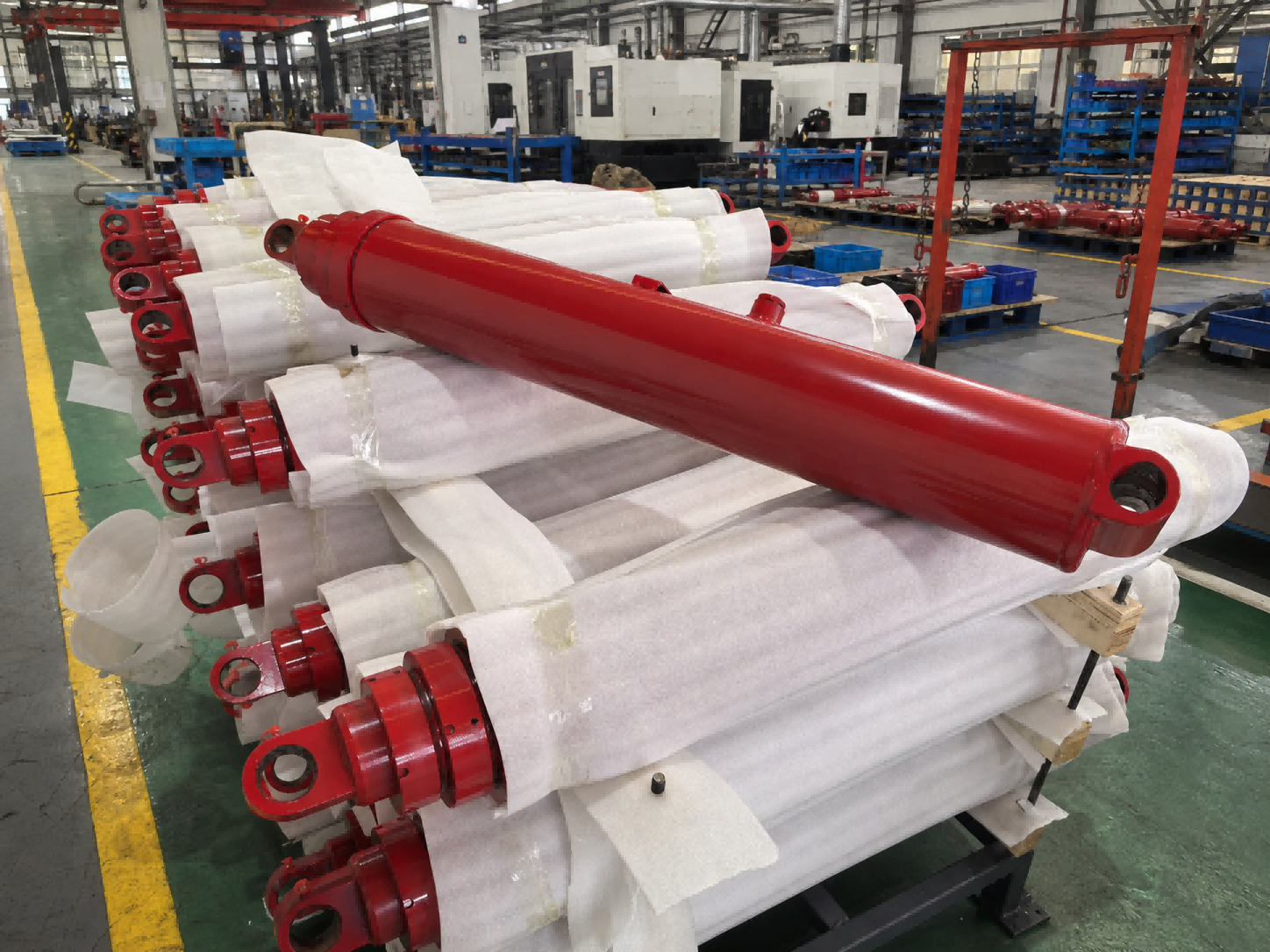

telescopic-dump-cylinder-mounting-detail

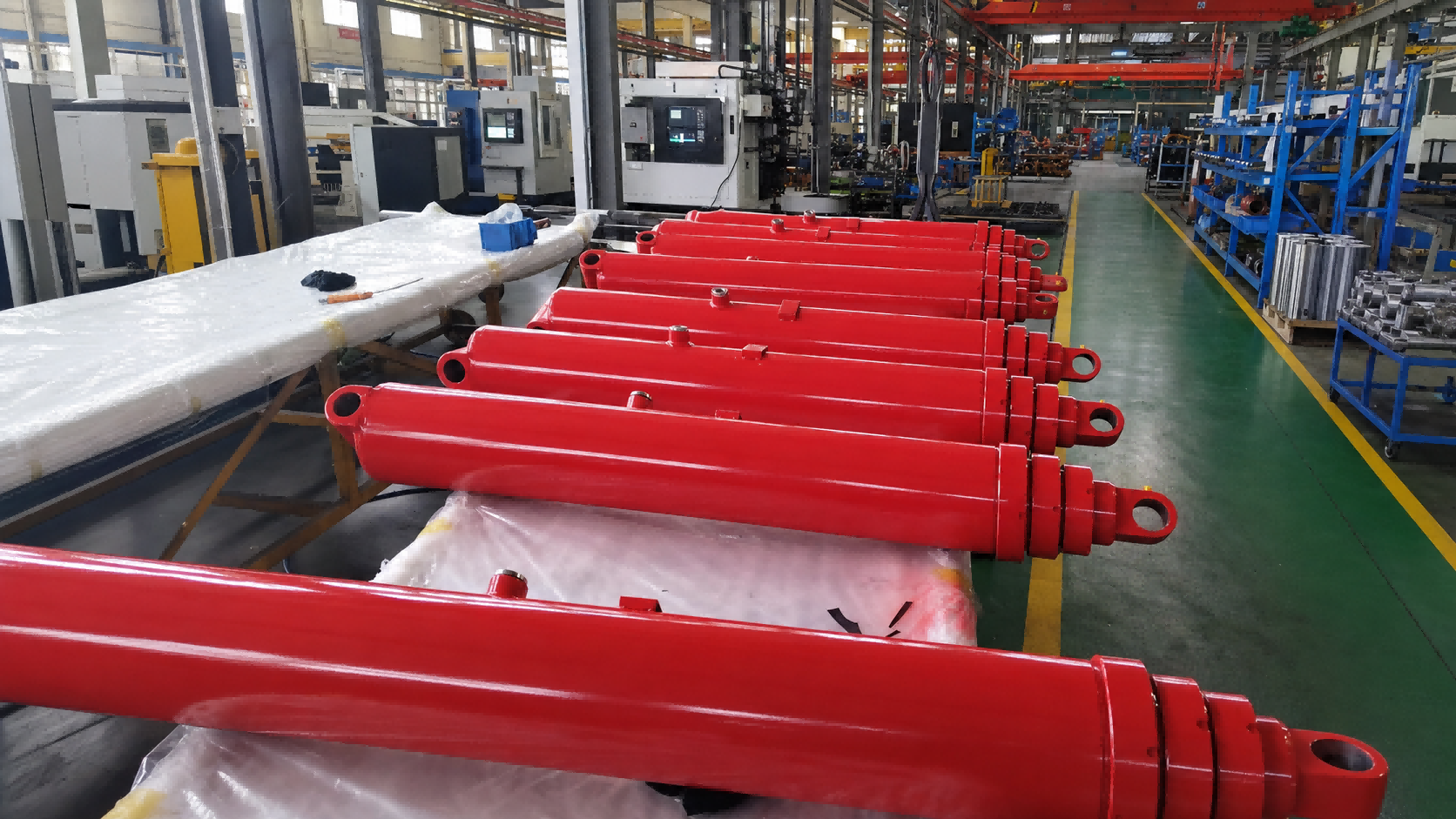

telescopic-cylinder-stage-sequence-testing

s85-five-stage-long-stroke-dump-cylinder

s63-heavy-duty-dump-truck-cylinder

s74-four-stage-telescopic-hydraulic-cylinder

s53-three-stage-telescopic-dump-cylinder

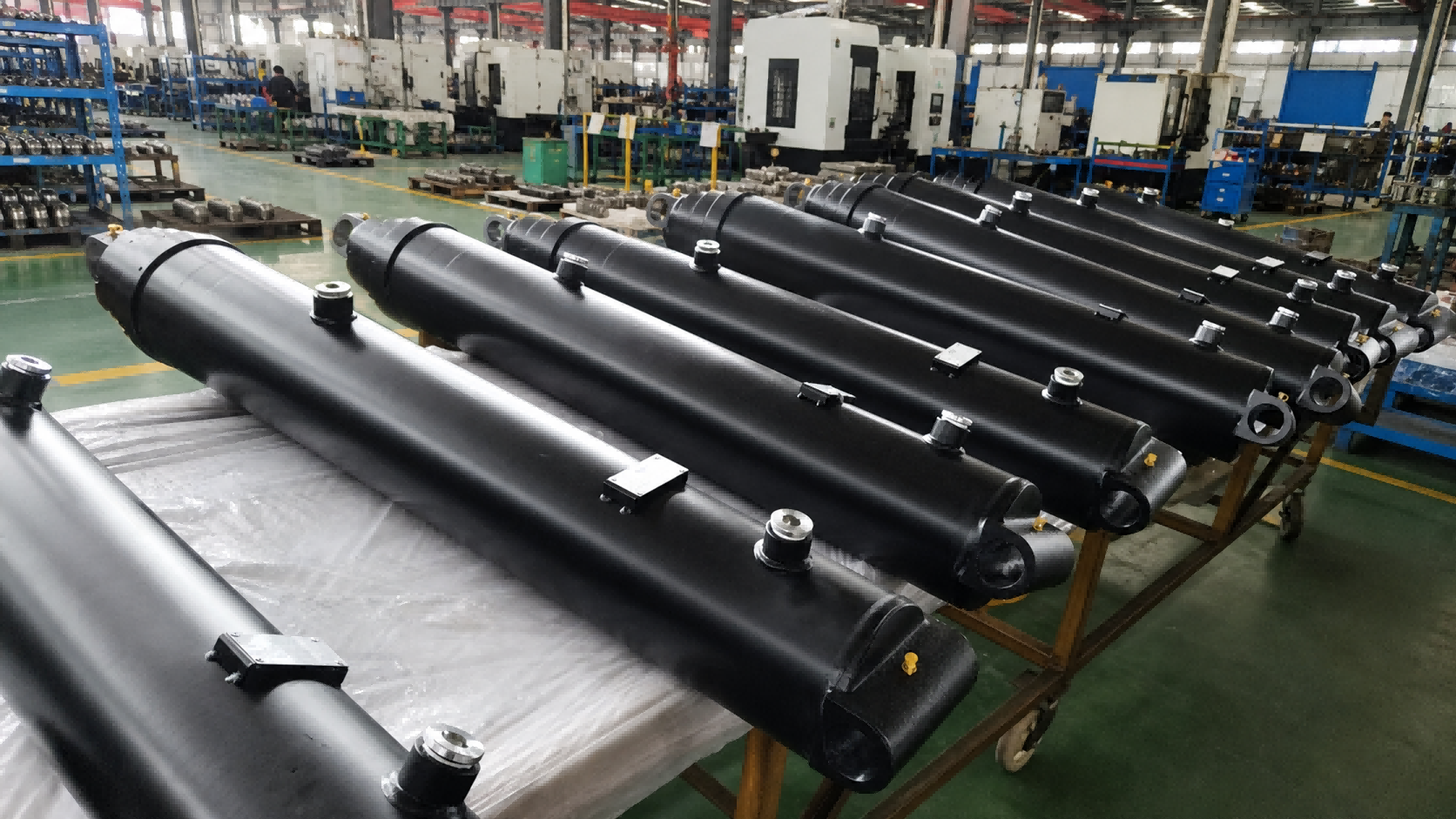

dump-truck-cylinder-hydraulic-port-detail

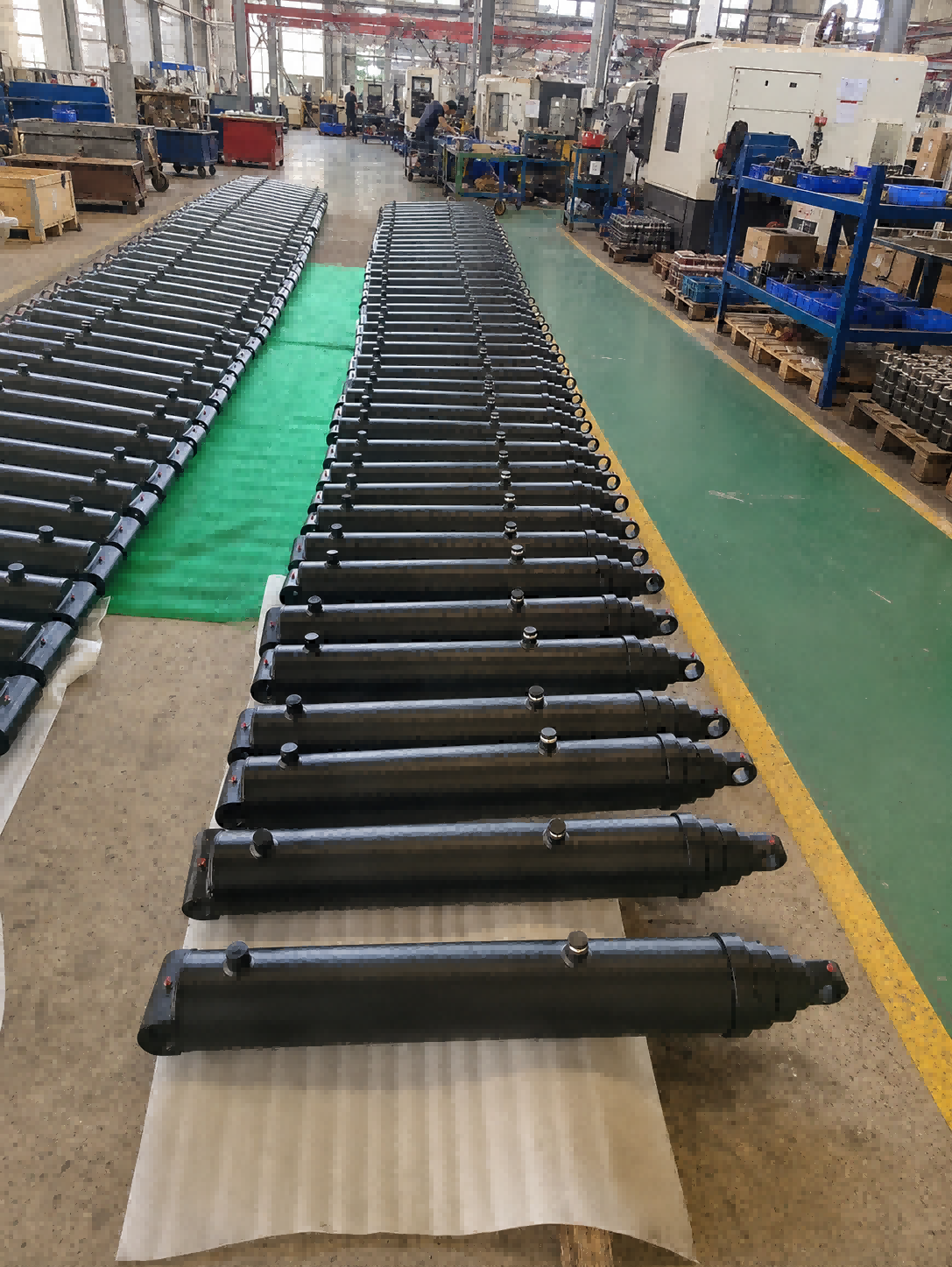

apex-s-series-single-acting-telescopic-cylinders

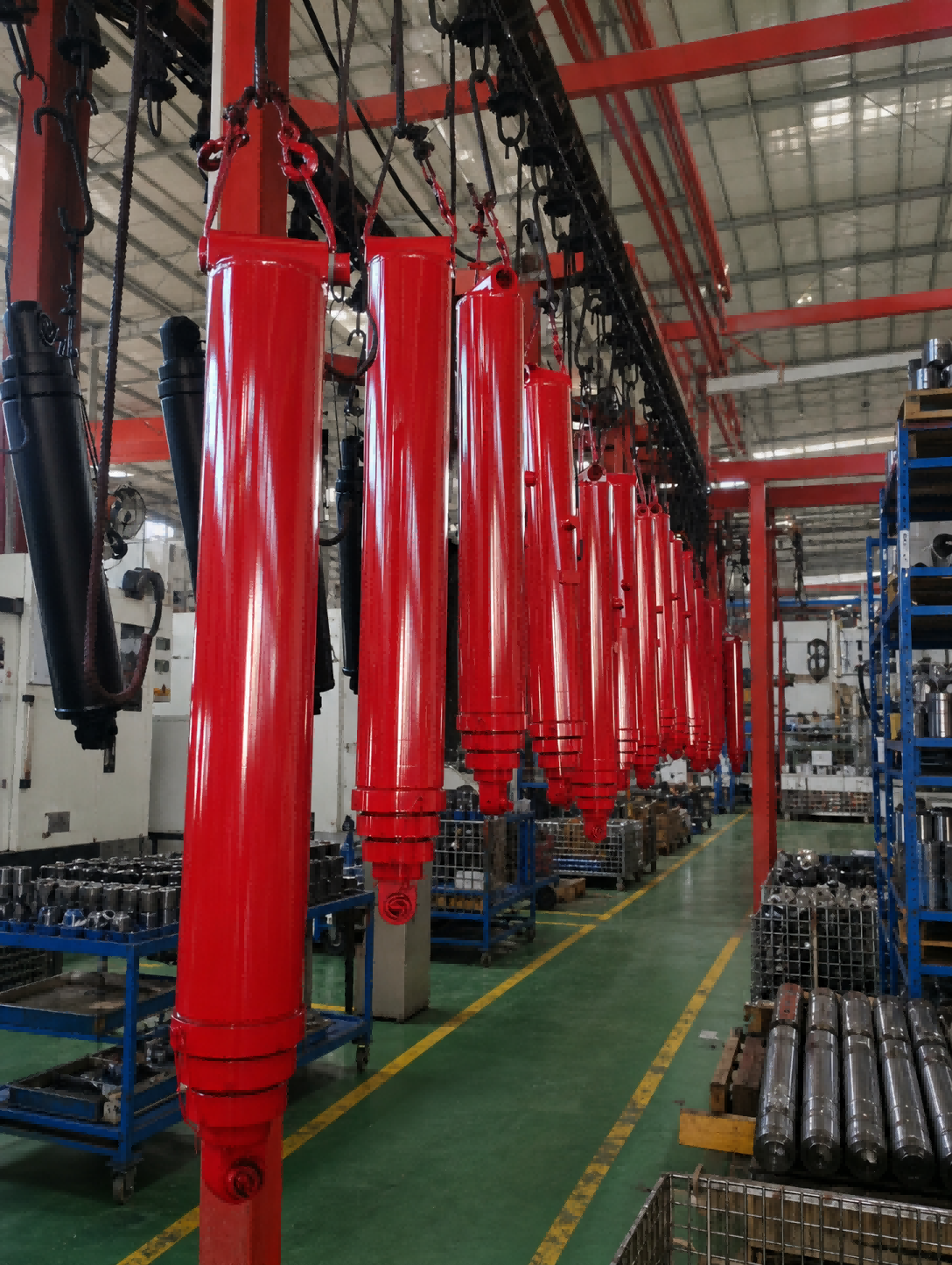

north-american-dump-truck-telescopic-cylinder
