Six-Side CNC Drilling Machine HK612A for Panel Furniture
Automate cabinet door and panel furniture production with high-speed precision drilling and tapping.
Product Summary
The CNC Six-Side Drilling Machine model HK612A is a high-efficiency solution for processing panel furniture components. With 27 drilling spindles (10 vertical top, 8 horizontal XY, 9 vertical bottom), it performs all necessary drilling operations in a single pass, significantly reducing cycle times. The machine handles workpieces up to 2800x1220mm and down to 140x40mm, making it suitable for a wide range of cabinet and door panels. Its carbon steel construction ensures rigidity and long-term stability.
Key Selling Points
- High-Speed Drilling: X-axis speed up to 120m/min and Z-axis 30m/min enable fast cycle times, boosting productivity for high-volume orders.
- Six-Side Processing: Simultaneous vertical and horizontal drilling from top and bottom allows complete hole patterns in one setup, reducing handling and errors.
- Versatile Workpiece Range: Handles panels from 140x40mm to 2800x1220mm, accommodating diverse furniture sizes.
- Compact Footprint: Machine dimensions 5200x2900x2300mm and 3500kg weight fit standard workshop layouts.
- CE Certified: Complies with EU safety standards (EN ISO 12100:2010, EN 60204-1:2018), facilitating entry into European markets.
Technical Specifications
| Parameter | Value |
|---|
| Working Length X-axis | 2800mm |
| Working Length Y-axis | 1220mm |
| Working Height Z-axis | 50mm |
| Max speed X-axis | 120m/min |
| Max speed Y-axis | 80m/min |
| Max speed Z-axis | 30m/min |
| Min processing size | 140*40mm |
| Max processing size | 2800*1220mm |
| Top vertical drilling tools | 10pcs |
| Horizontal drilling tools (XY) | 8pcs |
| Bottom vertical drilling tools | 9pcs |
| Machine size | 5200*2900*2300mm |
| Weight | 3500KGS |
Models and Options
Base model HK612A as specified. Options include vacuum pump, air compressor, and vacuum cleaner (as per related scenarios). Custom drilling patterns and software integration available on request.
Materials and Structure
The machine frame and structural components are made of carbon steel, providing high rigidity and stability during high-speed operations. The drilling units are designed for durability, suitable for continuous production environments.
Applications
Specifically designed for the woodworking industry, particularly panel furniture production. Ideal for drilling holes in cabinet doors, side panels, and other flat panel components for hardware installation and joints. Suitable for both custom and mass production settings.
Customization
We offer customization for spindle configurations, working area extensions, and integration with existing production lines. Contact our engineering team to tailor the machine to your specific production needs.
FAQ
What is the maximum workpiece size?
The machine can process panels up to 2800mm x 1220mm with a thickness range of 40-50mm (Z-axis height 50mm).
How many drilling tools does it have?
It has 10 vertical top drills, 8 horizontal drills (XY), and 9 vertical bottom drills, totaling 27 spindles, enabling six-side processing without re-positioning.
What is the machine's footprint?
The machine dimensions are 5200mm (L) x 2900mm (W) x 2300mm (H), and it weighs 3500kg.
Does it comply with EU safety standards?
Yes, the machine is CE certified and complies with Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, and standards EN ISO 12100:2010 and EN 60204-1:2018.
What is the minimum processing size?
The minimum workpiece size is 140mm x 40mm, allowing processing of small components as well.
What materials can it process?
It is designed for woodworking, processing panel furniture materials like particleboard, MDF, and solid wood panels.
What is the delivery and payment method?
MOQ is 1 unit, FOB shipping, with pre-shipment testing. Payment terms include TT. Please contact us for specific quotes.
Can you customize the machine?
Yes, we offer customization options such as additional spindles, extended working area, or software features to meet your specific requirements.
Inquiry Information
For pricing, lead time, and further details, please contact:
Email: zywoodmachine@163.com / vanessa293199@139.com
Tel/WhatsApp: +86 15019677504 / +86 13929919431
Website: www.syutech.com
Image Suggestions
- Main image: HK612A front view - file: wechat-image-20231009110724.jpg, alt: Six-side CNC drilling machine HK612A front view
- Detail image: Drilling tool configuration - file: drill-bag.jpg, alt: Drilling tool configuration for HK612A

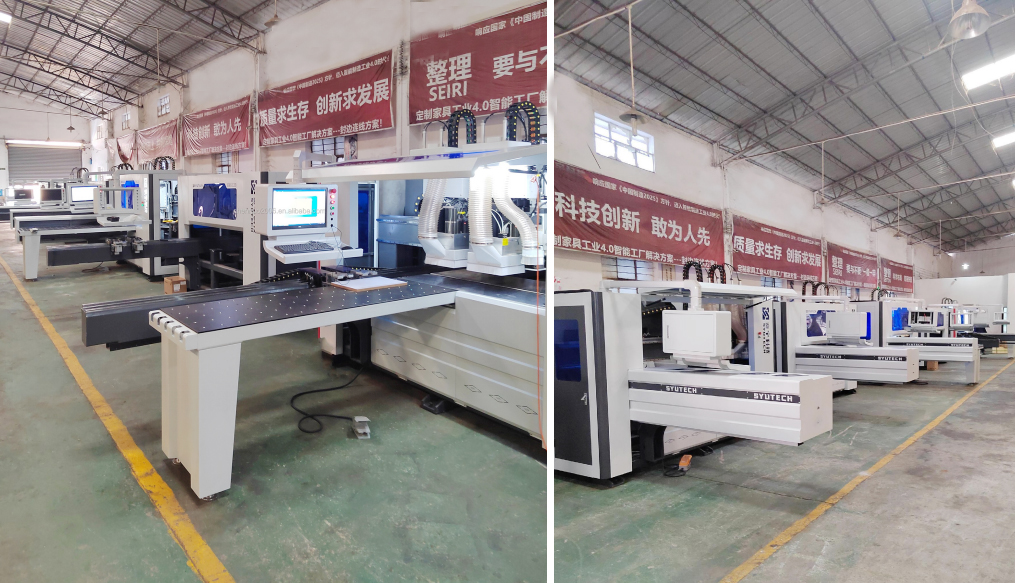

- Workshop image: Machine in production environment - file: untitled-2.jpg, alt: Workshop layout with six-side CNC drilling machine
