Steel Reinforced Aluminum Conductor Bare Overhead Cable for Long Distance Transmission

Quantity:
SKU: 709001990X
Model: AAC/ACSR/ABC/AAAC, etc

{{ variable.name }}

{{ value.name }}

Steel Reinforced Aluminum Conductor (ACSR) Bare Overhead Cable

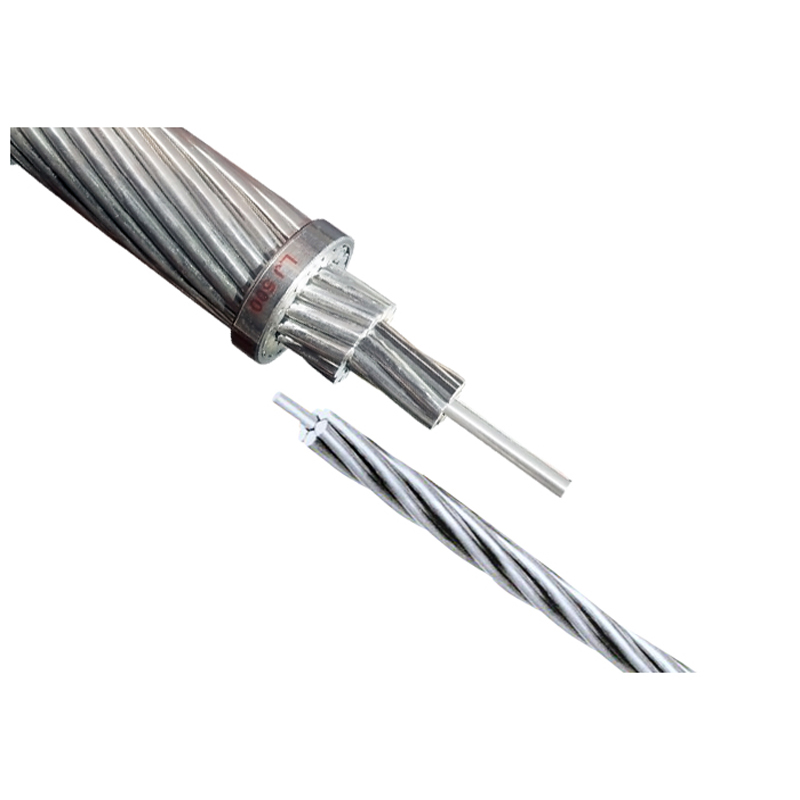

Steel reinforced aluminum conductor ACSR bare cable for high voltage transmission

Our steel reinforced aluminum conductor (ACSR) combines aluminum strands around a steel core, offering high tensile strength and excellent sag characteristics. This makes it ideal for long-distance transmission lines, especially across rivers and valleys where mechanical strength is crucial.

Key Selling Points

  • High strength-to-weight ratio: Steel core provides additional mechanical support without excessive weight.
  • Excellent sag performance: Maintains clearance over long spans, reducing tower height requirements.
  • Wide voltage range: Suitable for HV and UHV lines up to 66kV and above.
  • Customizable stranding: Tailored aluminum/steel ratios to match specific load and environmental conditions.
  • International compliance: Meets IEC 61089:1991 and EN 50525 standards.

Technical Specifications

Conductor TypeACSR (Aluminum Conductor Steel Reinforced)
MaterialAluminum outer strands, steel core
Voltage RangeHV to EHV (66kV and above)
StandardsIEC 61089:1991, EN 50525
MOQ1000m per item

Models and Options

Standard and custom configurations available, including different strand counts and diameters. Engineering support for project-specific designs.

Materials and Structure

Consists of a central galvanized steel wire core surrounded by multiple layers of aluminum wires, concentrically stranded.

Applications

Designed for long-distance high-voltage transmission lines, rural electrification, and crossing large geographical obstacles. Also used in railway catenary systems and interconnecting micro-grids.

Customization

Custom stranding and material grades available. Contact us for detailed specifications for your project.

FAQ

What is the MOQ?

1000m per item.

What delivery terms do you offer?

FOB and CIF.

What is the payment term?

30% T/T deposit, balance before shipment.

Do you provide technical support for line design?

Yes, our engineering team can assist with conductor selection and line design.

Inquiry Information

Contact zhaomeilia@shenghuacablegroup.com for quotes and technical consultation.
