| Type | HTR Series: Double-Acting Standard-Duty Tie-Rod Hydraulic Cylinder with Adjustable Clevis HTH Series: Double-Acting Heavy-Duty Tie-Rod Hydraulic Cylinder with Adjustable Clevis ASAE Tie-Rod Hydraulic Cylinder for Agricultural Equipment North American Stan | Model | HTR Series HTH Series |
| Params | Acting Type: Double Acting Cylinder Construction: Tie-Rod Construction HTR Rated Working Pressure: 2,500 PSI HTH Rated Working Pressure: 3,000 PSI Bore Diameter Range: 2–5 in HTR Stroke Range: 4–36 in HTH Stroke Range: 4–48 in Rod Diameter Range: 1.125–2 in Mounting Configuration: Adjustable Threaded Female Clevis Port Configuration: SAE O-Ring Boss Ports Port Arrangement: Two Ports Positioned at 90 Degrees Rod Surface: Hard Chrome Plated Chrome Plating Thickness: Approximately 0.001 in Final Rod Surface Hardness: Approximately 69–71 HRC HTH Rod Core Hardness: Approximately 45–50 HRC Standard Paint Color: Black Operating Medium: Mineral-Based Hydraulic Oil Customization: Bore, Stroke, Rod Diameter, Ports, Mounting and Paint Available by Agreement | Material | Cylinder Tube: Precision-Honed Steel Tube Piston Rod: Hard Chrome-Plated Steel HTH Piston Rod: Induction-Hardened and Hard Chrome-Plated Steel Piston: Ductile Iron Tie Rods: High-Tensile Steel Cylinder Head and End Cap: High-Strength Steel or Ductile Iron Adjustable Clevis: Ductile Iron Mounting Pin: Zinc-Plated Steel Seals: Application-Specific Polyurethane and NBR Hydraulic Seals Surface Finish: Corrosion-Resistant Industrial Paint |
| Applicable Industry | Agricultural Machinery Tractors and Farm Implements Material Handling Equipment Industrial Machinery Manufacturing Equipment Construction Equipment Snow Removal Equipment Utility and Municipal Equipment Mobile Hydraulic Equipment Hydraulic Automation Systems Replacement and Maintenance Market | 型号核对要求 | Model numbers are used for cross-reference and dimensional identification. Final compatibility must be confirmed through the original part number, dimensional drawing, port specification, mounting dimensions and equipment application before production. |
North American standard HTR and HTH cross-reference configurations are available for agricultural, industrial and mobile hydraulic equipment. The tie-rod construction allows convenient disassembly, seal replacement and maintenance, while the adjustable threaded clevis simplifies installation and dimensional adjustment. Precision-honed tubes, hard chrome-plated piston rods, high-tensile tie rods and application-specific sealing systems provide stable pressure performance and reliable service life. Apex Hydraulic can manufacture replacement and OEM tie-rod cylinders according to verified model numbers, approved drawings, mounting dimensions or customer samples.

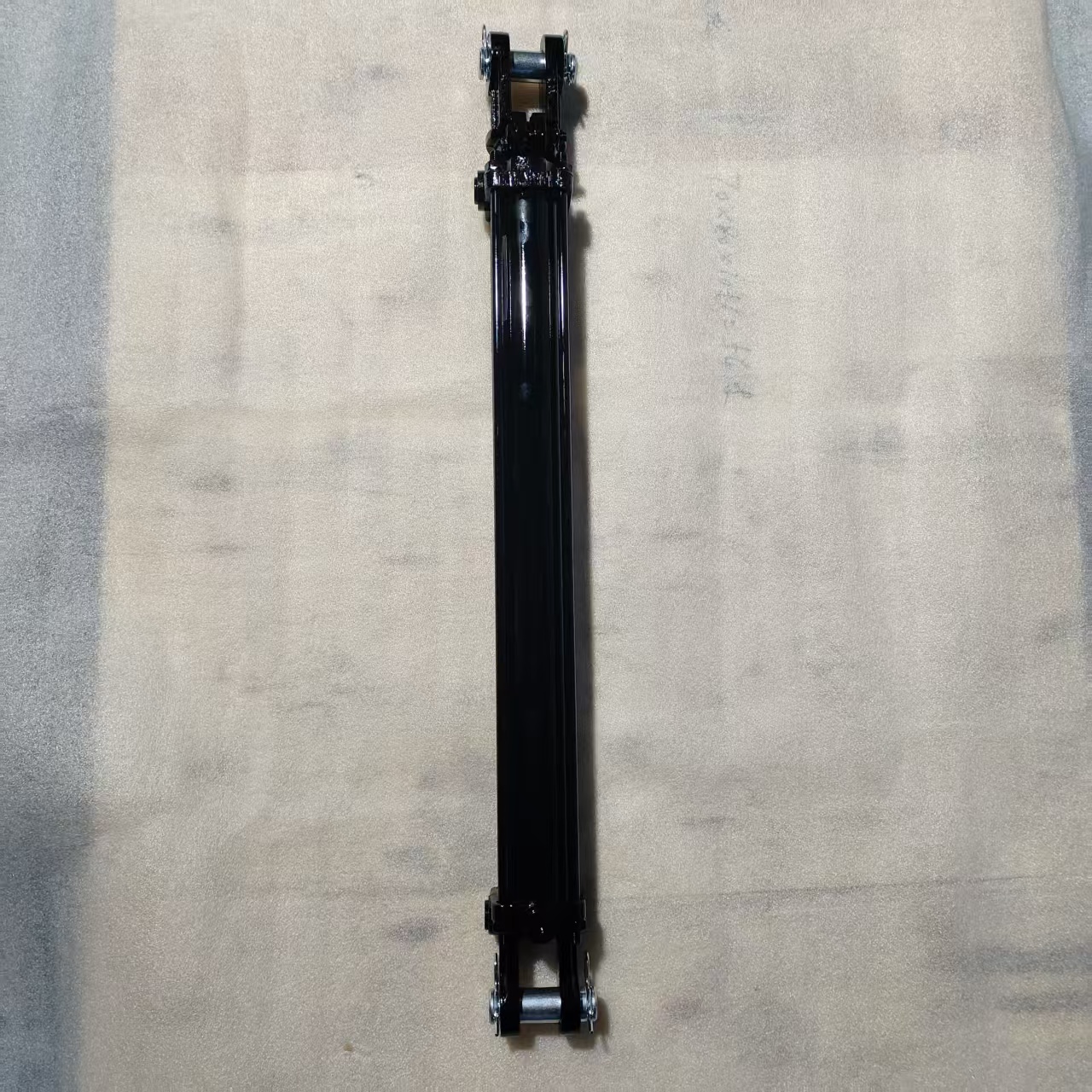

tie-rod-cylinder-batch-production

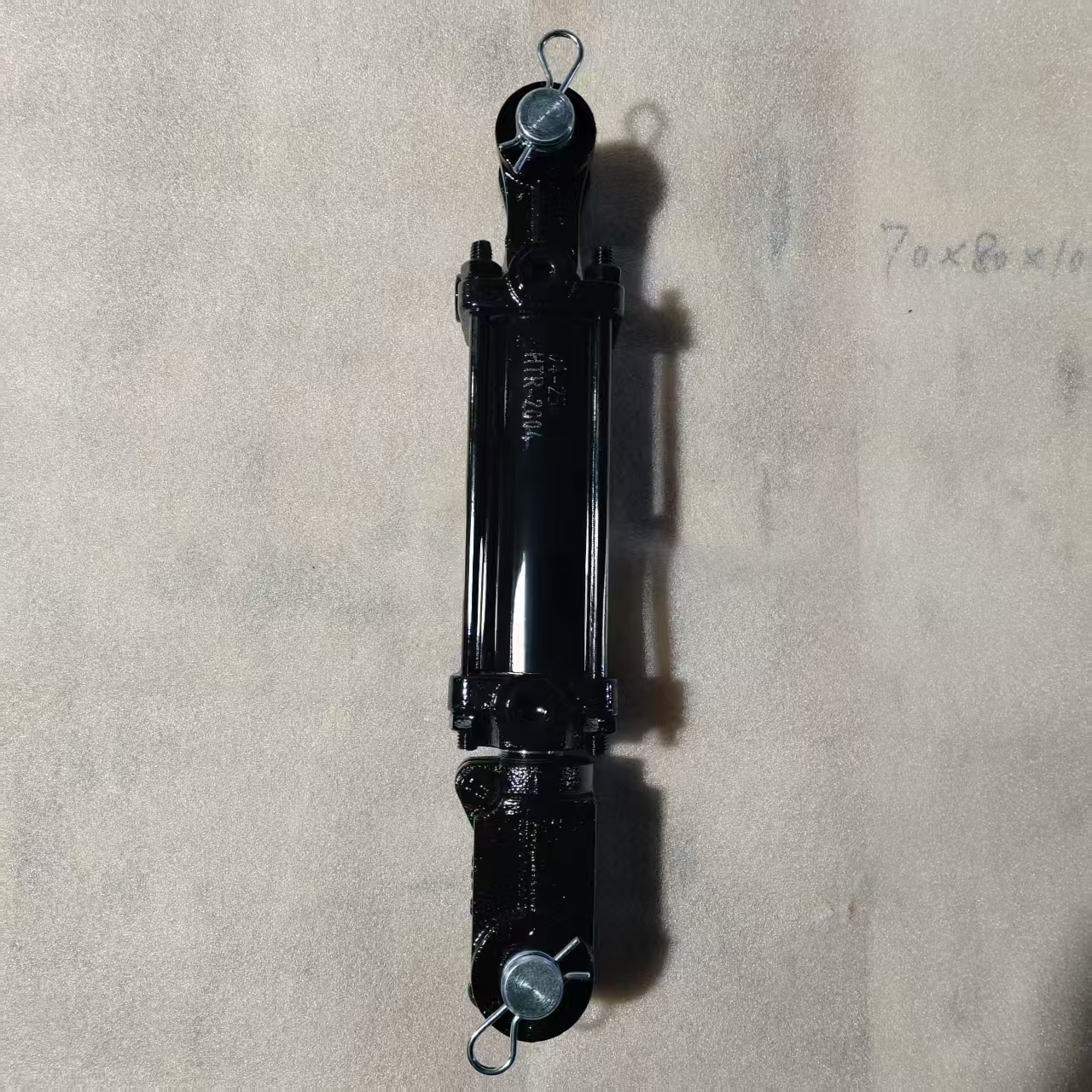

tie-rod-hydraulic-cylinder-orb-port-detail

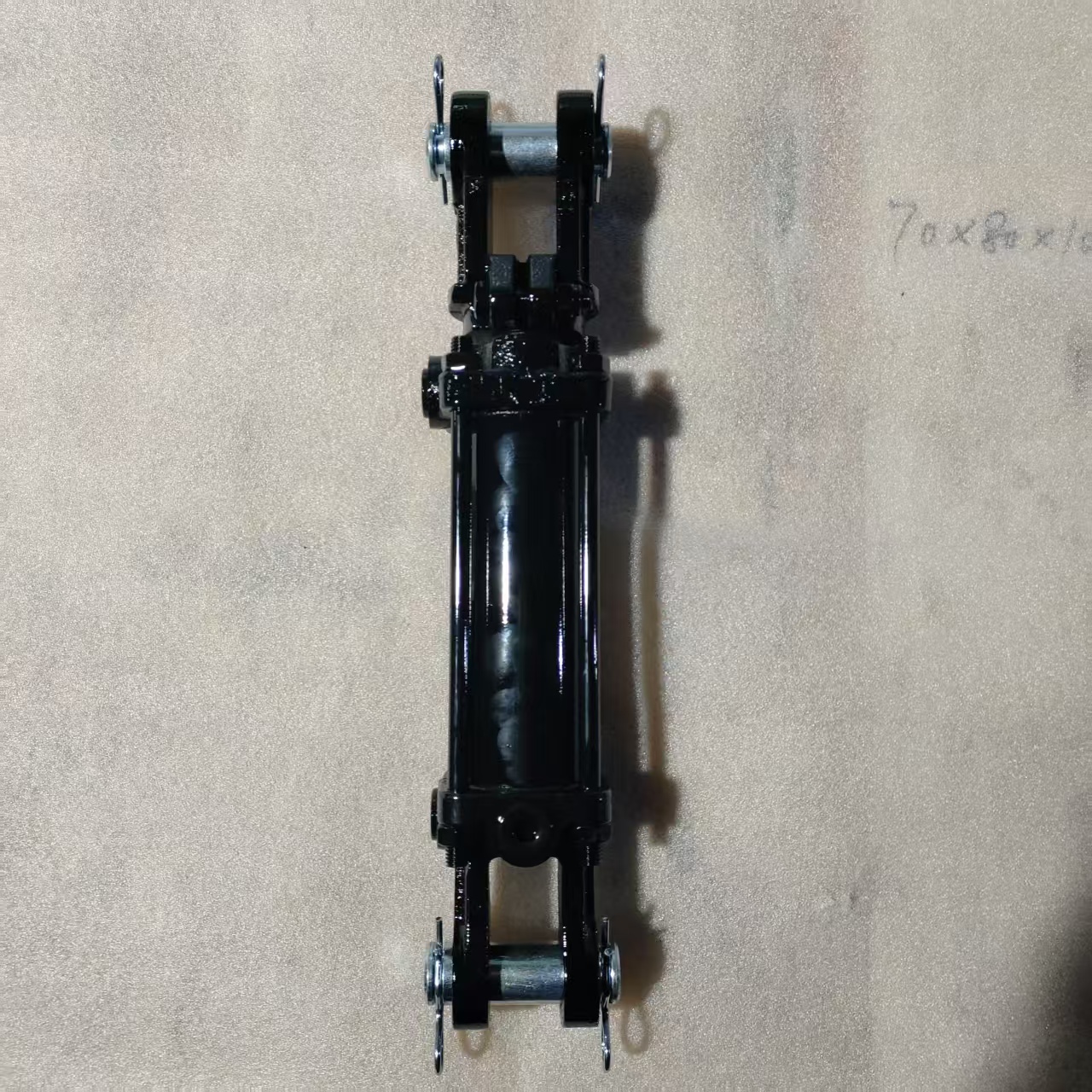

tie-rod-cylinder-adjustable-clevis-detail

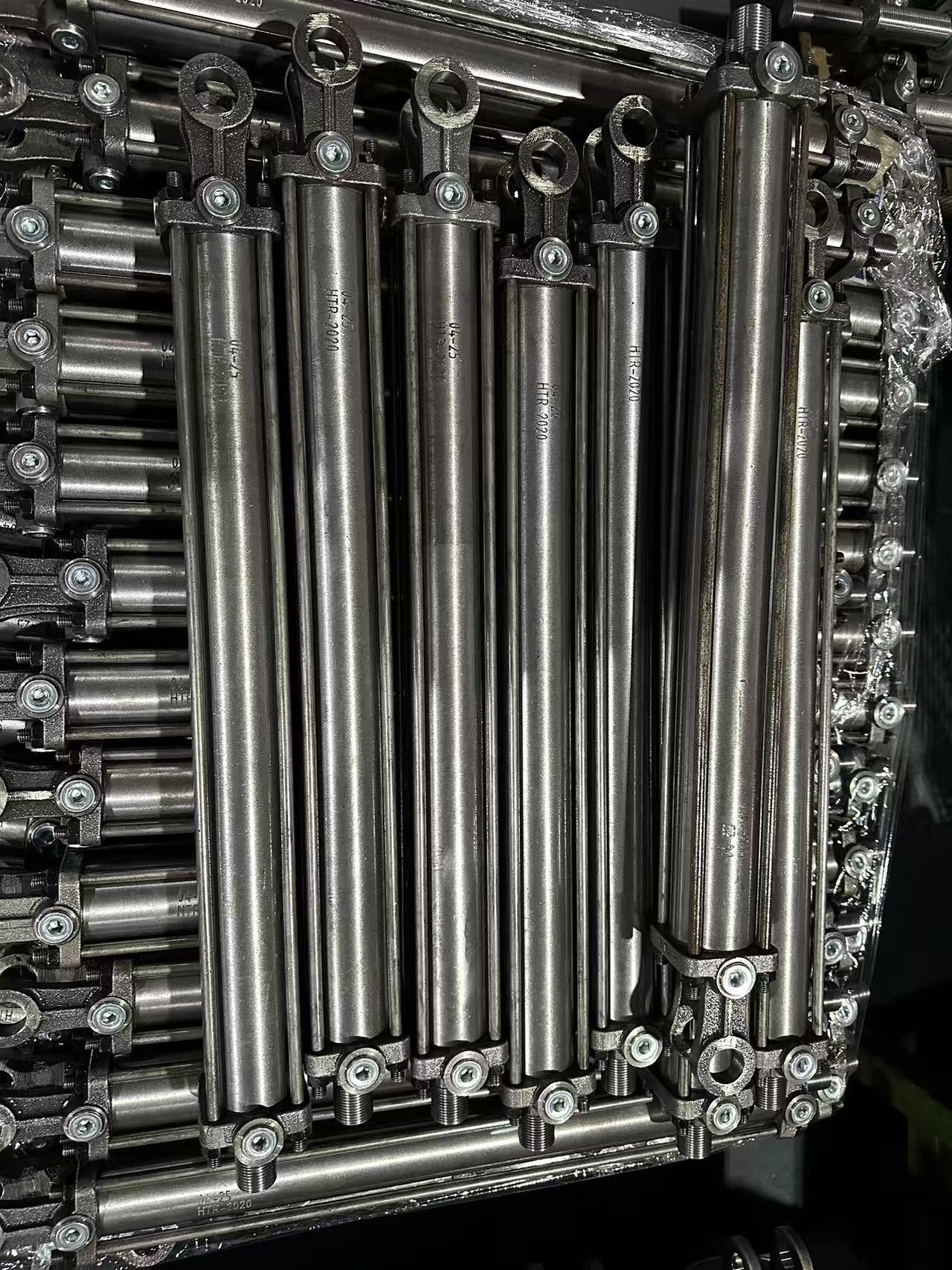

tie-rod-hydraulic-cylinder-pressure-testing

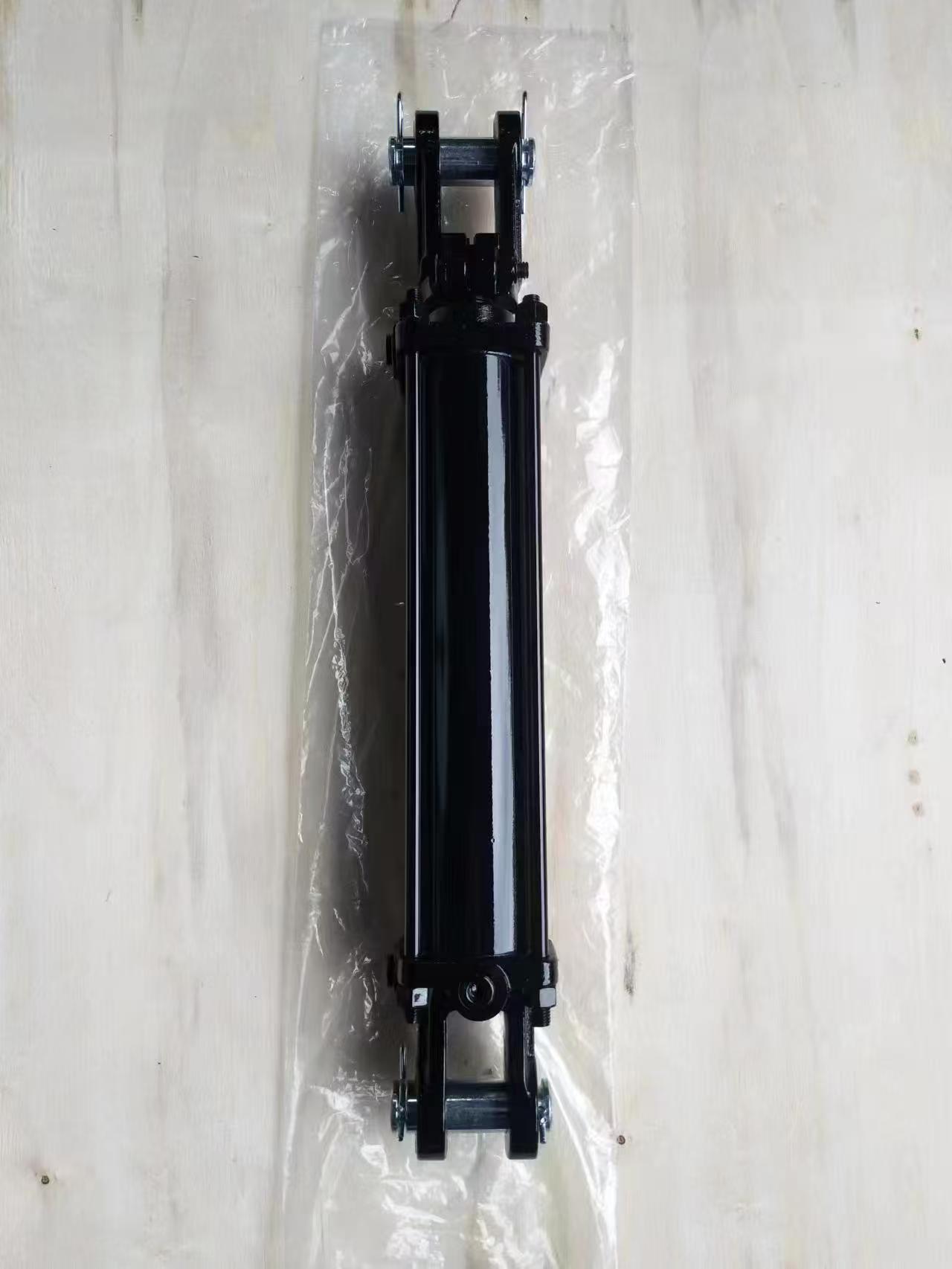

htr-2500-psi-tie-rod-hydraulic-cylinder

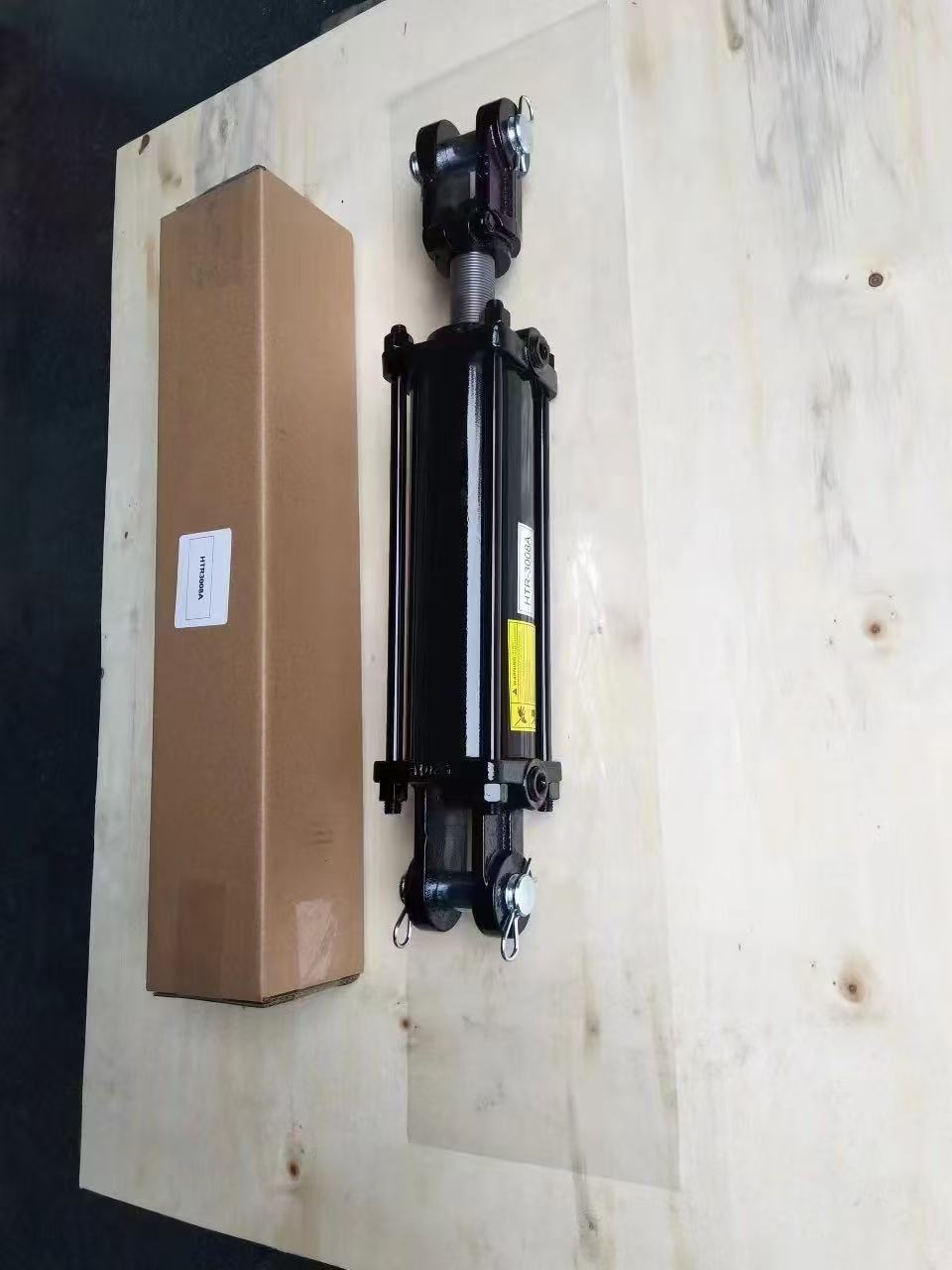

apex-standard-tie-rod-hydraulic-cylinder-series
