The essential component for modern security shutters, blending military-grade protection with uncompromised visibility.
Core Product Definition

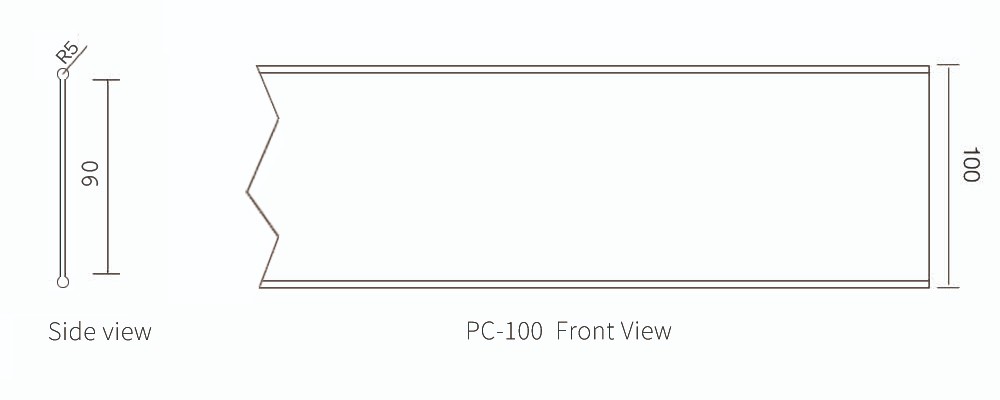

The PC100 Transparent Rolling Door Slat serves as the foundational element of clear-view polycarbonate shutters and sliding folding doors. Engineered from 100% virgin polycarbonate (PC) resin, it interlocks seamlessly with extruded aluminum connectors and auxiliary hardware to form a complete security curtain. This system delivers unmatched durability alongside high transparency—ensuring robust protection without obstructing visibility
| Model No. | Size | Weight (kg) | Center Thickness (mm) | Side Thickness (mm) |
|---|---|---|---|---|
| PC-50 | 50mm × 98m | 11 | 1.2–2.0 | 4.5 |
| PC-60 | 60mm × 98m | 13 | 1.2–2.0 | 4.5 |
| PC-70 | 70mm × 98m | 15 | 1.2–2.0 | 4.5 |
| PC-80 | 80mm × 98m | 17 | 1.2–2.0 | 4.5 |
| PC-100 | 100mm × 98m | 20 | 1.2–2.0 | 4.5 |
| PC-120 | 120mm × 98m | 24 | 1.2–1.4 | 4.5 |
| PC-150 | 150mm × 98m | 30 | 1.2–1.4 | 5.2 |
| PC-180 | 180mm × 98m | 35 | 2.0 | 5.2 |

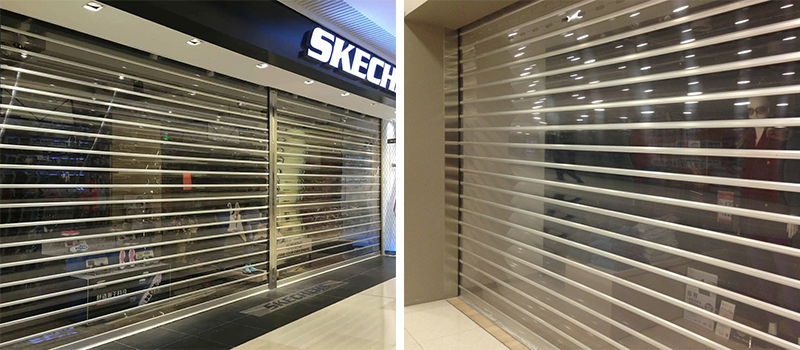

○ Retail: Theft-resistant showcases for chain stores; nighttime product visibility for luxury boutiques
○ Finance: Transparent barriers for bank teller windows during closures
○ Hospitality: Weatherproof enclosures with panoramic views for restaurant patios
○ Residential: Elegant window replacements for high-end homes.
✅ See-Through Security: 80–90% light transmission (adjustable via slat thickness) enables 24/7 storefront visibility—turning shutters into advertising displays after hours.
✅ Unbreakable Design: 200× stronger impact resistance than glass and 30× tougher than acrylic, defeating forced entry.
✅ Anti-UV Protection: Co-extruded UV layer prevents yellowing and degradation for 20+ years outdoors.
✅ Extreme Weather Endurance: Performs flawlessly from -40°C to 120°C (-40°F to 248°F).
✅ Energy Efficiency: 4× better thermal insulation and 10× superior heat retention vs. glass—slashing HVAC costs.
✅ Noise Reduction: 3–4dB sound insulation (outperforming glass) for quieter interiors in high-traffic zones.
✅ Featherlight Weight: At just 5 kg/m² (1/3 the weight of steel), it minimizes strain on motors and tracks.
✅ Eco-Certified: ROHS-compliant, recyclable materials reduce environmental footprint.
○ Elite Sourcing: PC resin from LOTTE and Sabic—ensuring optical clarity and structural integrity
○ Tailored Solutions: Custom transparency (clear/frosted/colored), fire ratings (HB/V2 flame retardancy), and branded engraving

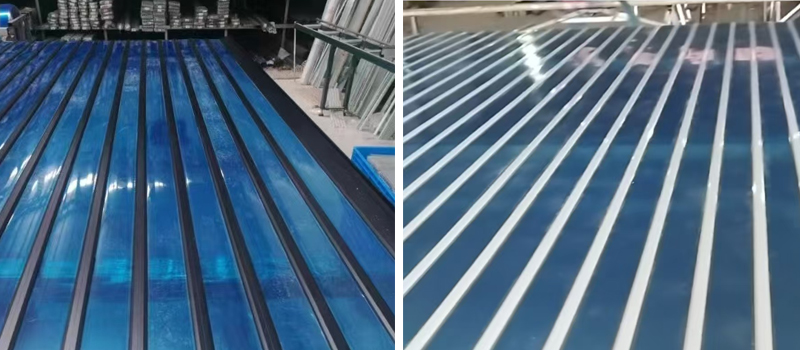

○ High-Volume Production: 5,000 meters/day via automated injection molding—urgent orders accommodated with 7-day notice
○ Global-Ready Packaging: Anti-scratch bags or palletized cartons for damage-free shipping
○ 5-Year Warranty: Free replacement for defects under normal use
