Ultra-Thin DA Series Cam Indexer for High Precision Filling Machinery

Name: "Ultra-Thin DA Series Cam Indexer for High Precision Filling Machinery"
Rating: 5 (134 reviews)

Quantity:

SKU: 9568496629

Model: 70DA/90DA/110DA/150DA/190DA/230DA/330DA/450DA

HONEPAN

Enter Shop

Product Details

Ultra-Thin Table Output (DA) Cam Indexer

High Precision Indexing for Filling and Packaging Applications

Product Summary

This DA series cam indexer features an ultra-thin table output design, ideal for automatic filling machines, packaging equipment, and pharmaceutical machinery. With 4 to 196 stations and indexing angles of 180-270 degrees, it ensures precise positioning and repeatable accuracy of ±10 arcsec, supporting high-speed, continuous operation in demanding industrial environments.

Key Selling Points

High Indexing Accuracy: Positioning accuracy of ±30 arcsec (standard) and ±15 arcsec (precision), ensuring product quality in filling and inspection applications.
Versatile Station Configurations: 4 to 196 stations available, accommodating various production line layouts and indexing requirements.
Robust Material Construction: Made from Carbon Steel, 42CrMo/SCM440/4140/4142, and other alloys for durability and long service life.
Ultra-Thin Design: Compact table output saves space and integrates seamlessly into modern automation systems.
Wide Application Range: Ideal for liquid, paste, powder filling machines, beverage fillers, and pharmaceutical liquid fillers.

Technical Specifications

Number of Stations	4 - 196
Indexing Angle	180 - 270 degrees
Positioning Accuracy	±30 arcsec (standard) / ±15 arcsec (precision)
Repeat Positioning Accuracy	±10 arcsec (standard) / ±5 arcsec (precision)
Material	Carbon Steel, 42CrMo/SCM440/4140/4142, 40Cr/SCR440/5140, 20CrMnTi/SNCM220/8620, 18CrMoV

Models and Options

Available models include 70DA, 90DA, 110DA, 150DA, 190DA, 230DA, 330DA, and 450DA, each offering different torque and size options to match specific application requirements.

Materials and Structure

The cam indexer is crafted from high-strength alloys such as 42CrMo/SCM440/4140/4142 and carbon steel, ensuring robustness and wear resistance. The structure features a roller gear cam mechanism for smooth and precise indexing, with a preloaded cam system to minimize backlash.

Applications

Specifically designed for liquid filling machines, paste filling machines, powder filling machines, granule filling machines, sauce fillers, beverage fillers, edible oil filling machines, bottled water production lines, and high-speed filling lines. Also suitable for pharmaceutical liquid fillers, cosmetic tube filling machines, disinfectant filling equipment, and filling and capping machines.

FAQ

1. What is the minimum order quantity?

The MOQ is 1 unit.

2. What is the delivery method?

We support FOB, CIF, and DAP delivery methods.

3. What payment methods are accepted?

We accept 100% T/T payment.

4. Can you customize the indexer for specific applications?

Yes, we offer customization based on your specific requirements such as special materials, dimensions, or configurations.

5. How is the product quality assured?

We have ISO9001 quality management system certification and hold multiple invention patents. Each product undergoes strict quality control processes.

6. What is the typical lead time?

Lead time varies depending on the model and order quantity. Please contact us for specific details.

7. Do you provide technical support?

Yes, our engineering team provides full technical support from selection to installation.

8. Is the indexer suitable for high-speed filling lines?

Yes, it is designed for high-speed and continuous operation, suitable for high-speed filling lines.

Inquiry Information

Product Gallery

Ultra-thin Table Output (DA) Cam Indexer - Front View

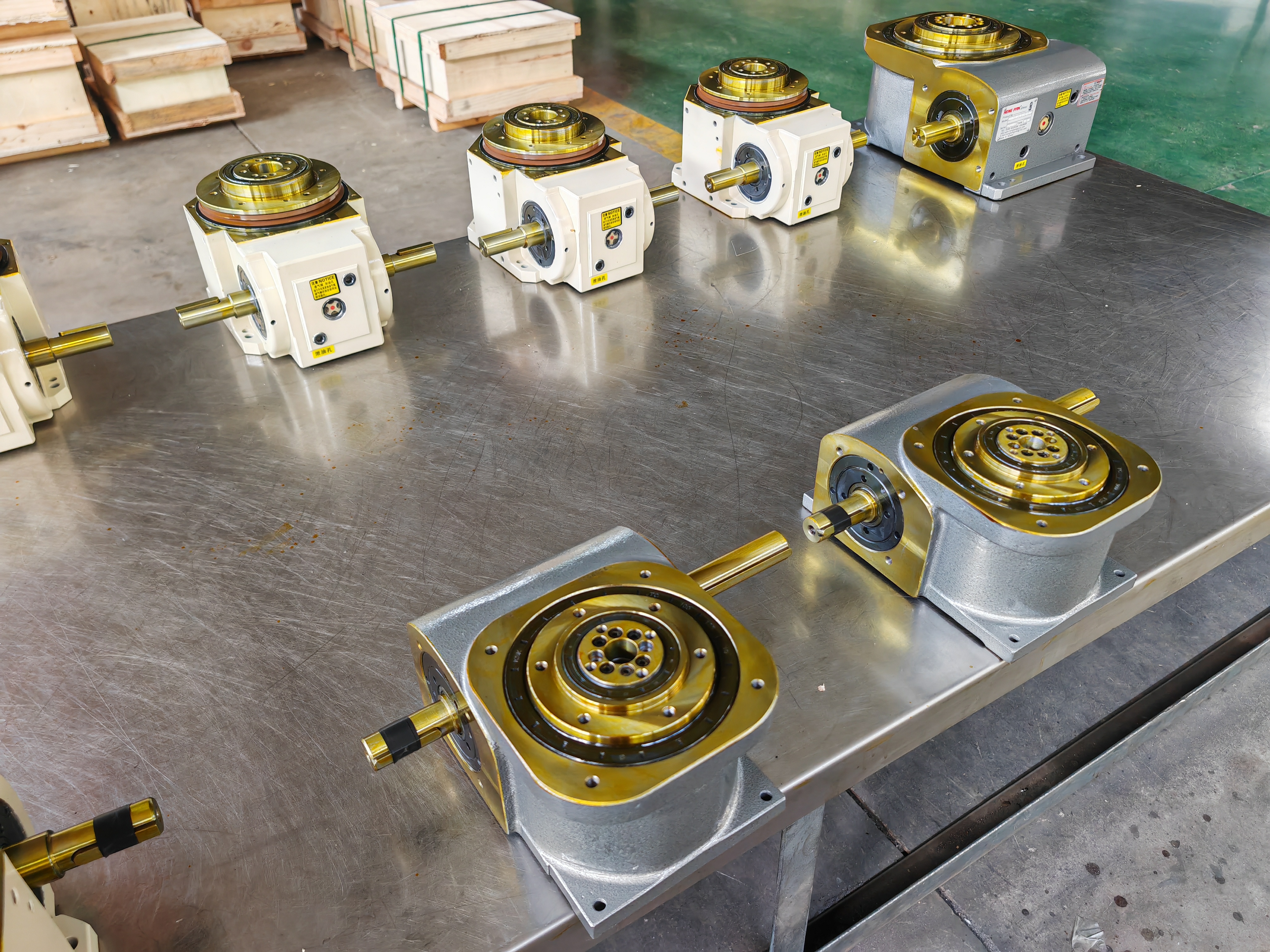

Ultra-thin Table Output (DA) Cam Indexer - Side View

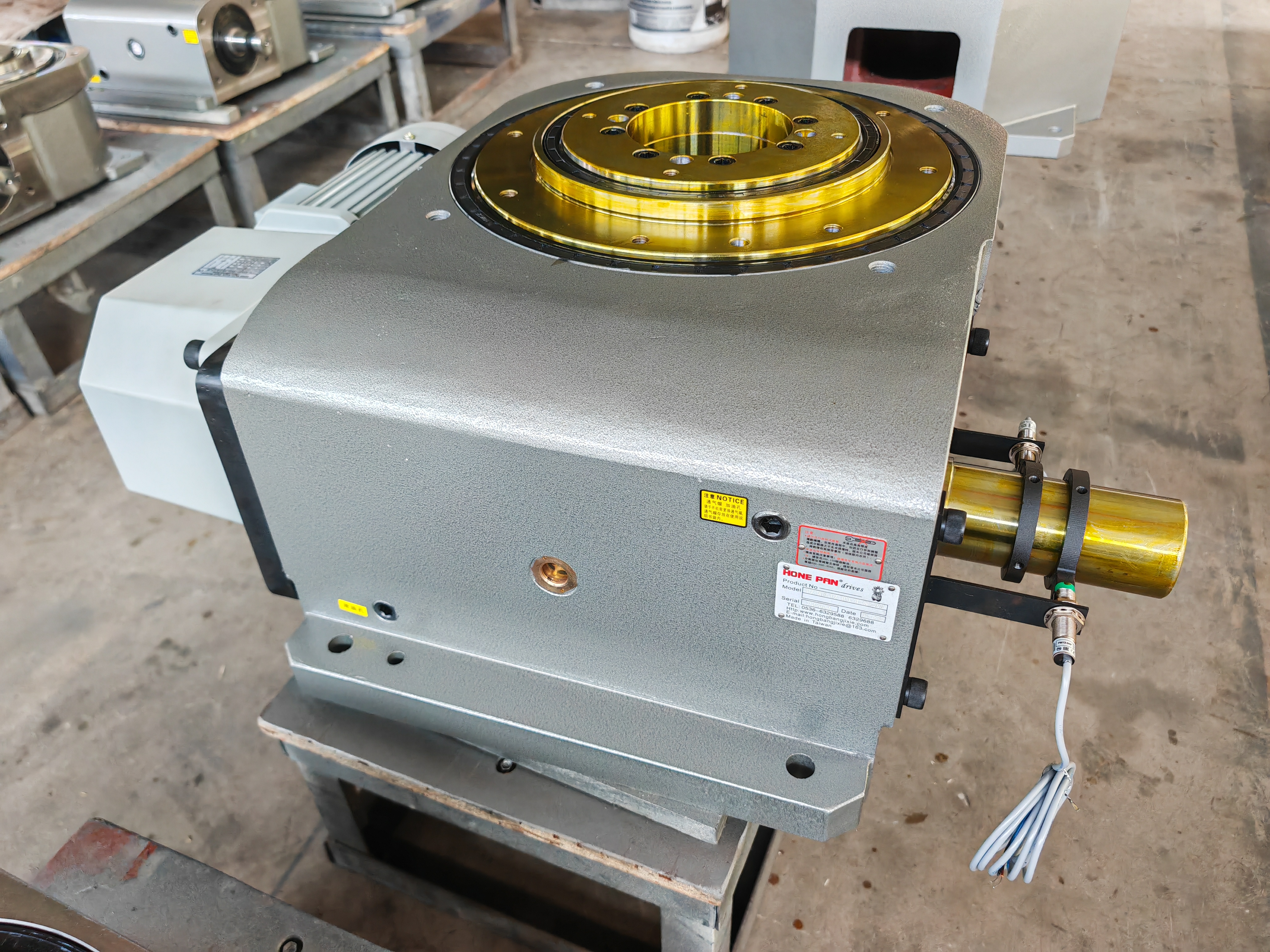

Ultra-thin Table Output (DA) Cam Indexer - Rear View

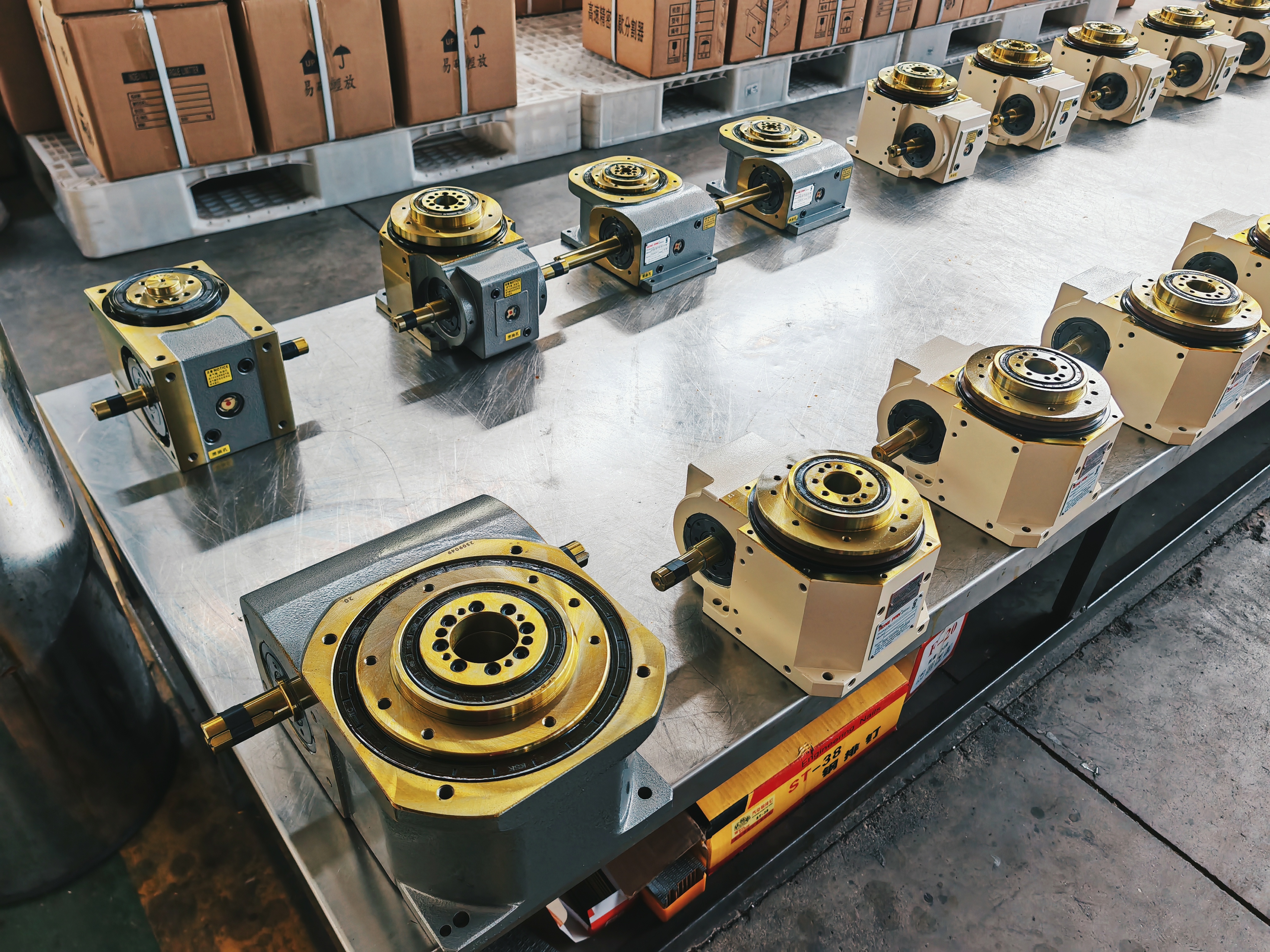

Ultra-thin Table Output (DA) Cam Indexer - Mechanism Detail

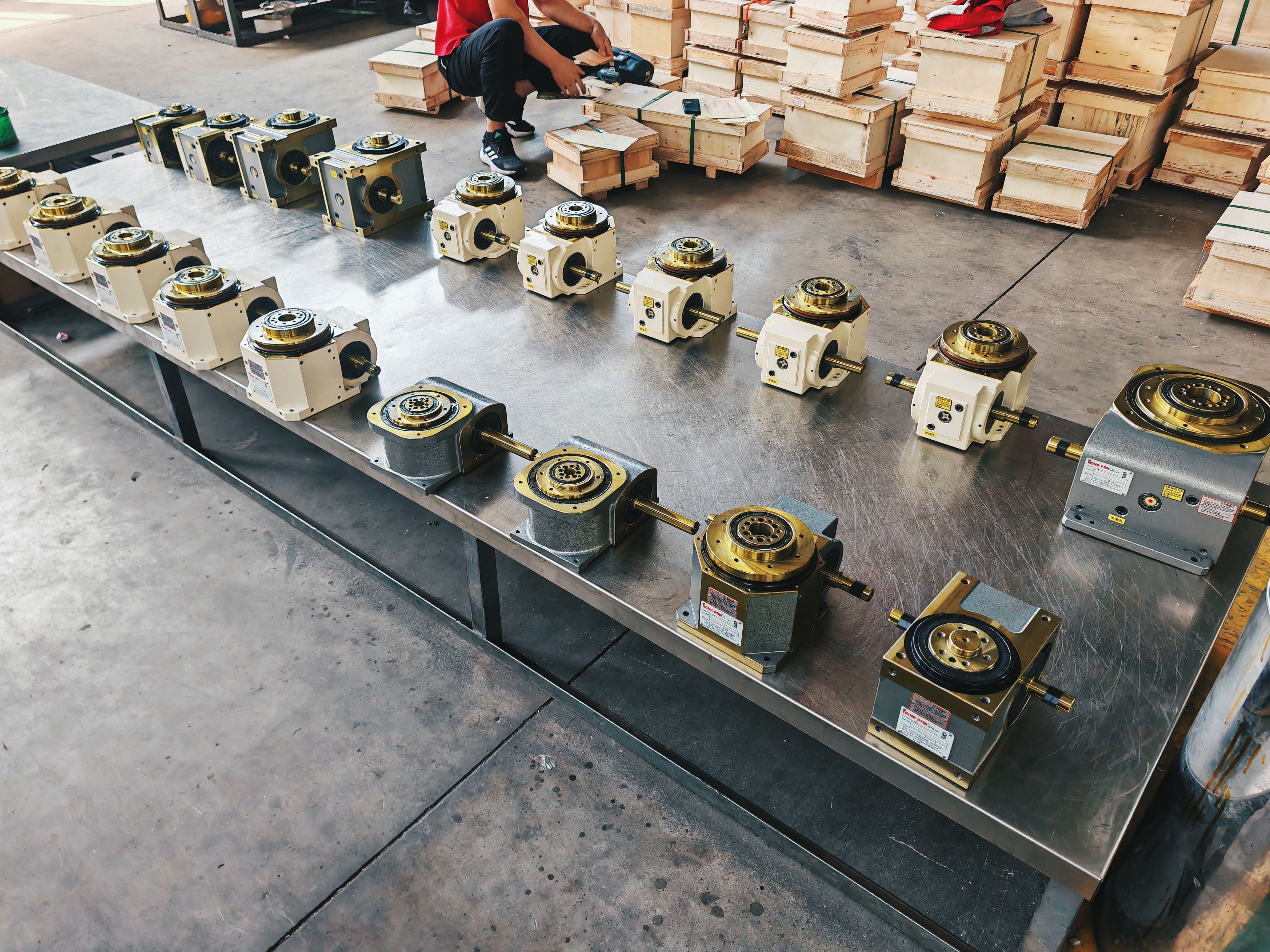

Ultra-thin Table Output (DA) Cam Indexer - Application in Filling Machine
