Underwater ROV

Name: "Underwater ROV"
Rating: 5 (658 reviews)

SKU: 6904098988

Model: CHASING X

CHASING Underwater Robot

Enter Shop

Product Details

Product Specification

Type	Industrial-grade underwater ROV	Model	CHASING X
Params	Size: 819659404mm Max Depth: 350 meters (1148 ft) Max Speed: Forward 4.5 knots, Lateral 2 knots Max Flow Resistance: 4.5 knots Runtime: Up to 2H, normal operation Battery: 1000Wh Power Supply: Battery/C-SPSS (Optional) Operating Environment: Underwater Operating Temperature: -10℃~50℃ CMOS (Main Camera): 1/1.8" Lens (Main Camera): F2.2 Focusing Distance (Main Camera): 1m to ∞ FOV (Main Camera): 160° Max Resolution (Main Camera): 8 Meg Pixel Format (Main Camera): JPEG/DNG Video (Main Camera): UHD: 38402160, 4K/30 FPS; FHD: 19201080 (1080P), 30/60/120 FPS Slow Motion: 720P: 6 x (180FPS); 1080P: 4 x (120FPS) Time Lapse: 4K/1080P supported VIDEO STREAM (Main Camera): 60M VIDEO FORMAT (Main Camera): MP4 SD Card (Main Camera): Standard 128G, support up to 1T (Removable) CMOS (Panoramic Camera): 1/1.8" Lens (Panoramic Camera): F2.0 Focusing Distance (Panoramic Camera): 1m to ∞ FOV (Panoramic Camera): 220° Max Resolution (Panoramic Camera): 8 Meg Pixel Format (Panoramic Camera): Panoramic JPEG VIDEO STREAM (Panoramic Camera): 60Mbps VIDEO FORMAT (Panoramic Camera): Panoramic MP4 Video (Panoramic Camera): UHD:3840*1920, 4K/25 FPS SD Card (Panoramic Camera): Standard 128G, support up to 1T (Removable) Max Depth: 350 meters (1148 ft) Waterproof Rate: ＞IP68 IMU: axis gyro/accelerometer/compass Depth Sensor: Accuracy＜±0.25m Temperature Sensor: Accuracy＜±2℃ Brightness: 2 x 6000lm Dimming: Stepless (brightness adjustable via App)	Applicable Industry	Emergency Rescue, Water Conservancy & Hydropower, Hull & Dock, Aquaculture, Pipeline, Offshore Wind Power, Offshore Drilling Platform, Underwater Archaeology, Scientific Research & Environmental Protection

Feature

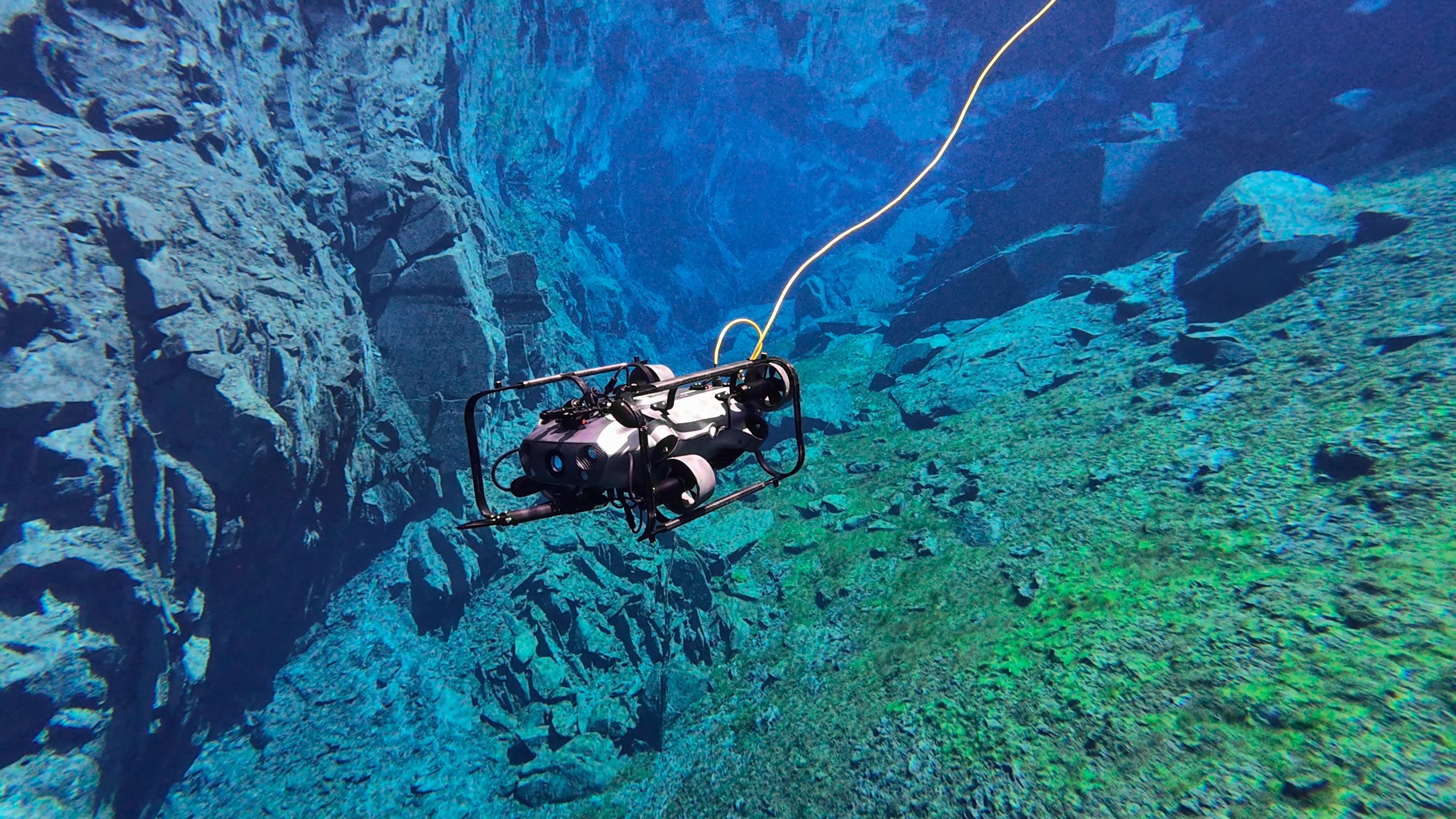

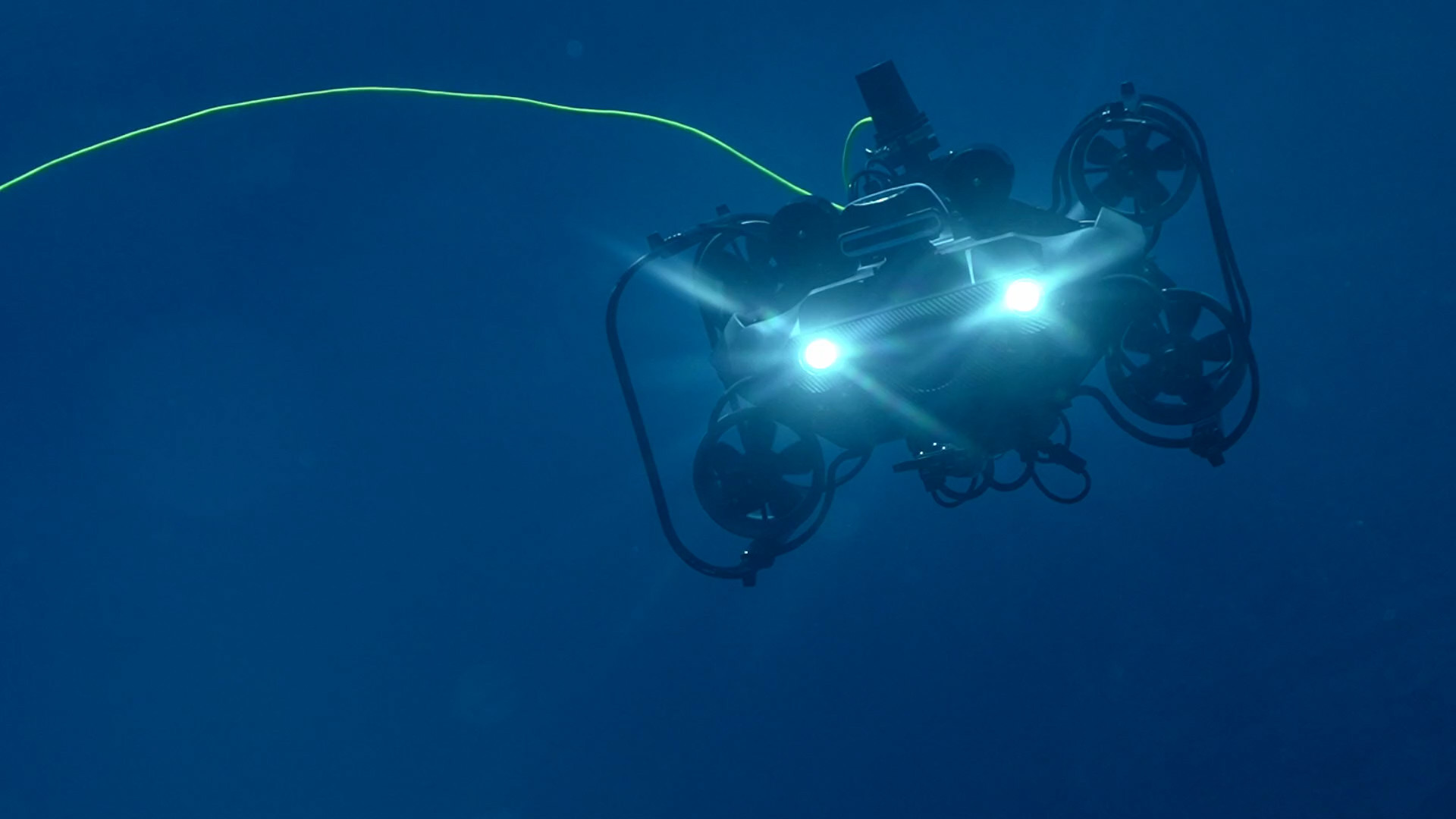

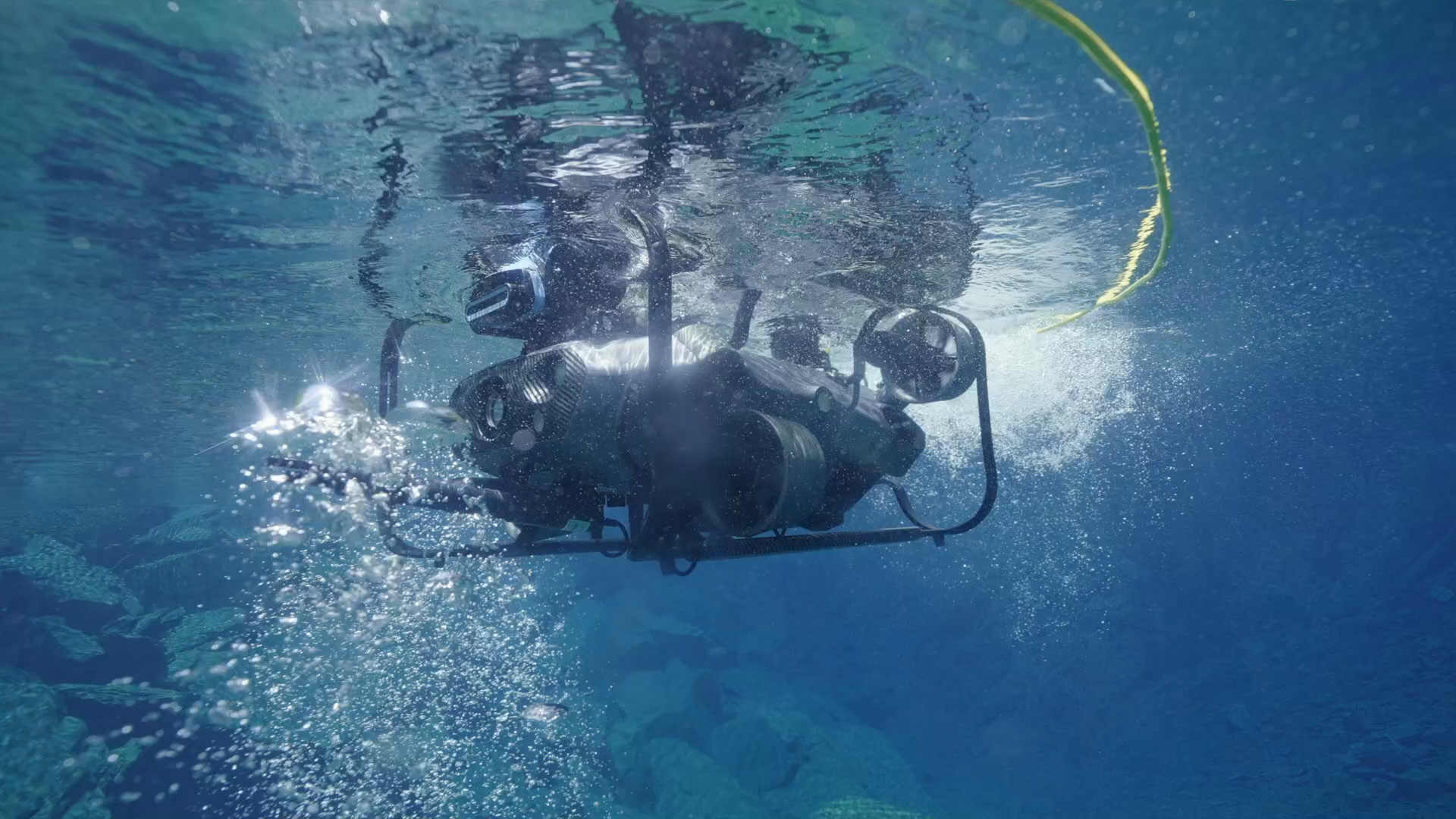

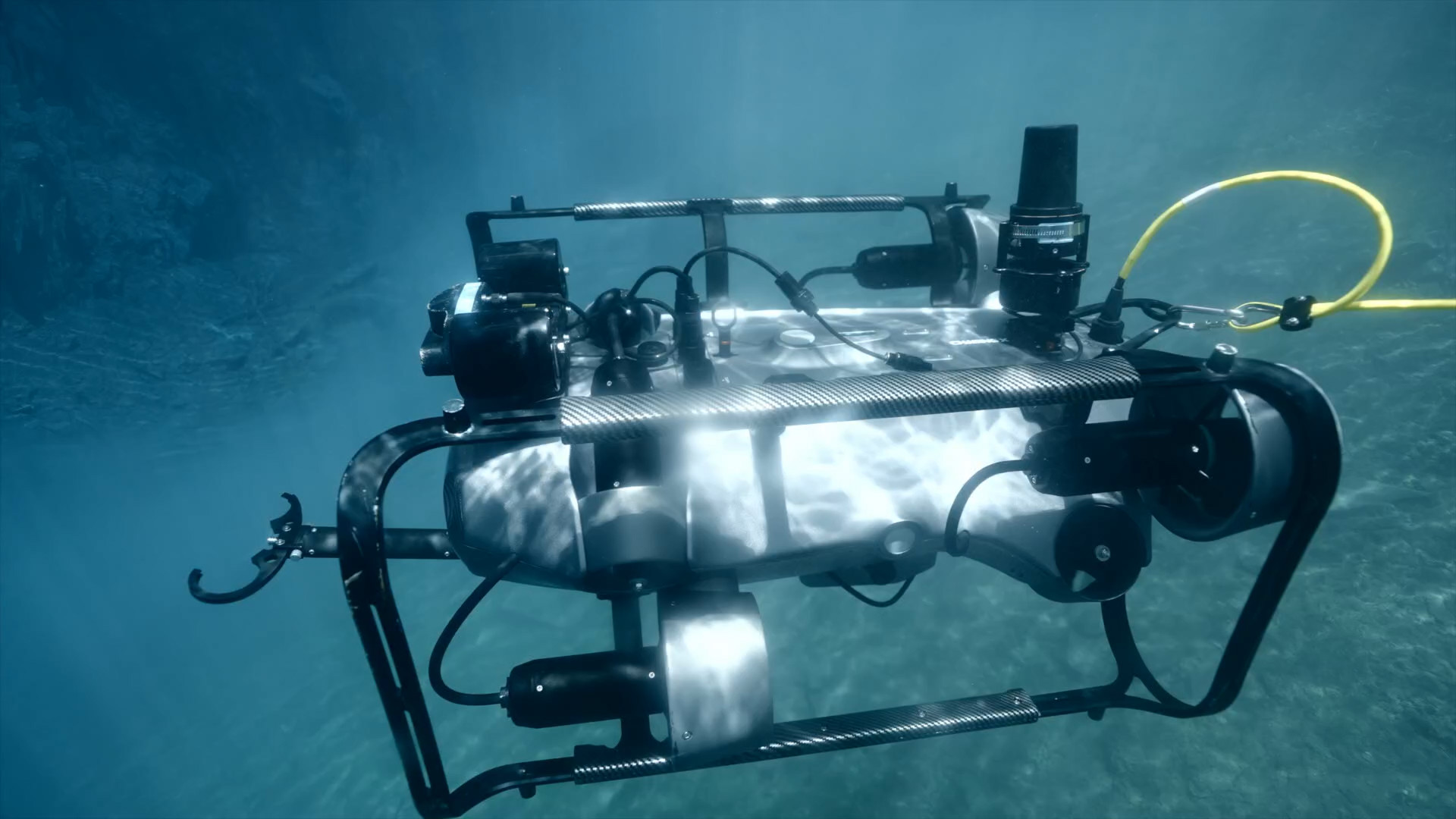

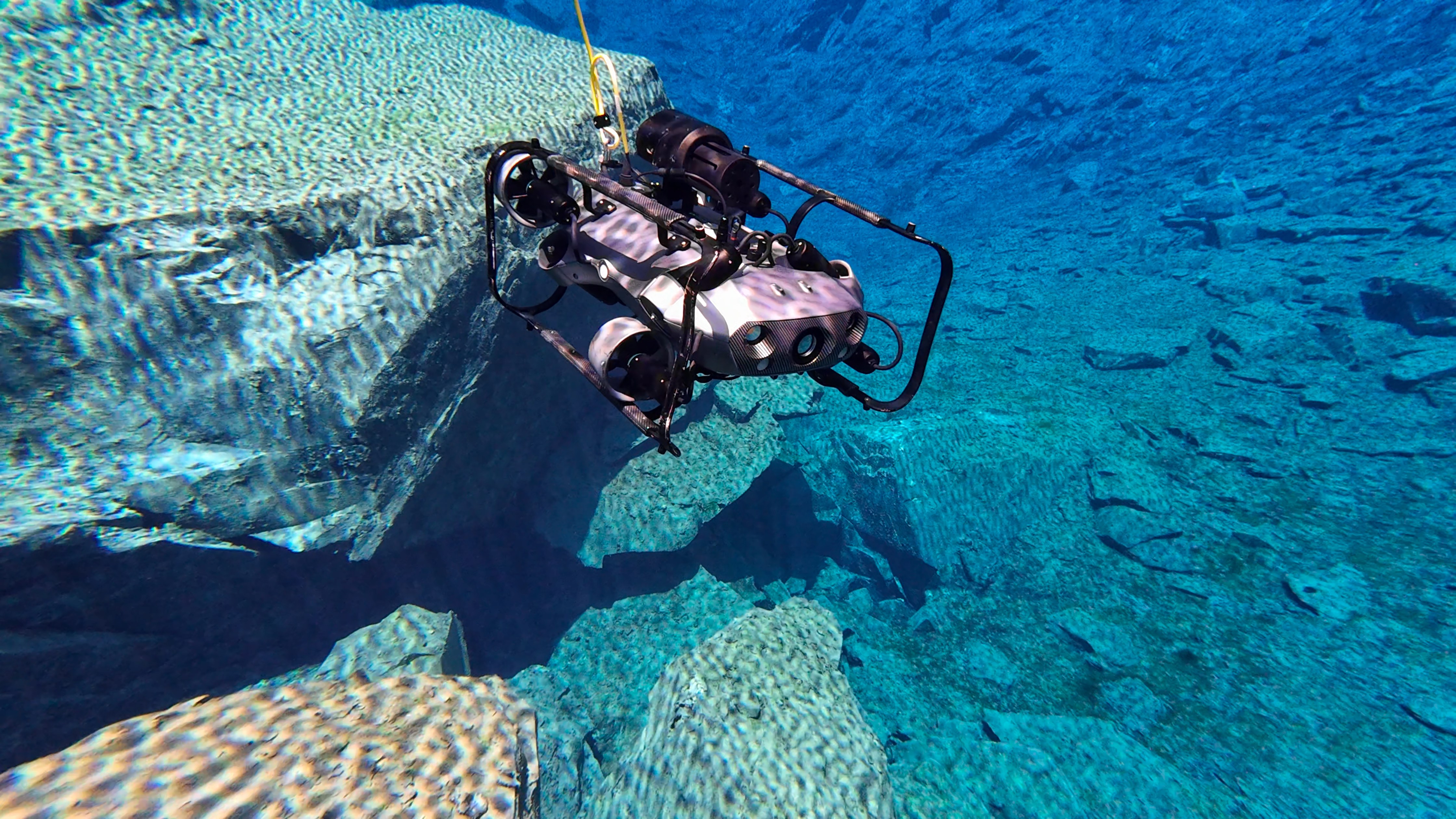

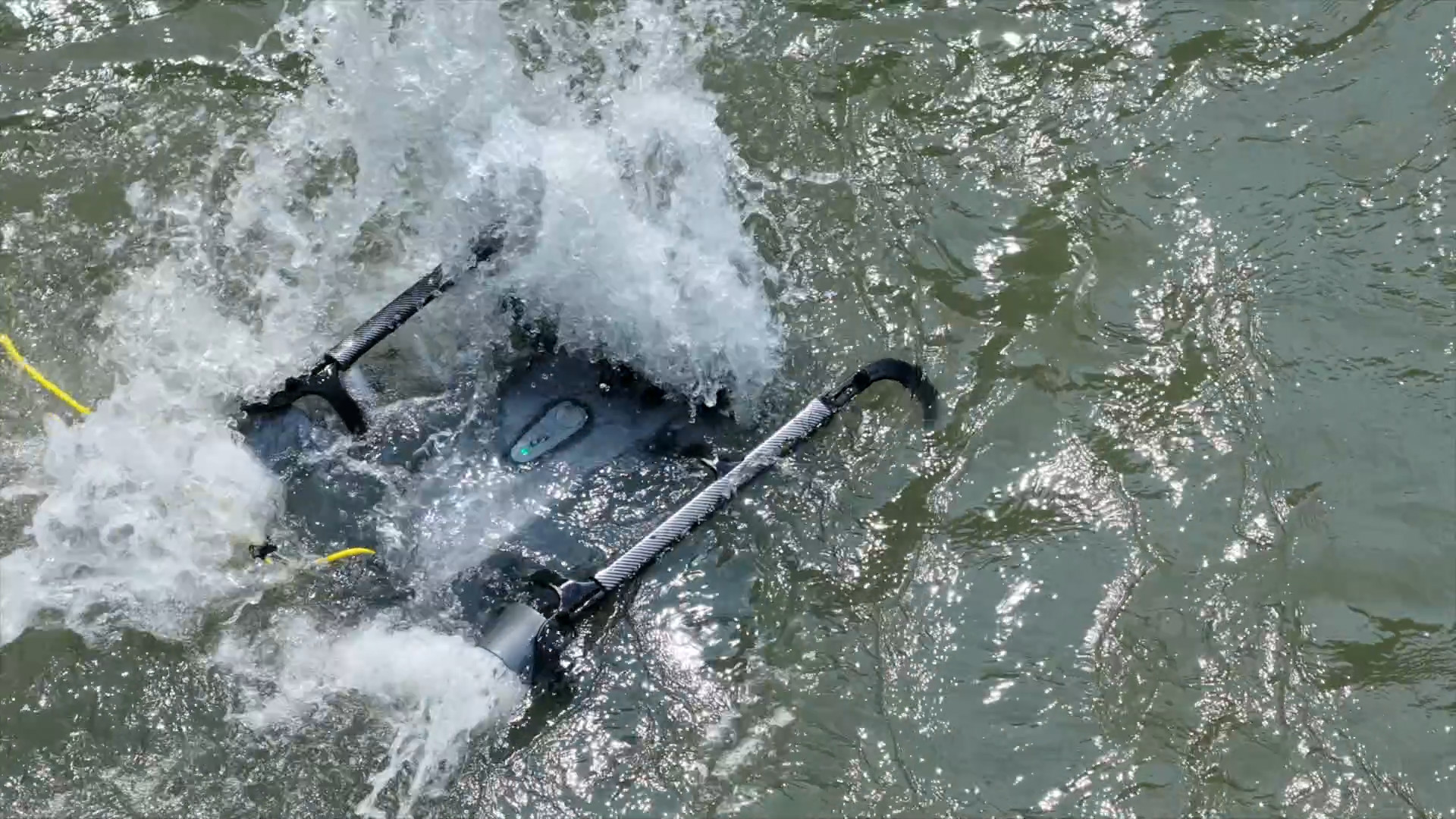

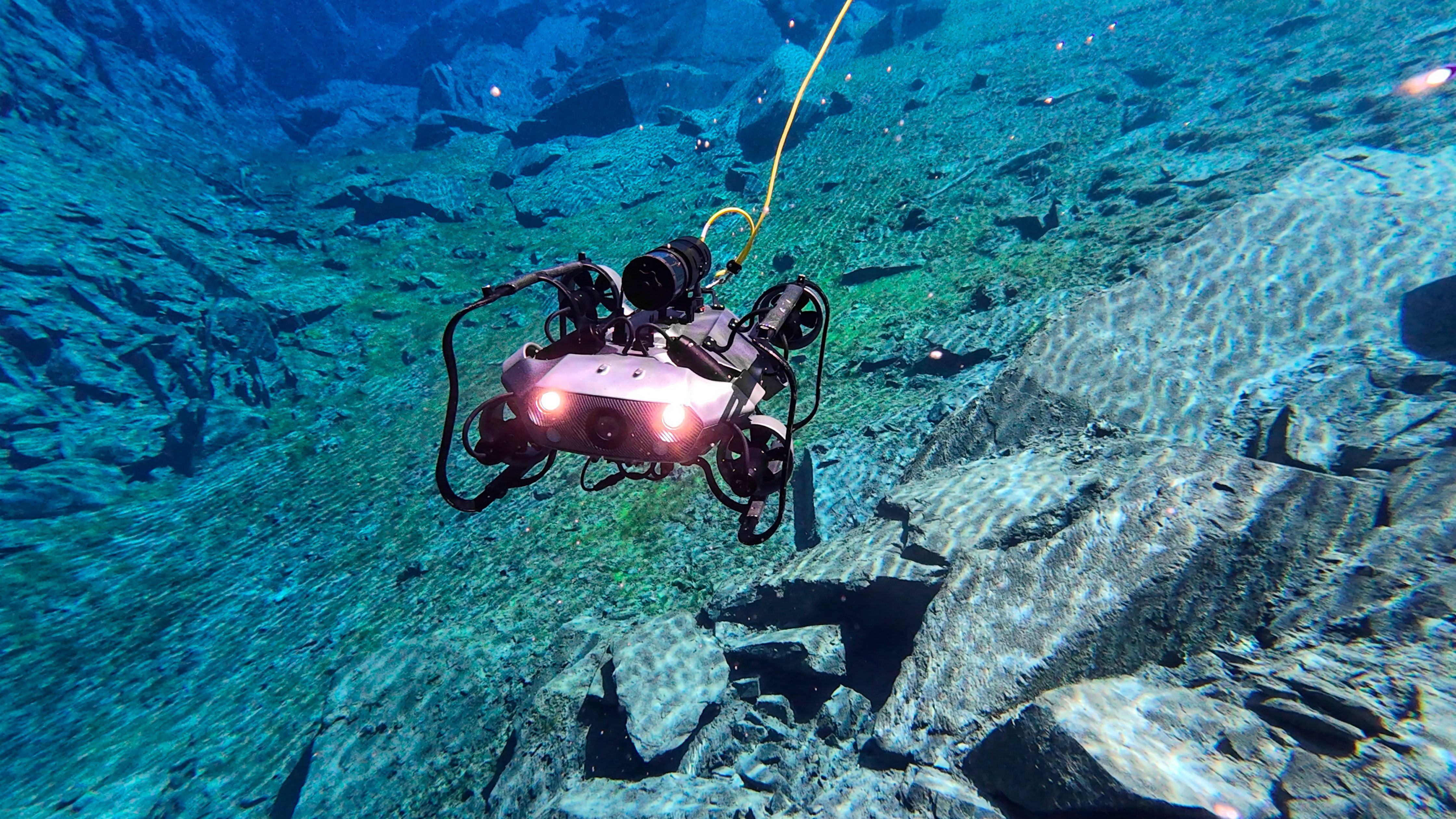

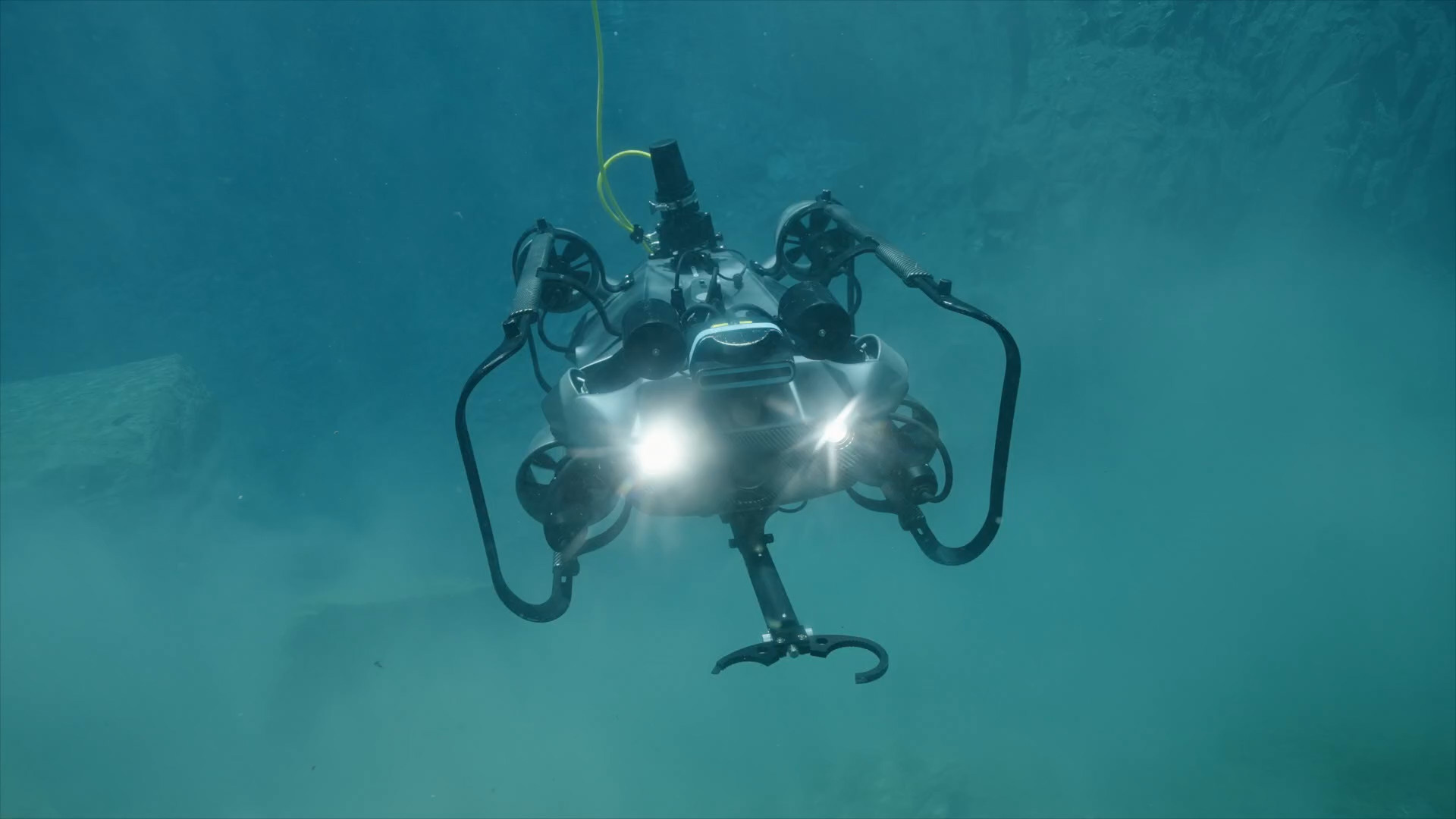

CHASING X is the world's first smart omnidirectional anti-current industrial-grade underwater robot. Equipped with a pioneering AnchorX smart omnidirectional anti-current system and an ultimate maneuverability, it counteracts currents up to 4.5 knots, instantly recognizes water flow and auto-adjusts speed, accurately control in turbulent waters, to ensure stable operations under heavy load conditions. Boasting a top speed of 4.5 knots and a maximum diving depth of 350 meters, it supports 360° all-around shooting with an electronic pan-tilt camera, ensuring stable imaging and efficient observation while combating currents. CHASING X comes with a new generation low-light camera specially designed for dark environment to capture clearer deep-sea footage, and a self-developed magnetic coupling propeller that prevents sanding and salt build-up, ensuring long-term high-intensity operational stability and reliability through its modular design. Featuring a dual power supply system, user-friendly interface, and an open SDK platform, it supports various accessories for inspection and operation in emergency rescue, hydropower, shipping & docks, aquaculture, pipeline inspection, offshore wind power, offshore winding platform, underwater archeology, scientific research, and environmental protection.

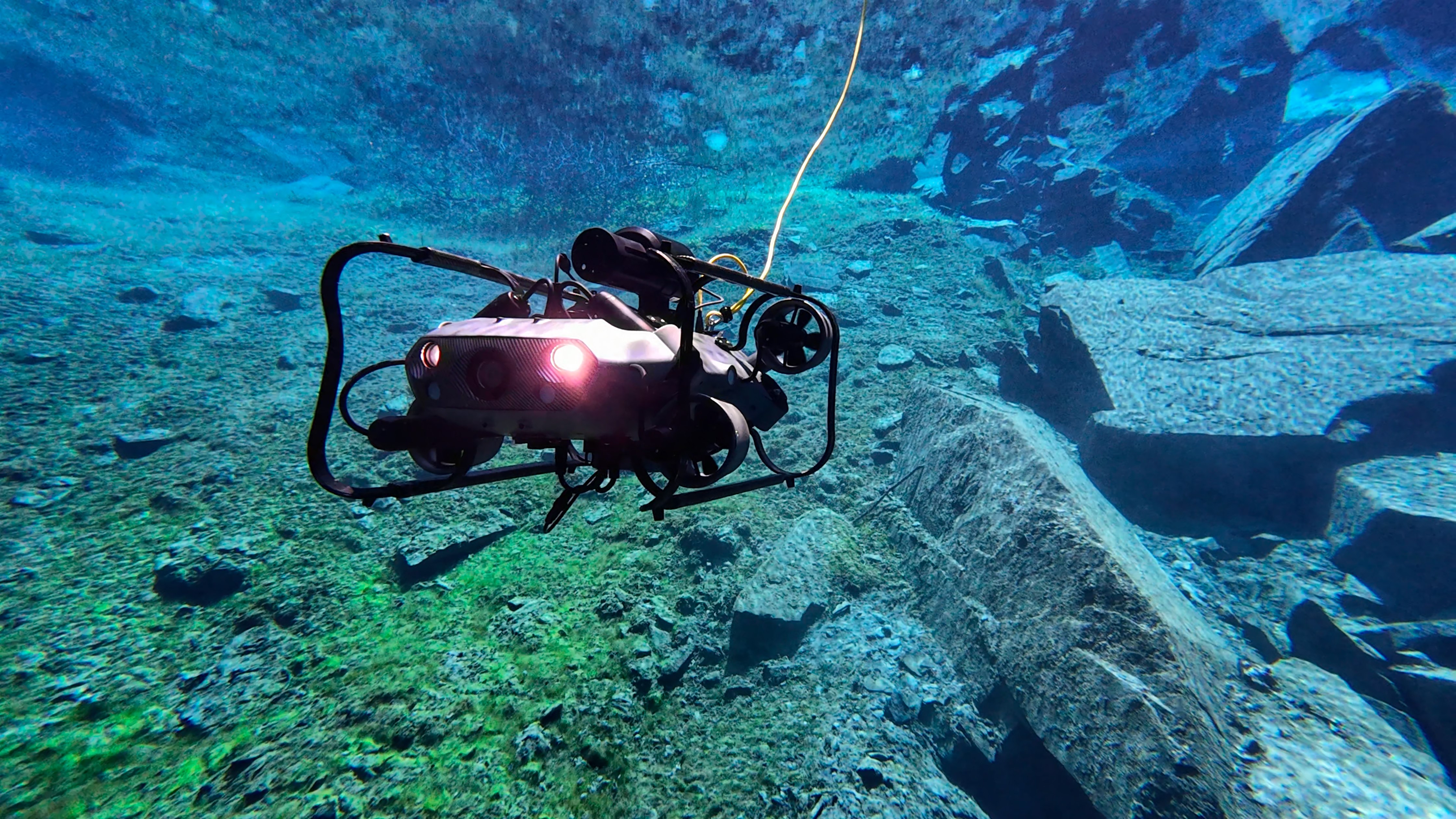

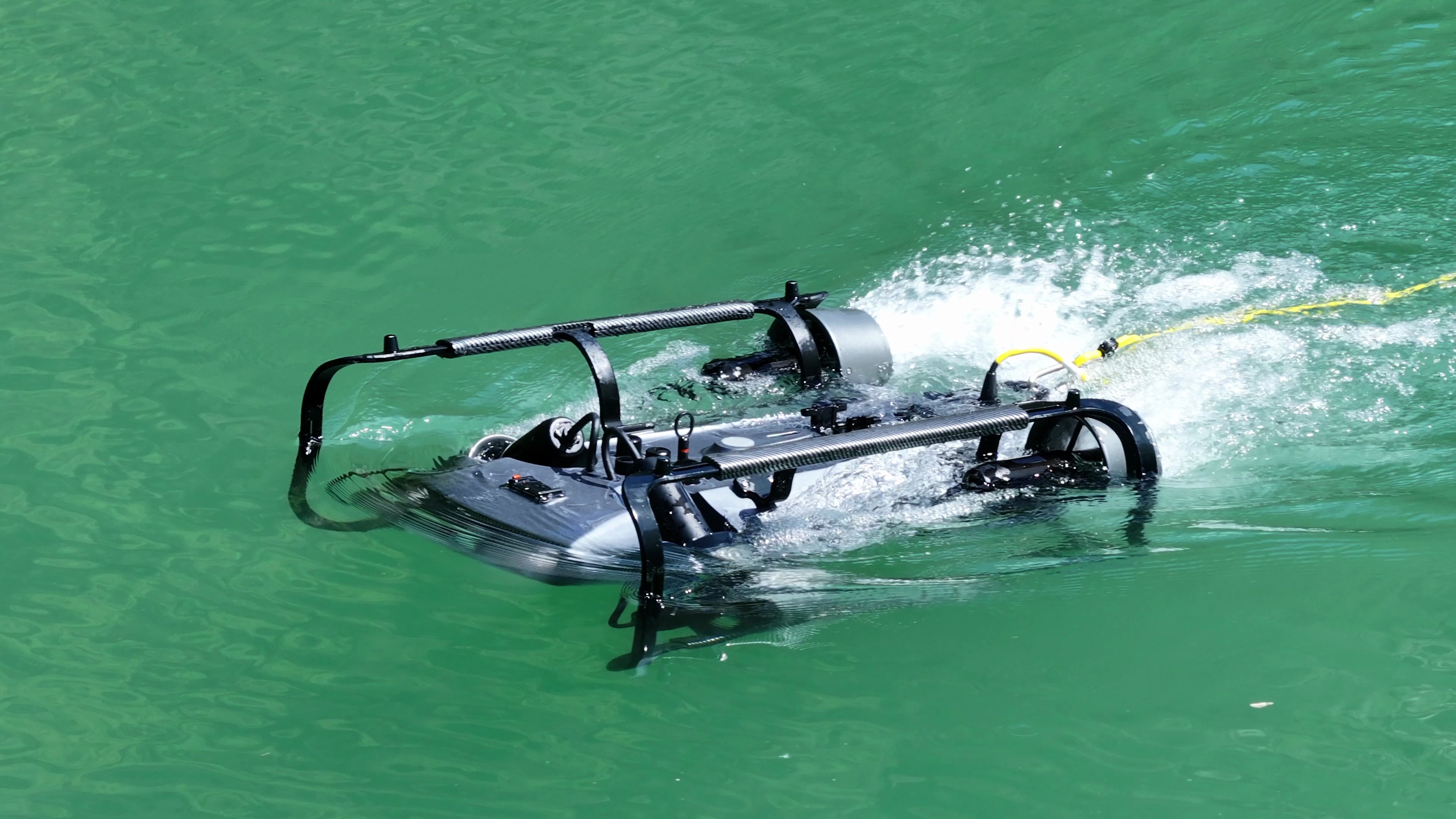

CHASING X
