Water Cooling FAD Refrigeration Dryer for High Inlet Temperature

Quantity:
SKU: 465386747X
Model: FAD Series

{{ variable.name }}

{{ value.name }}
BODA GAS
Enter Shop
Product Details

Water Cooling FAD Refrigeration Dryer for High Inlet Temperature

The water cooling FAD refrigeration dryer is engineered for applications where ambient air cooling is insufficient. By utilizing water as the cooling medium, it effectively handles higher heat loads and maintains consistent performance.

With a flow range of 1-200 Nm³/min and a dew point of ≤-23℃, this dryer protects pneumatic equipment and processes from moisture damage. The use of international brand refrigeration compressors ensures stable operation with low noise and low energy consumption.

Key Selling Points

  • Effective Cooling: Water cooling method allows for efficient heat exchange even in high ambient temperatures, ensuring reliable drying.
  • Stable Performance: International brand refrigeration compressor provides stable operation, low sound, and low energy consumption.
  • Danfoss Components: Main refrigeration components from Denmark / Danfoss guarantee quality and durability.
  • Anti-Corrosion Air Path: Plastic-sprayed air flow parts prevent secondary pollution of compressed air.
  • Thorough Drainage: Unique gas-liquid separation design avoids re-evaporation and ensures complete water removal.
  • Modular Integration: Optional RS485 / RS232, linkage interface, and dew point detection function for system integration.

Technical Specifications

Cooling MethodWater Cooling
Rated Air Treatment Flow Rate1-200 Nm³/min
Working Pressure0.6-0.8 MPa (0.8-3.0 MPa Optional)
Qualified Air Dew Point≤-23℃ (Under Ambient Pressure)
Inlet Temperature<38℃
Inlet Water Pressure0.2-0.4 MPa
Inlet Water Temperature≤32℃

Models and Options

Optional working pressure up to 3.0 MPa, RS485/RS232 communication, and dew point detection are available. Flow rate can be customized within 1-200 Nm³/min.

Materials and Structure

Constructed with carbon steel or SS304. Integrated design with compact structure ensures ease of operation, maintenance, and installation.

Applications

  • Pre-treatment for PSA nitrogen & oxygen generators, protecting molecular sieve.
  • Automated workshops, pneumatic systems, spray painting.
  • Food and beverage processing, packaging, grain conveying.
  • Pharmaceutical production and laboratory air supply.
  • Laser and plasma cutting machines.

FAQ

What cooling water specifications are required?

Inlet water pressure should be 0.2-0.4 MPa, and inlet water temperature should be ≤32℃.

Can this dryer handle high ambient temperatures?

Yes, water cooling allows effective operation in high ambient temperature conditions where air cooling may be insufficient.

What is the dew point after drying?

The qualified air dew point is ≤-23℃ under ambient pressure.

Does it use Danfoss components?

Yes, the main refrigeration components are from Denmark / Danfoss.

What is the flow rate range?

The rated air treatment flow rate is 1-200 Nm³/min, customizable.

Is there an optional higher pressure?

Yes, working pressure optional up to 3.0 MPa.

How is the drainage ensured?

An electronic drainage system is included, which prevents clogging and ensures optimal drainage.

Inquiry Information

Contact us at bodagas2002@gmail.com or WhatsApp +86 157-5515-0162 for detailed specifications and pricing.

Images

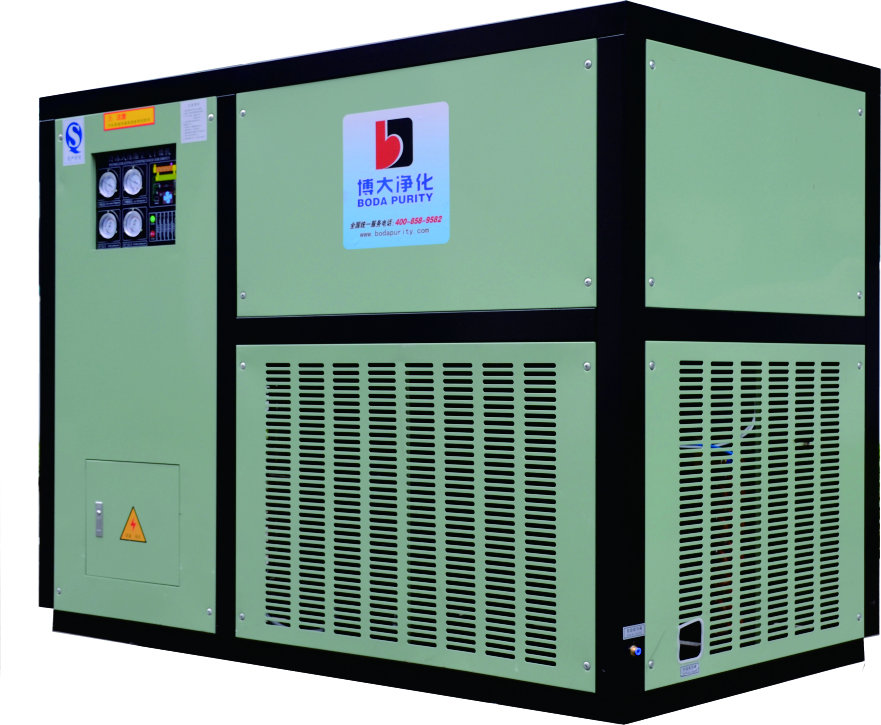

  • Water cooling FAD refrigeration dryer unit

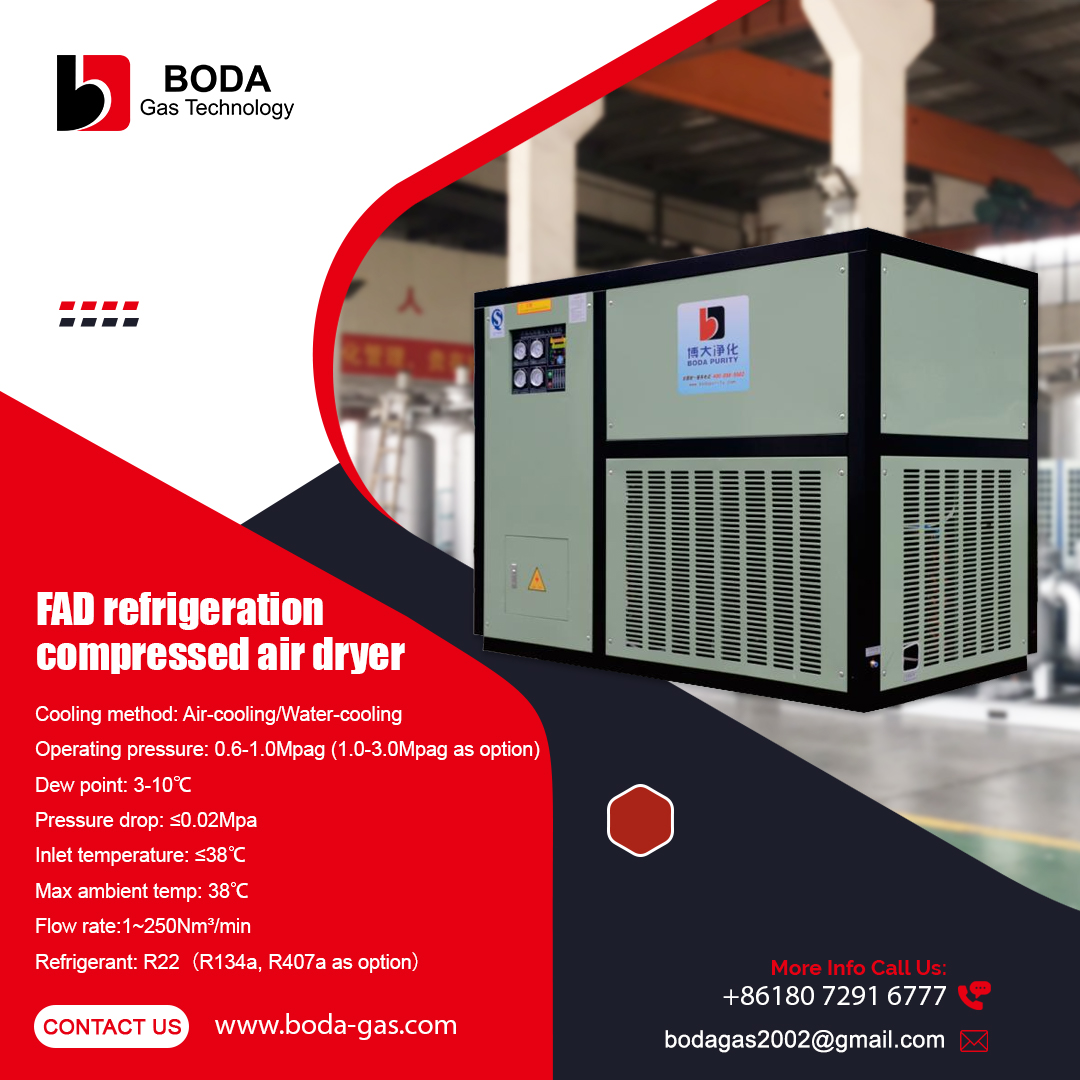

  • Water cooling FAD dryer front view
