Wear-Free Screw Press Sludge Dewatering Machine SRD-301 for Oily Sludge
URL: /wear-free-screw-press-srd-301-oily-sludge
Product Summary: The SFC SRD-301 is a wear-free multi-disc screw press designed for dewatering of sticky, oily, and low-concentration sludge (inlet consistency 0.6-5.0% S.S.). It achieves a dried sludge output of 25-100 kg/h with a water content rate of 75-85%. The screw specification is Ø270×1, and the driving motor power is 0.55 kW. Constructed from SS304, it is suitable for municipal and industrial wastewater applications. The machine is CE certified and comes with a 1 unit MOQ, FOB/CIF delivery, and 30% deposit payment terms.
Key Selling Points
- Wear-free design: Reduces screw-to-ring wear risk, extending equipment life and lowering maintenance. (Source: wear-free screw press feature)
- Energy-efficient: Only 0.55 kW driving motor, reducing operating costs. (Source: power consumption 0.55-1.1 kW)
- Handles difficult sludge: Suitable for sticky, oily, low-concentration sludge, solving common dewatering challenges. (Source: suitable sludge types)
- Compact and durable: SS304 construction ensures corrosion resistance and long service life. (Source: material: SS304)
- CE certification: Compliant with EU Machinery and EMC Directives, ensuring safety and reliability. (Source: CE certificate M.2025.206.C130494)
Technical Specifications
| Specification | Value |
|---|
| Inlet consistency | S.S. 0.6–5.0% |
| Dried sludge output | 25–900 kg/h (depending on model) |
| Water content rate | 75–85% |
| Screw specification | Ø270×1 (SRD-301) |
| Driving motor power | 0.55 kW |
| Material | SS304 |
| Certifications | CE, ISO9001, ISO14001, ISO45001 |
Models and Options
The SRD series includes multiple models (SRD-301 to SRD-404) with varying screw configurations and capacities. The SRD-301 is the entry model with a single screw (Ø270×1) and a dried sludge output capacity at the lower end of the range. Other models such as SRD-302, SRD-303, and SRD-304 offer additional screws and higher throughput. For specific sludge types and capacity requirements, please consult our sales team.
Materials and Structure
The machine is constructed from SS304, providing excellent corrosion resistance. The wear-free multi-disc design minimizes wear between the screw and rings, ensuring stable conveying and dewatering even with oily or abrasive sludge. The structure is designed for continuous automatic operation, integrating with sludge feed pumps, flocculant dosing systems, and screw conveyors.
Applications
This model is ideal for industrial wastewater treatment, food processing wastewater, oily sludge treatment, and high-inorganic sludge treatment. It is also suitable for municipal wastewater treatment and decentralized sludge treatment projects. The SRD-301's ability to handle difficult sludge makes it a versatile choice for various industries.
Customization
SFC offers customization options based on sludge characteristics and site requirements. Options include explosion-proof design, corrosion-resistant materials, PLC control systems, and integration with existing sludge treatment lines. Please provide your sludge analysis and project details for a tailored solution.
Frequently Asked Questions
Q1: What sludge types can the SRD-301 handle?
A1: The SRD-301 is designed for sticky, oily, low-concentration, and high-inorganic-content sludge, making it suitable for municipal and industrial applications.
Q2: What is the power consumption?
A2: The driving motor is 0.55 kW, which is highly energy-efficient for the dewatering capacity offered.
Q3: What certifications does the machine have?
A3: It is CE certified and complies with ISO9001, ISO14001, and ISO45001 standards.
Q4: What is the MOQ?
A4: The minimum order quantity is 1 unit.
Q5: What are the available delivery and payment terms?
A5: Delivery is FOB/CIF, and payment is 30% deposit in advance, 70% balance before shipment.
Q6: Can the machine be customized for specific sludge types?
A6: Yes, we can adjust the design and materials based on your sludge characteristics and project requirements.
Inquiry Information
For more details or a quotation, please contact our sales team:
- Email: sales@fuchanjx.com
- Phone/WhatsApp: +86 138-1673-2007
- Address: Room 1201, 1122 Xinjinqiao Rd, Pudong New District, Shanghai, PRC China
Image Filename and Alt Suggestions

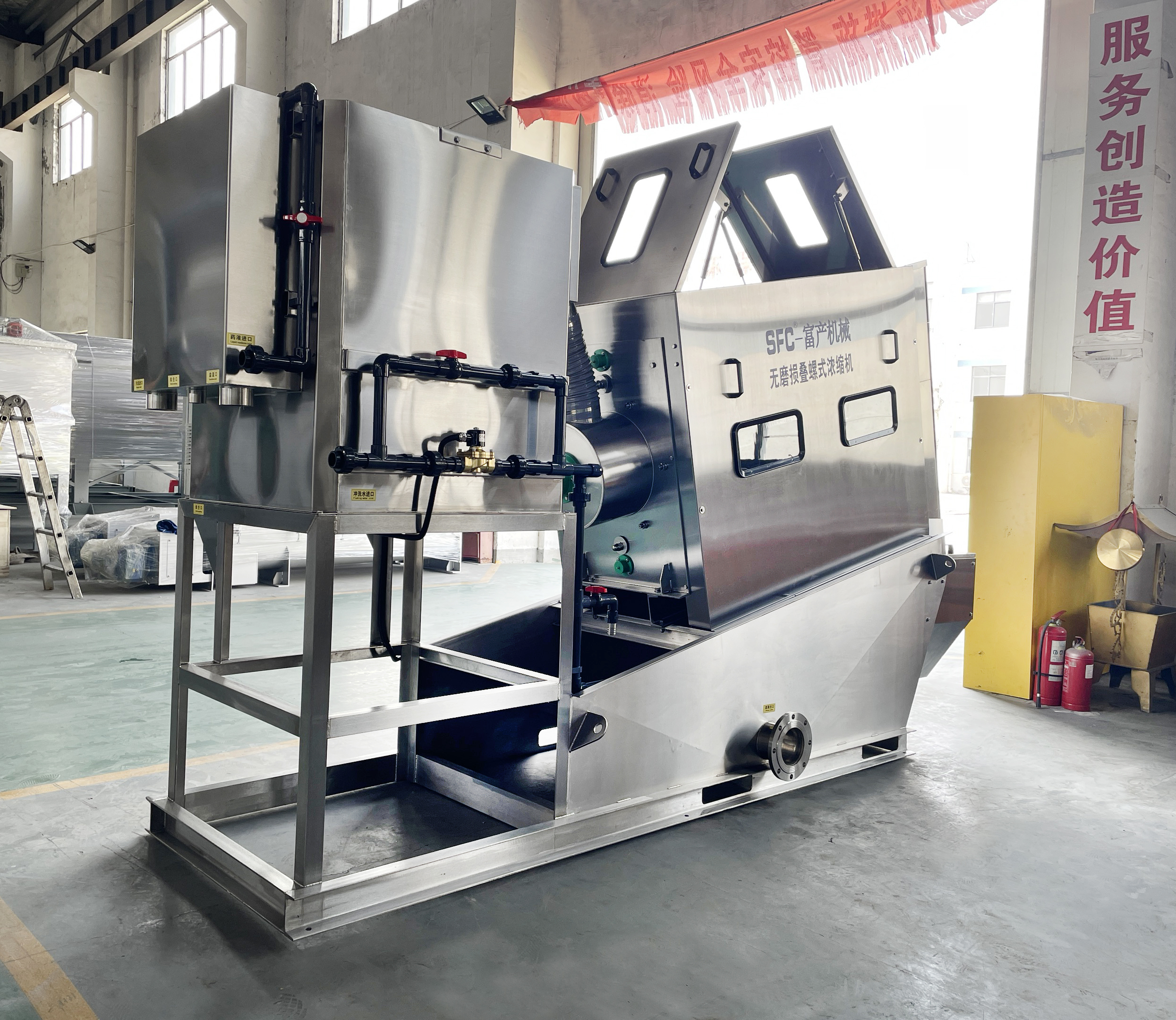

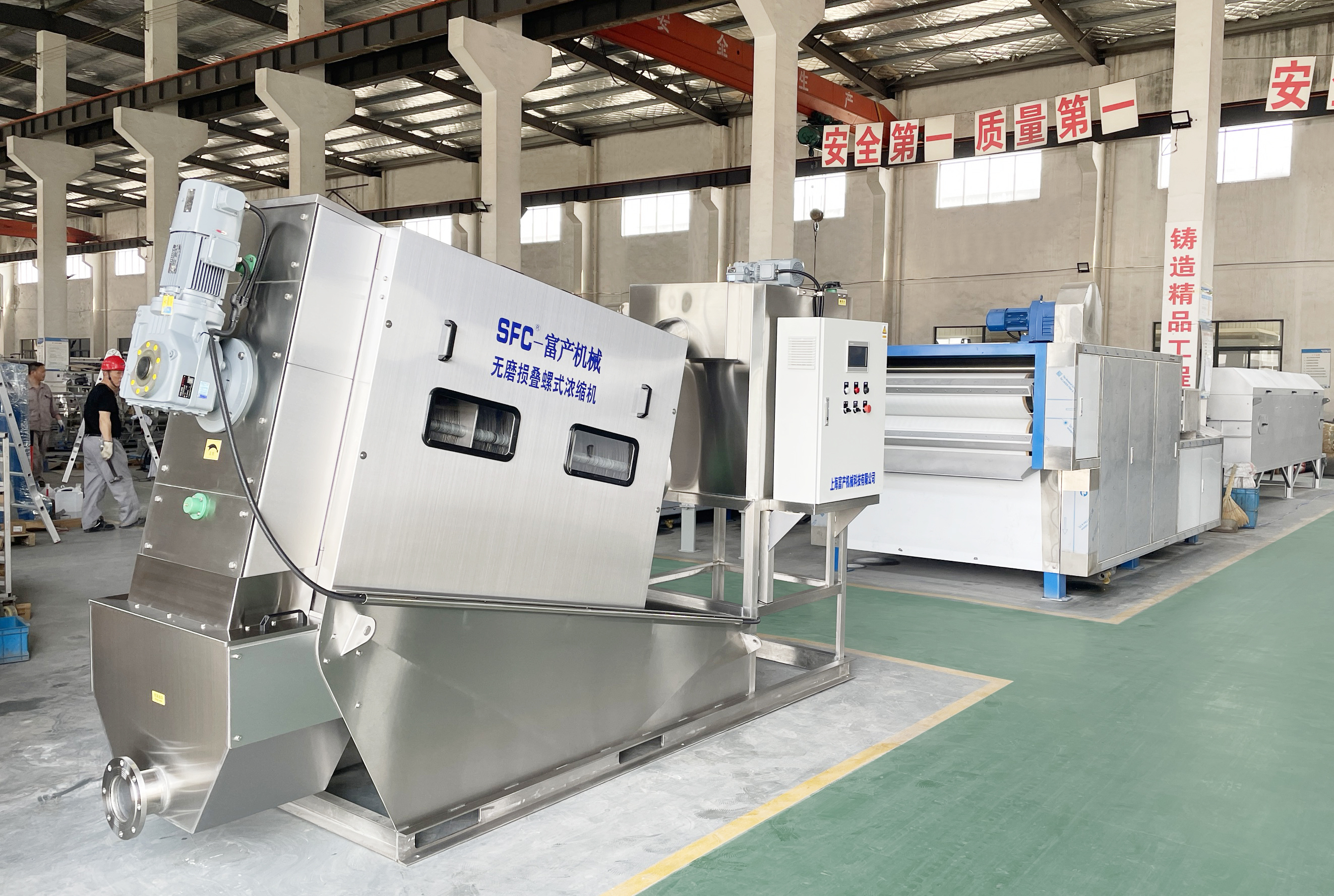

Main product images should be named descriptively, e.g., wear-free-screw-press-srd-301-oily-sludge-1.png. Suggested alt text: "Wear-free multi-disc screw press SRD-301 for oily sludge - front view" and "Wear-free screw press SRD-301 side view".
