Wire Drawing Machine

Name: "Wire Drawing Machine"
Rating: 5 (46 reviews)

SKU: 7176615292

Model: WDF400-7D

Jiangsu Listrong Mechanical & Electrical Co., Ltd.

Enter Shop

Product Details

Product Specification

Type	Rod Breakdown Machine	Model	WDF400-7D
Params	1. Max Inlet: Φ8 mm 2. Outlet: φ3 mm 3. Diameter of capstan: 400 mm 4. Max. number of dies: 7 5. Mechanical elongation rate: 8%–46% 6. Max speed: 16 m/min 7. Main drawing motor power: 37KW3, 22KW3, 37KW*1 (AC) 8. Max.OD of payoff coil: 2000 mm 9. Spooler motor power: 15KW (AC) 10. Total main power of unit: 229 KW	Material	Steel
Applicable Industry	Wire and cable manufacturing: Large-scale stretching and annealing of copper or aluminum rods used in power cables and building wiring. Efficient cable workshops have generally replaced old models with motorized designs.

Feature

The main unit of the WDF400-7D distributor type 7-DIE direct drive controllable slip copper large wire drawing machine is driven by a direct drive servo motor with a different number of poles for each drum. The drive motor shaft is the wire drawing drum shaft, eliminating the cumbersome design and installation in the middle. The whole machine has no gear reduction box. The brushed drum is treated with tungsten carbide spraying, which ensures good wear resistance and a long service life. The wire drawing part is cooled by immersion, which enables the wire drawing die and copper wire to receive the best cooling and lubrication, effectively extending the service life of the wire drawing die and the drum wheel. The machine adopts drop coiler for wire winding, featuring non-stop frame changing function and ensuring good production continuity. The machine adopts PLC coordinated control and variable frequency speed regulation control, featuring high control accuracy, fast tracking speed, and smooth operation. The machine speed ratio can be adjusted in real time and arbitrarily according to the material and on-site conditions to achieve the ideal wire drawing effect.

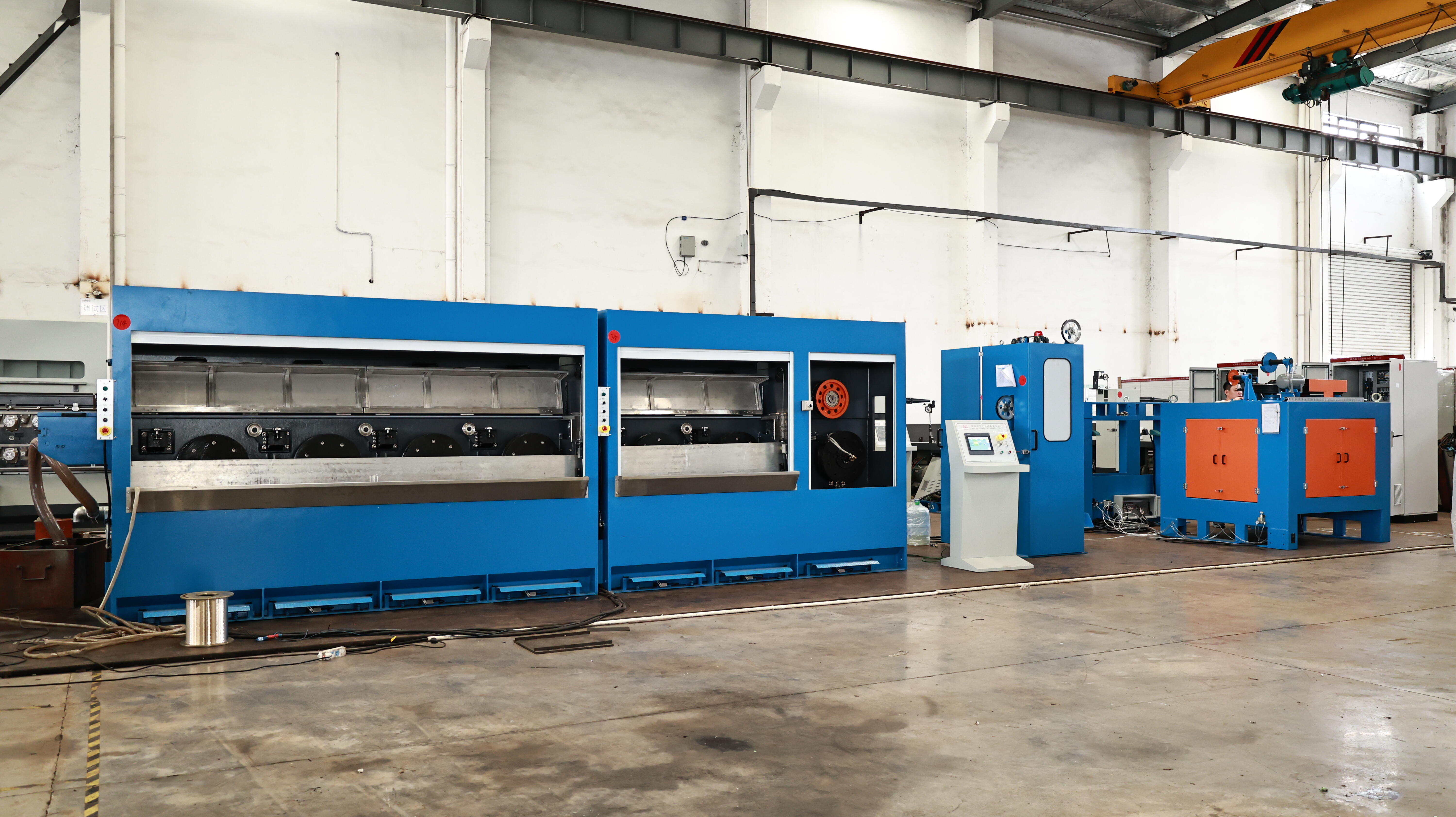

WDF400-7D
