Wire-to-Wire connector

Quantity:
SKU: 5288627525
Model: GA01

{{ variable.name }}

{{ value.name }}

Product Specification

TypeAutomotive-grade waterproof connectorModelGA01
ParamsCenterline (Pitch) :2.20mm Voltage Rating:250V AC/DC Contact Current Rating:20AWG:5.0Amp / PIN 22AWG:4.0Amp / PIN 24AWG:3.5Amp / PIN 26AWG:3.0Amp / PIN Dielectric Withstanding Voltage:650V AC Lasts 1 minute Contact Resistance:30mΩ Max Insulation Resistance:1000MΩ Min Operating Temperature:-40ºC to +105º Cable Exit Angle:180º Degree of Protection:IP67 Applicable wire:AWG20~AWG26MaterialHousing Material:PBT(Black) Contact Material:Phosphor Bronze Seal Material:Silicone(Reddish brown)
Applicable IndustryConstruction machinery, Automobile, Road lighting, Robotics

Feature

IP67 Waterproof Protection Secure Locking Mechanism Compact Space-Saving Design Reliable Contact Performance Flexible Configuration Options

Greenconn GA01 Automotive-grade waterproof connectors

Greenconn GA01 Automotive-grade waterproof connectors

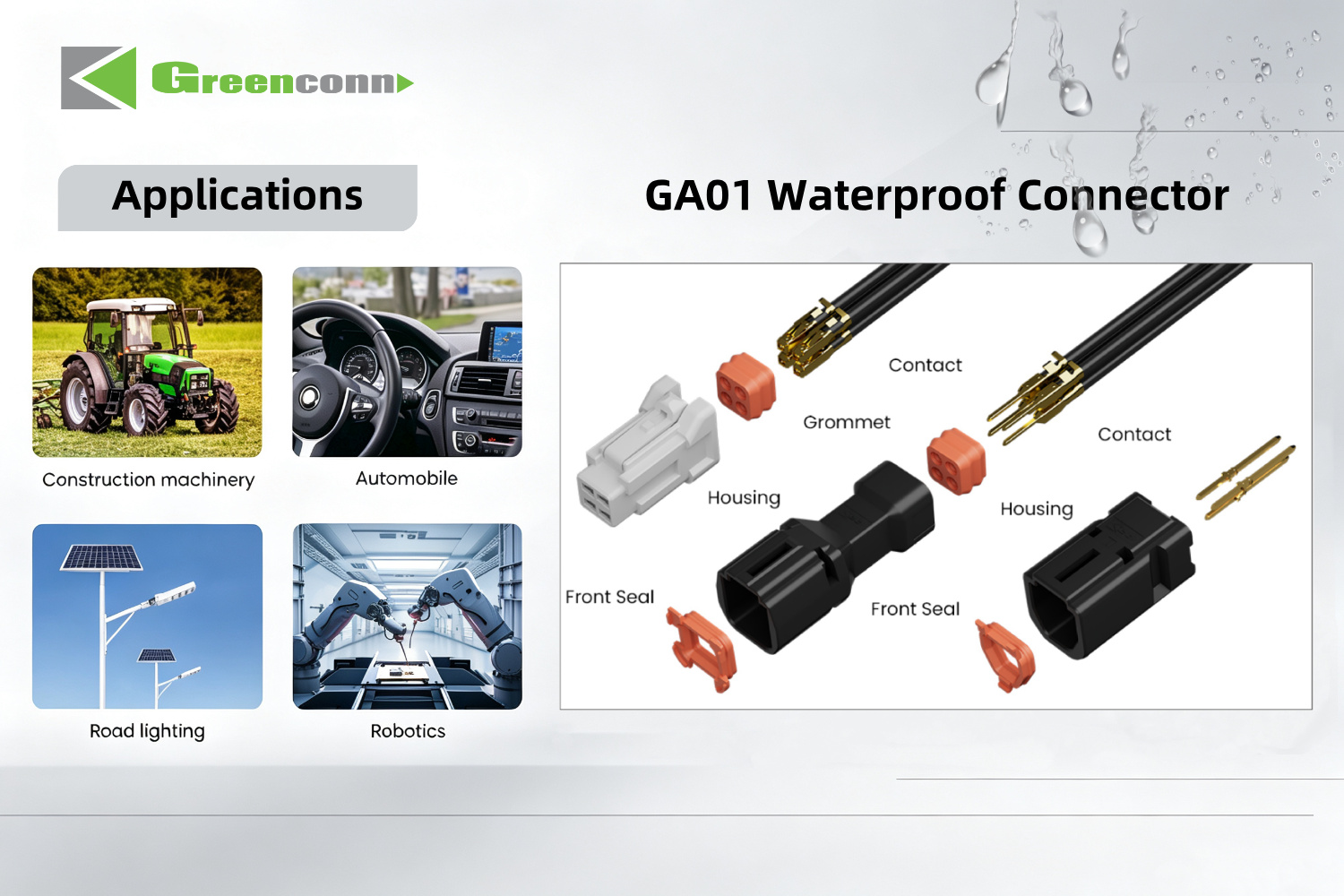

Greenconn GA01 waterproof connector  structure and application

Greenconn GA01 waterproof connector structure and application
