ode Double output Engine Pump

Quantity:
SKU: 0808046152
Model: MDP220

{{ variable.name }}

{{ value.name }}

Product Specification

ModelMDP220ParamsRated working pressure: ≥ 72 Mpa, equipped with double-flow function for pressure boosting 4-stroke engine power: 2.2 KW Rated working speed: ≥ 3600 r/min; High pressure / high speed mode flow: 0.84 / 1.65 L/min Low pressure / high speed mode flow: 3.5 / 6.95 L/min; Hydraulic oil tank volume: ≥ 4.5 L; Weight: ≤ 23 kg (including hydraulic oil and engine oil) Overall Dimensions: 395 x 315 x 483mm
Applicable IndustryVehicle Crash Rescue

Feature

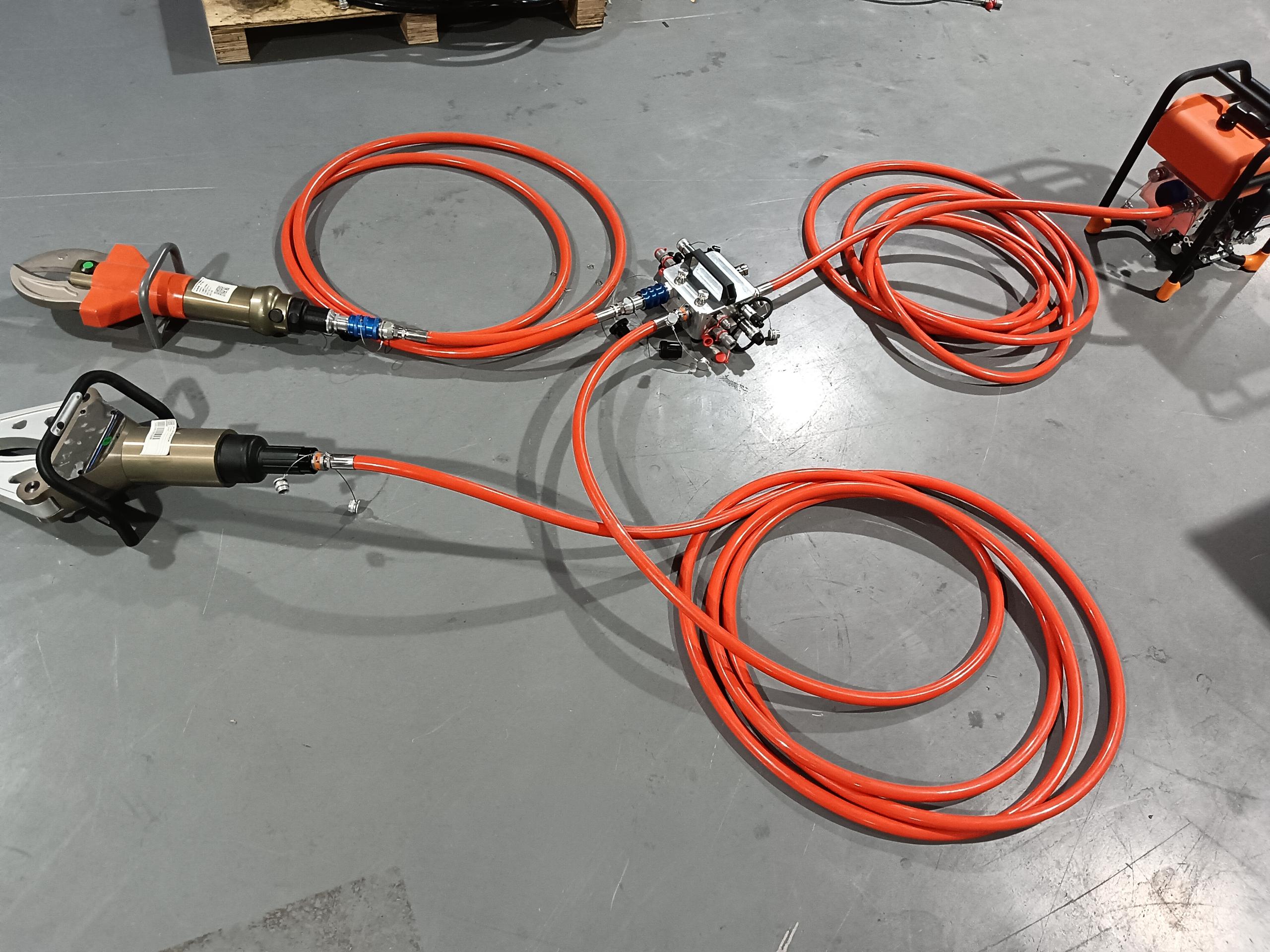

Adopting flat-axis single-port design, the output interface features easy cleaning, pressure-resistant hot plugging and one-touch quick connection. It supports simultaneous connection and operation of two sets of tools. Built-in automatic high and low pressure regulation function adapts to different rescue working conditions intelligently.

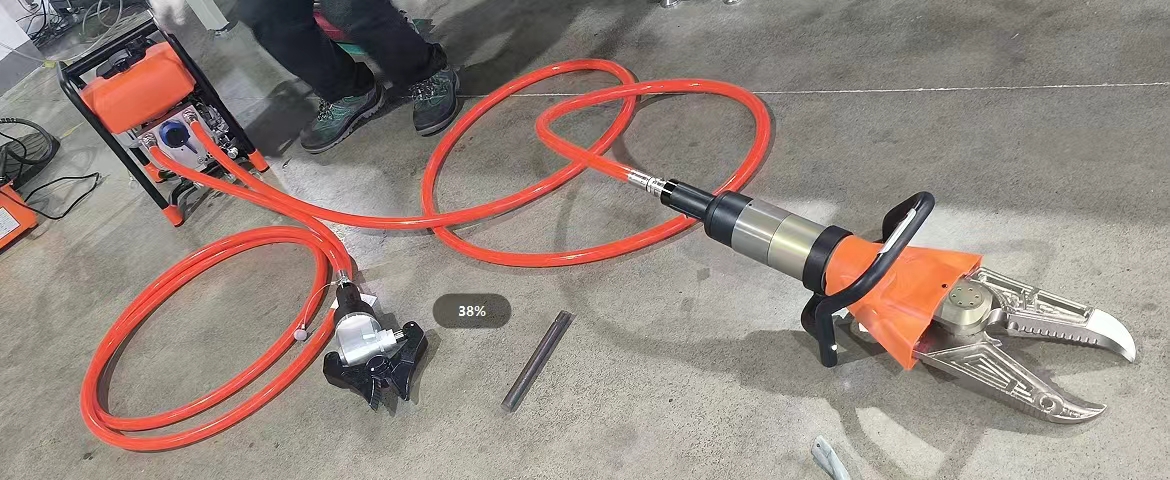

ode This dual-output gasoline hydraulic power pump is specially designed to support fire rescue hydraulic breaching tools, providing stable power supply for various emergency rescue operations.
