pulp molding sampling production line

Name: "pulp molding sampling production line"
Rating: 5 (61 reviews)

SKU: 8218250395

Model: ZAMS-6047

HANSON PULP MOLDING

Enter Shop

Product Details

Product Specification

Type	fully automatic integrated pulp molding prototyping and small-batch production line	Model	ZAMS-6047
Params	machine dimensions: L7,500 × W2,550 × H2,810 mm mold platen size: 600 × 470 mm machine weight: 7.3 tons integrated processes: pulping, refining, slurry preparation, slurry feeding, forming and hot pressing slurry feeding: circulating slurry feeding with slurry return pulp suction method: reciprocating pulp suction drying method: in-mold drying heating method: electric heating forming drive: electric cylinder forming pressure: 2 tons hot-pressing drive: hydraulic cylinder hot-pressing pressure: 13 tons mold transfer: servo motor, lead screw and electric cylinder trimming function: not included maximum product height: 120 mm maximum product weight per mold: 200 g at 0.3% slurry concentration rated power: 82 kW heating power: 26.4 kW voltage and frequency: AC 380 V / 50 Hz safety protection: protective doors and safety light curtains	Material	machine frame: Q235-A carbon steel pulp tank and slurry piping: SUS304 stainless steel mold: national-standard 6061 aluminum alloy
Applicable Industry	pulp molding product development and prototyping molded fiber packaging research and development small-batch molded fiber packaging production packaging development for mobile phones, cosmetics, digital products, daily-use products and handicrafts universities, research institutes, packaging companies and material laboratories

Feature

Large 950 × 850 mm platen supports efficient layouts for industrial packaging products. Maximum product height of 120 mm and mold weight of 900 g support larger products. Precise self-circulating slurry feeding and dynamic replenishment reduce weight variation. The slurry system helps prevent slurry deterioration and contamination. Multiple small mold combinations on a large platen can reduce mold investment. Integrates pulping, refining, slurry preparation, forming and hot pressing in one machine. A complete pulp molding process is installed within a compact footprint. The 600 × 470 mm platen reduces prototype mold cost and mold-processing time. Suitable for product prototyping, process verification and small-batch production. Supports difficult industrial packaging products while remaining compatible with tableware products. One-button pulping, automatic cleaning and automatic sewage discharge simplify operation. Forming position, pressure and temperature can be adjusted accurately. Modular configuration balances functionality and investment cost. Lower initial investment helps companies enter the pulp molding industry more easily.

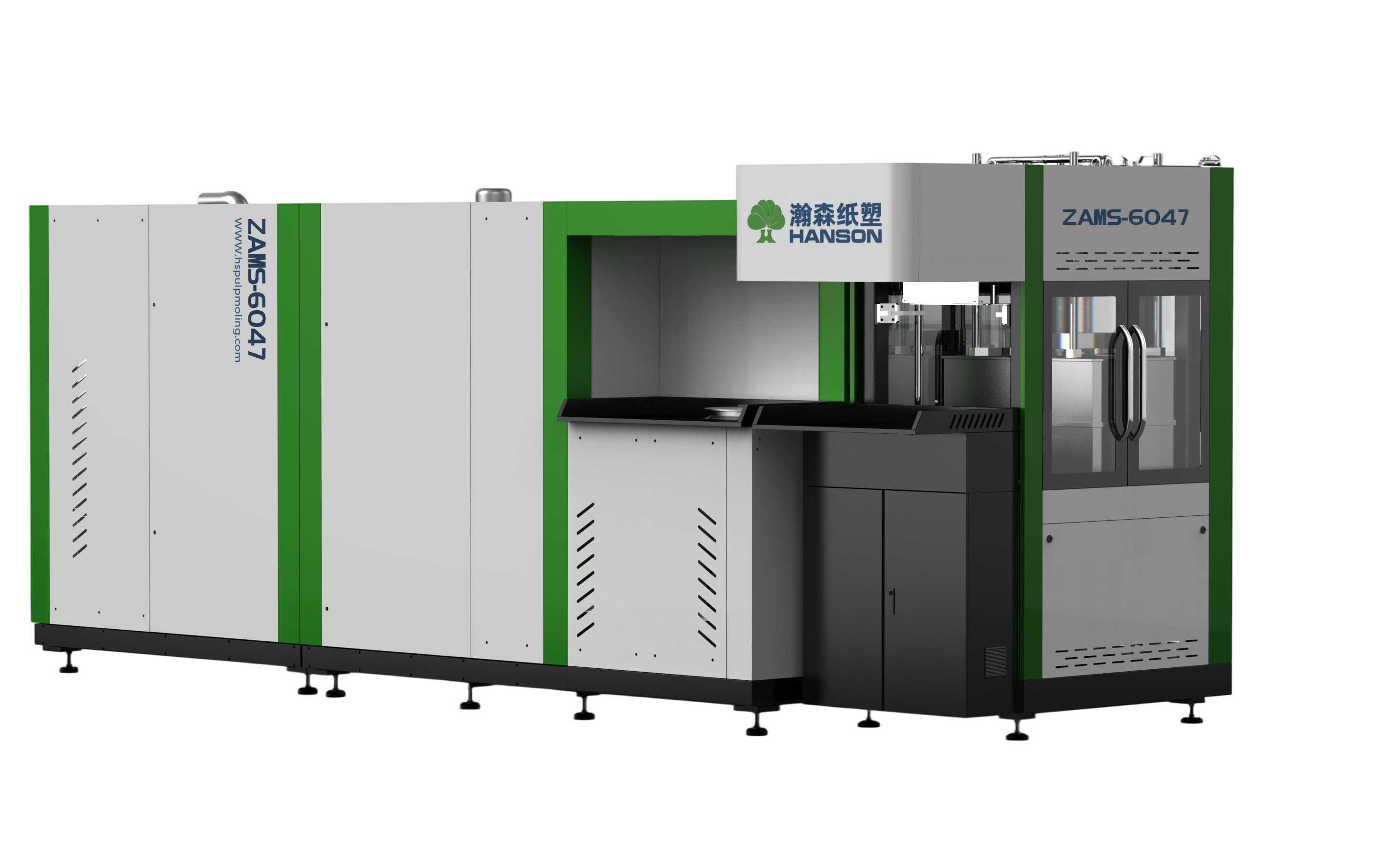

ZAMS-6047 Pulp Molding Sampling Production Line
